Four Vertical Wire Display Tiers
Four merchandise positions are arranged one above another within the slim upright frame. The open front allows access to the intended bottled products.
The HEDA Wire Display Fixtures for Bottled Goods feature four vertically arranged wire display trays, a slim black metal frame, a printed brand side panel and an elevated top signage support. The open wire construction creates separate display positions for suitably sized bottled merchandise, while the upright format brings product presentation and brand communication together in one freestanding retail fixture. Model No.00191 can be customized according to the intended bottle range and retail project.
GET QUOTE NOW
Four vertically arranged wire display trays.
Metal wire tray floors and retaining edges.
Printed vertical artwork shown on the reference model.
Raised metal support above the bottle display.

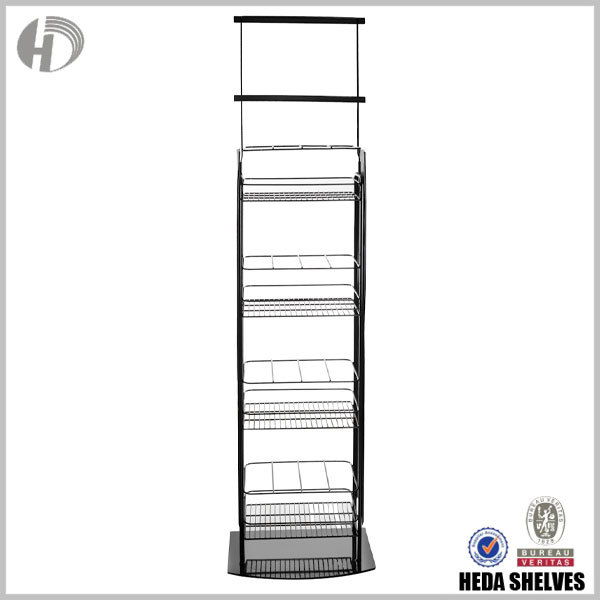

The front-facing factory photograph reveals the arrangement of the four open wire trays, the retaining rails, the slim side supports, the upper sign frame and the flat base. This is the actual No.00191 structure, not a generic wire basket or wine rack.
Four merchandise positions are arranged one above another within the slim upright frame. The open front allows access to the intended bottled products.
Each tier uses a metal wire support surface rather than a solid steel shelf panel. Bottle dimensions and contact points should be checked for stable placement.
Raised wire members define the edges of the display trays. Their actual height and spacing must suit the bottle size and approved arrangement.
Narrow metal supports hold the trays vertically within an open structure. The final frame construction and load requirements must be confirmed for production.
The top includes an elevated frame with horizontal bars. The bottom uses a flat floor-support base, without visible caster wheels in the original photographs.
The original factory sample includes vertical printed ALTAR artwork on one side of the display. This shows how a bottle merchandising fixture can combine physical product presentation with customer-specific promotional graphics.
A dedicated side graphic provides an area for visual identity, product storytelling and approved promotional artwork. The actual sample uses ALTAR-branded graphics.

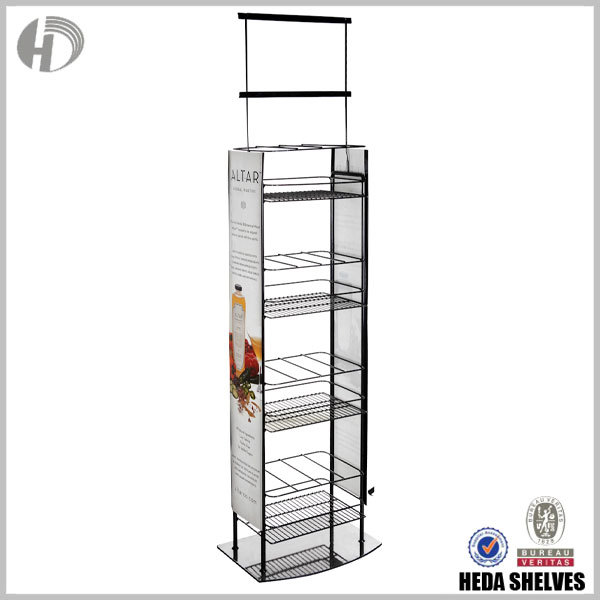

The angled factory image shows a printed panel alongside the display trays. Customer-specific artwork, dimensions and the printing method can be reviewed for the final project.
Two horizontal black bars are visible above the merchandise display area. The original photographs do not show a completed graphic panel or illuminated light box installed there. Signage design and inclusion should be confirmed.
The photographed structure uses a black metal frame, wire trays and floor base. This creates a consistent supporting appearance around the custom side graphic.
Brands and retailers can provide their own approved logo and graphic requirements. Panel dimensions, print layout and attachment details should match the approved fixture design.
A display designed for bottled products must consider more than the shelf count. Bottle dimensions, product weight, packaging stability and the merchandising quantity all influence the appropriate wire tray configuration.
Supply the bottle height, diameter or cross-section, base dimensions and cap profile. These details help assess tray depth, vertical clearance and suitable product placement. Bottles must sit securely on the approved wire support surface.
Raised front wire rails define the product-facing edges of the trays. Their height and geometry should suit the actual bottles and expected customer interaction. The pictured rack should not be assumed to include automatic gravity feeding.
Define the number of bottles per tier and the filled weight of each unit. The combined load determines the required wire specification, supporting frame and base stability. Capacity must be verified for the selected design.
The vertical wire display concept may be considered for different categories of packaged bottles. The exact application depends on product dimensions, material compatibility and the approved load specification.
Suitable sealed beverages can be evaluated for organized display across multiple wire tray levels. Bottle shape, filled weight and shelf clearance must be reviewed for a stable merchandising arrangement.
The format can be discussed for compatible bottled sauces, dressings, condiments and specialty food products. Product hygiene, packaging stability and suitable shelf support should be considered.
Some bottled shampoos, lotions and personal care products may be suitable for a customized wire display format. Tray clearance, package shape and intended stocking quantity require confirmation.
The branded side panel and elevated top structure make the design relevant to promotional programs for bottled products. Graphic production, sign inclusion and final fixture dimensions should be agreed separately.
HEDA SHELVES offers customized wire display fixtures for retail merchandising projects. The original No.00191 provides a reference for a slim black metal bottle display with four wire trays and a branded side panel.
Share the desired rack height, width and depth, as well as the available retail floor area. The top sign frame and floor-support base must be included when defining the overall footprint.
Provide the actual bottle dimensions, filled weights, planned quantities and preferred product grouping. Wire tray dimensions, tier spacing and retaining edges can be reviewed according to these requirements.
The original rack uses wire display trays supported by a slim metal frame. Wire thickness, connection design, loading capacity and base stability must follow the approved technical specification.
Customer-specific brand graphics can be discussed using the original ALTAR-branded sample as a visual reference. Provide your logo artwork, panel dimensions and desired sign arrangement for project evaluation.
The photographed fixture has a black metal finish. Alternative colors, surface treatments and packing arrangements may be reviewed according to the order requirements. Provide the quantity, destination and expected delivery schedule.
This reference configuration combines four black wire merchandise trays with an upright metal frame, branded side graphics, an extended upper sign structure and a flat base. HEDA lists custom sizes, shapes, materials, colors and finishes for retail display projects.
The official listing does not publish fixed dimensions, bottle capacity per tray, metal wire diameter or verified shelf load ratings. These values, together with bottle compatibility, base stability and final branding requirements, should be confirmed in the approved project drawings.
| Product Number | No.00191 |
|---|---|
| Product Name | Wire Display Fixtures for Bottled Goods |
| Display Format | Freestanding Upright Bottle Merchandise Display |
| Main Structure | Black Metal Supporting Frame |
| Display Levels | Four Wire Tray Levels in the Photographed Model |
| Tray Construction | Open Metal Wire Support Surfaces with Retaining Edges |
| Side Branding | Printed ALTAR Side Graphic in the Original Reference Sample Customer artwork to be confirmed for new orders. |
| Upper Signage | Extended Metal Sign Support Frame Completed sign panel not shown in the original photographs. |
| Base | Flat Black Floor-Support Plate |
| Photographed Finish | Black Metal with Printed Side Panel |
| Dimensions | Customizable; Final Size to Be Confirmed |
| Bottle Compatibility | Subject to Bottle Diameter, Height, Base Geometry and Weight |
| Display Capacity | To Be Confirmed Based on Bottle Size and Tray Configuration |
| Load Capacity | To Be Confirmed According to Final Wire and Frame Design |
| OEM Options | Shape, Size, Material, Color, Finish and Branding |
| Packing | Subject to Approved Fixture Design and Order Requirements |
A useful quotation starts with the bottled product, the desired merchandise arrangement and the available display location. Share the details below so the fixture can be reviewed around your actual retail needs.
Provide bottle photographs, dimensions, filled weight, packaging details and quantity per display tier.
Share the preferred height, width and depth, available floor area and intended display position.
Supply the logo and graphic artwork, preferred color, side-panel requirements and any upper sign design.
Confirm the estimated number of stands, shipping destination, packing preferences and expected project schedule.
Tell us which bottled products you need to display, their dimensions and weights, your preferred rack size, branding requirements and estimated quantity. HEDA SHELVES can review your project and discuss a suitable No.00191 wire display fixture for your retail merchandising program.
