Wire Decking for Pallet Rack

No.WD01
We stock wire decking for pallet racking in different sizes and multiple styles. The most popular style is wire decking with step beam.
Download
View all downloads
  • Description

  • FAQ

HEDA SHELVES / NO.WD01

Wire Decking.
Engineered Support
for Pallet Racks.

HEDA SHELVES Wire Decking for Pallet Rack is an open-grid steel decking solution for compatible warehouse racking systems. The photographed design combines welded wire mesh with formed steel support channels, providing a configurable storage surface across the rack beam arrangement.

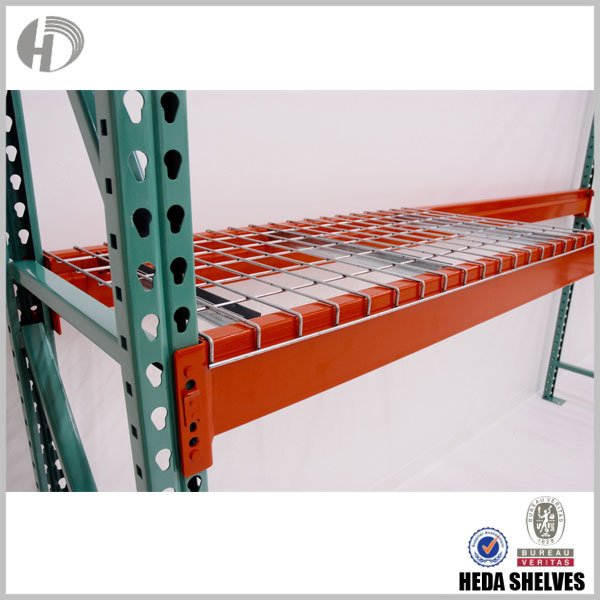

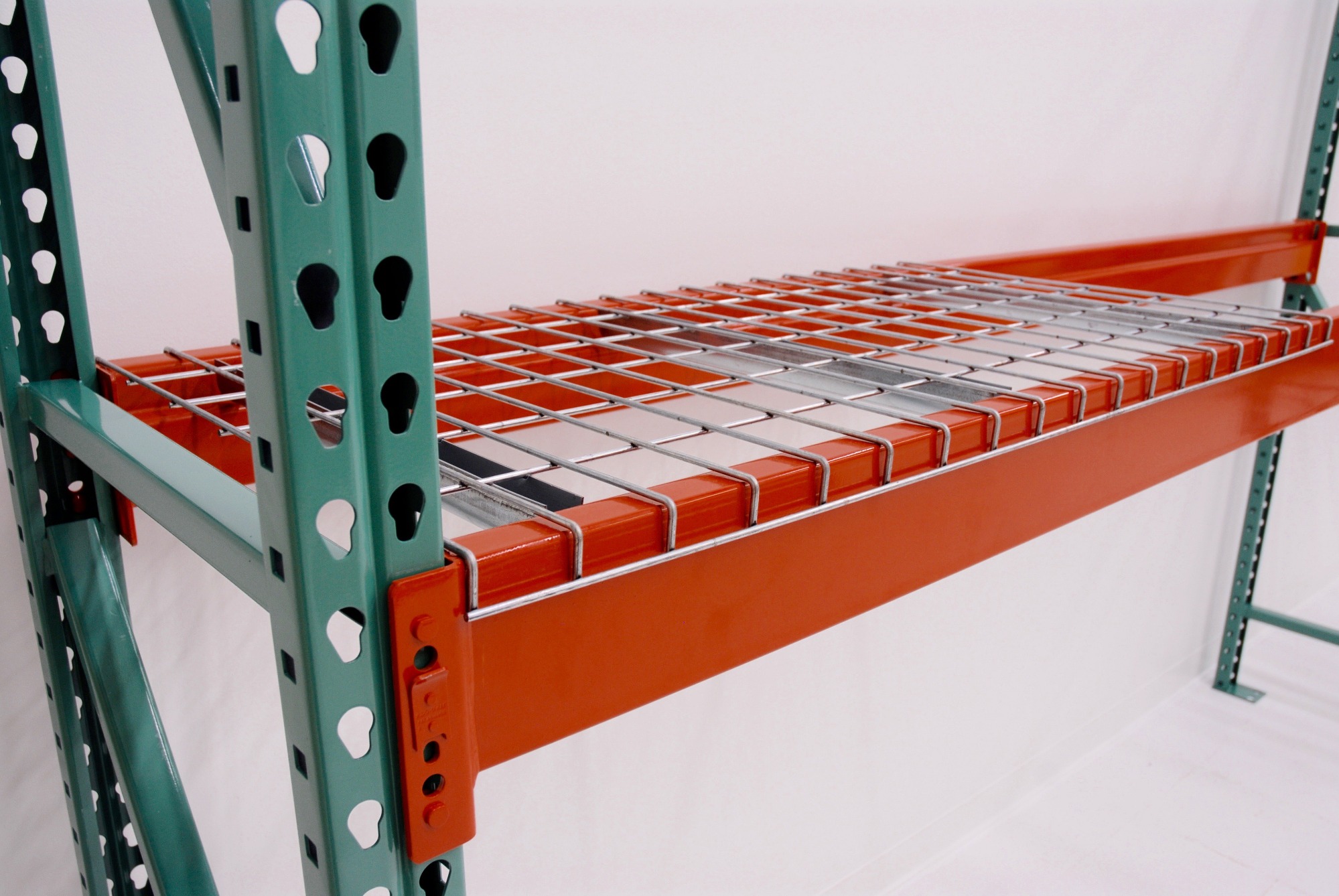

Original HEDA WD01 silver wire mesh decking installed over orange steel pallet rack step beams, with green perforated upright frames
Actual Wire Decking Installation Original HEDA product photograph
INDUSTRIAL RACK ACCESSORY

A Mesh Surface with Structural Support.

This product is a wire decking component for pallet racking, not a complete pallet rack or a solid steel shelf panel.

01 Open welded steel wire grid
02 Formed steel support channels
03 Visible installation on step-style beams
04 Custom sizing and style selection
BENEFIT / 01

Open-Grid Visibility

The mesh surface allows light to pass between the wires, supporting better visibility through rack levels compared with an opaque panel.

BENEFIT / 02

Additional Load Support

Correctly specified decking can provide additional support across the beam span for suitable loads, according to its rated capacity.

BENEFIT / 03

Open Surface Design

The open grid permits airflow and reduces broad horizontal surfaces where loose dust may collect. Routine inspection and cleaning remain necessary.

Original HEDA WD01 separate galvanized-look wire mesh decking panel showing welded wire grid and three longitudinal formed steel underside support channels
Original Individual Wire Decking Panel

The photographed panel shows three underside support channels. Channel quantity may vary by deck configuration.

Real Product Construction

Look Beneath the Wire Grid.

The support channels underneath the mesh are essential components of the photographed deck. They extend between the supporting beam locations and form part of the specified loading arrangement.

01

Welded Steel Wire Grid

Longitudinal and transverse wires form the open square-grid storage surface visible in the product photograph.

02

Formed Support Channels

Three underside channels are visible on this particular panel. Channel number, profile and gauge are selected according to the required configuration.

03

Downturned Edge Wires

The outer wire ends turn downward along the edge in the photographed design. The exact edge geometry should match the specified beam connection.

04

Metal Surface Finish

The photographs show a silver-grey metallic finish. The specified coating process and environmental suitability should be confirmed before ordering.

Connection & Beam Compatibility

The Detail That Makes the Deck Fit.

HEDA's product listing identifies wire decking for step beams as a popular configuration. The original close-up shows the formed underside channel resting on an orange steel rack beam.

Beam Profile Matters

The deck width, support-channel profile and bearing surfaces must match the actual rack beam geometry.

Correct Seating Matters

The support channels and deck edges must sit as intended on the specified rack beams. An approximate visual match is insufficient.

Approved Capacity Matters

The allowable loading of a wire deck must be confirmed for its actual supports, span and load distribution.

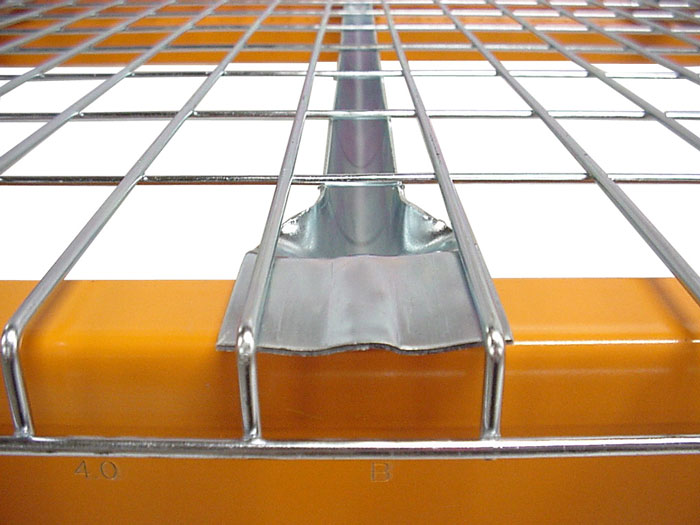

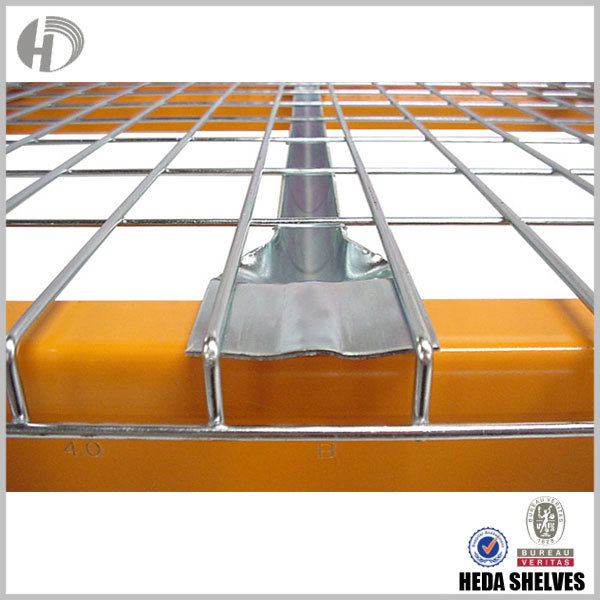

Original HEDA wire decking close-up showing the formed metal support-channel end resting on the orange rack beam beneath the welded wire grid
Actual Support Channel-to-Beam Detail

Original product close-up. Support dimensions and beam engagement require confirmation.

Real Warehouse Application

Wire Decking at Warehouse Scale.

The original HEDA product page also includes a warehouse installation view showing repeated wire-decked rack levels along multiple storage rows. This provides context for using wire decking in a larger industrial storage installation.

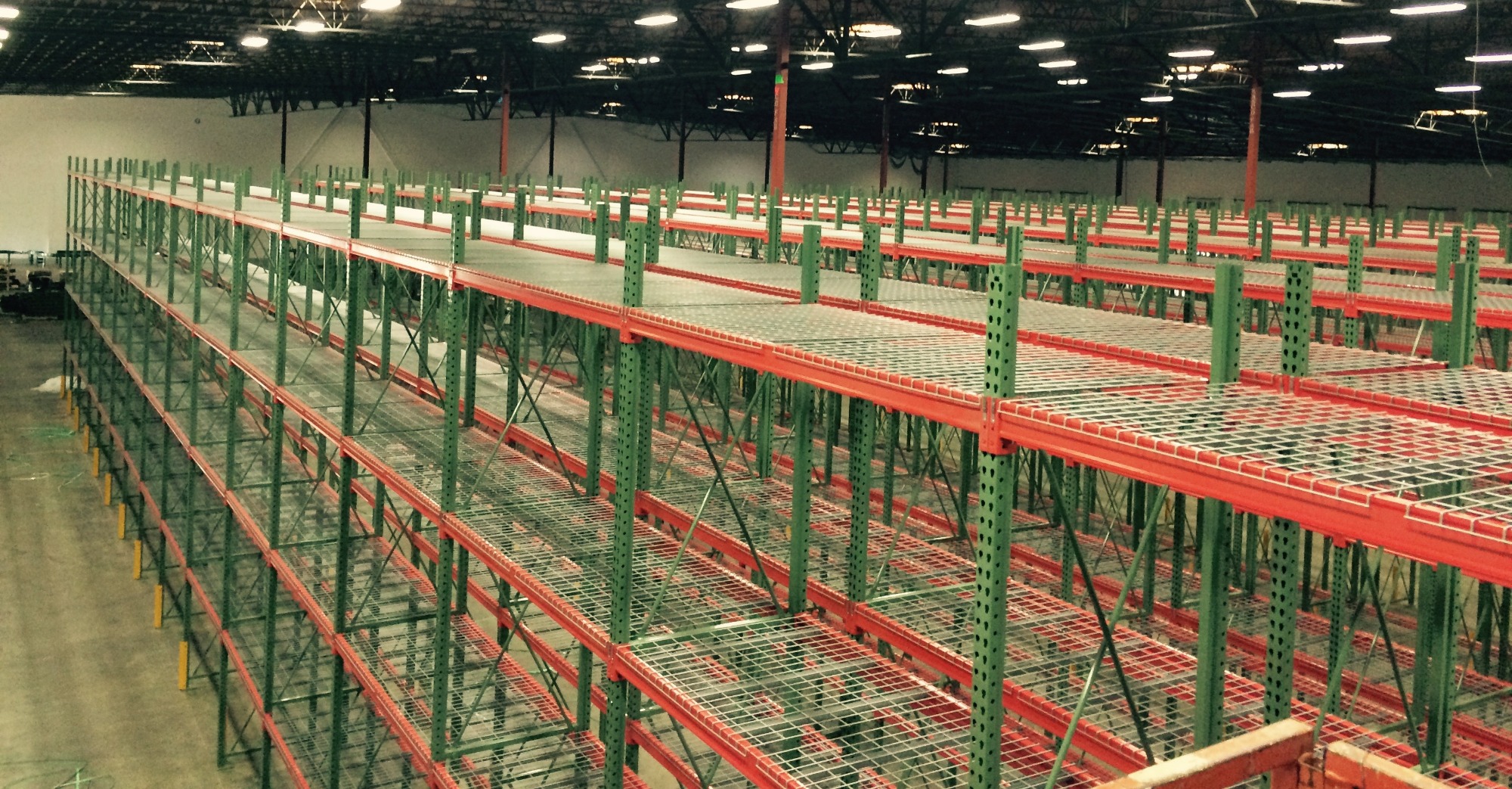

Original HEDA warehouse installation with multiple long rows of pallet racking, green upright frames, orange beams and silver-grey wire mesh decking across several levels
Multi-Bay Warehouse Racking Installation

Open mesh decking is visible over several beam levels and multiple rack rows in the original photograph.

Project-Specific Installation

Deck dimensions, support configuration, panel quantity and rated loading must be confirmed for each rack design.

Storage Visibility

The open mesh allows light to pass through storage levels.

Multiple Rack Bays

Deck panels can be specified for repeated rack bays with compatible beam geometry.

Flexible Level Selection

Decking can be planned for the levels and load types that require an appropriate supporting surface.

Technical Selection Guide

Six Details to Confirm Before Ordering Wire Decking

A correctly fitted wire deck requires more than the overall rack depth. The panel, support channels, beam profile and intended loads must be specified together.

SELECTION / 01

Deck Width & Depth

Confirm panel dimensions and the number of panels required across each beam level.

SELECTION / 02

Beam Profile

Identify whether the existing rack uses compatible step beams or another beam configuration.

SELECTION / 03

Wire Size & Grid

Select the required wire diameter and mesh opening according to the intended products and approved design.

SELECTION / 04

Support Channels

Confirm the channel count, section profile, spacing and bearing arrangement for the chosen panel.

SELECTION / 05

Load Arrangement

Provide the maximum load weight and whether it is evenly distributed or concentrated at particular contact points.

SELECTION / 06

Finish & Environment

Specify indoor warehouse conditions, corrosion-protection needs and any relevant environmental or project standards.

Technical Product Reference

Wire Decking Specifications & Custom Requirements

HEDA SHELVES offers wire decking in different sizes and styles. The following details distinguish features shown in the WD01 product photographs from specifications that must be confirmed at quotation.

WD01 / Product Configuration

Product No. WD01
Product Name Wire Decking for Pallet Rack
Product Category Warehouse Racking Decking Accessory
Visible Construction Welded Metal Wire Grid with Formed Underdeck Support Channels
Photographed Finish Silver-Grey Metallic Appearance
Panel Dimensions Different Sizes Available; Confirm Width and Depth
Wire Diameter To Be Specified for the Required Panel Design
Mesh Aperture To Be Confirmed According to Application
Support Channels Three Visible on the Featured Standalone Panel; Final Quantity Configuration-Dependent
Beam Compatibility Step-Beam Style Highlighted by HEDA; Verify Exact Beam Geometry
Edge Configuration Downturned Wire Ends Visible on the Featured Design; Confirm Required Edge Profile
Rated Load Must Be Established for Panel Span, Support Arrangement and Load Distribution
Installation Compatible Drop-In Configuration; Confirm Approved Fit and Seating
Customization Different Sizes and Styles Available; Technical Review Required
Typical Uses Compatible Pallet Racking and Industrial Storage Applications

Load Rating Clarification: WD01 does not have a single published numerical capacity covering every configuration. A wire deck's rated load must be independently verified. The allowable load of the surrounding pallet rack is not automatically the capacity of the wire deck.

Custom Decking Quotation

Send Us Your Rack Dimensions

HEDA SHELVES can review your existing rack system or new warehouse project to help identify a suitable wire decking configuration.

  • Rack brand or existing system details
  • Clear distance between upright frames
  • Front-to-back rack depth
  • Beam type and beam cross-section
  • Clear span between supporting beams
  • Required wire decking panel size
  • Number of panels per beam level
  • Maximum load weight per panel
  • Pallet or goods contact arrangement
  • Preferred wire grid spacing and channel design
  • Required finish and storage environment
  • Total order quantity and delivery destination

Helpful for Existing Racks: Please send clear photos of the front and rear beams, including a cross-sectional measurement or technical drawing where available.

Installation & Operating Checks

A Proper Fit Is Part of Safe Storage.

Wire decking provides an additional rack support surface when installed in a compatible and approved configuration. The complete system must be evaluated before use.

Fire Protection Note

The open-grid design permits air and water to pass through its openings. However, fire-code compliance and sprinkler-system suitability depend on the full installation and applicable standards.

01

Check Beam Compatibility

Verify that the support-channel ends and wire edges match the actual rack beam profile.

02

Confirm Bearing Positions

Ensure the panel seats on the intended beams and that all required support points are engaged.

03

Follow the Rated Load

The permitted deck loading depends on its approved design and support arrangement. Avoid unapproved point loads.

04

Inspect the Metal Grid

Check for broken welds, deformed support channels, damaged edges and significant corrosion before continued use.

05

Review the Complete Rack

Confirm the surrounding beams, upright frames and decking are suitable for the intended goods and loading arrangement.

Frequently Asked Questions

Wire Decking FAQ

Practical answers for warehouse project buyers, rack distributors and customers adding decking to existing pallet racks.

What is wire decking for a pallet rack?

Wire decking is a metal mesh panel designed to fit across compatible rack load beams. The mesh and its support components form an additional storage surface when correctly specified.

What is the difference between wire decking and steel shelving?

Wire decking has an open steel grid, allowing light and airflow through its surface. Solid steel shelving uses a continuous panel. The appropriate choice depends on the goods, support geometry and required load rating.

Does WD01 work with step beams?

Yes, the HEDA product description highlights a step-beam decking style, and the official installation image shows wire decking on step-style beams. Exact compatibility must be verified against the beam dimensions.

How much weight can each wire deck panel carry?

A single fixed load rating is not published for WD01. Capacity depends on the wire construction, channel arrangement, beam span and distribution of the stored load. Request the approved rating for the exact panel.

Can the wire decking size be customized?

Yes. HEDA SHELVES states that wire decking is available in different sizes and styles. Provide your rack dimensions, beam type and required loads for a compatible configuration to be reviewed.

Is wire decking suitable for loose cartons?

Wire decking may support suitable cartons or other goods if the panel has the required approved loading capacity and the grid spacing provides adequate support for the item dimensions. Small items may require another support surface.

Does wire decking automatically meet sprinkler or fire safety codes?

No. The open grid may allow water to pass through, but actual compliance depends on the sprinkler design, storage arrangement, panel geometry and applicable local fire protection requirements.

Can wire decking be installed without tools?

HEDA SHELVES describes easy drop-in installation for suitable wire decking configurations. The actual installation method depends on the selected panel, beam arrangement and manufacturer's instructions.

What should I send to request a quotation?

Please provide rack beam measurements, front-to-back depth, required decking dimensions, beam profile, maximum intended load, panel quantity, preferred finish and destination. Beam photographs or drawings are especially useful when ordering for an existing rack.

HEDA SHELVES / RACK ACCESSORIES

Need Wire Decking That Fits Your Rack?

Share your rack beam dimensions, decking size, intended load and project quantity with HEDA SHELVES. Our team can discuss a compatible wire decking configuration and prepare a quotation for your warehouse storage project.
