The HEDA Wine Retail Store Wire Display Fixture combines an upper horizontal bottle display rack with a lower partitioned wire basket, supported by a black rounded steel frame. The top rack presents wine bottles lying horizontally along an open wire support, while the lower divided basket provides a separate compartmentalized storage and display area. Its compact, open-frame appearance makes No.00189 a practical reference for customized wine retail merchandising.
GET QUOTE NOW
Rather than using identical shelves from top to bottom, No.00189 has two structurally different merchandise areas. Each area can be planned around a specific display function and the intended bottle dimensions.
The upper section consists of a single inclined metal wire support with regularly spaced wire members. The original photographs show two wine bottles lying horizontally across this section. The open design allows the bottle shapes and labels to remain visible while they rest on the wire structure. The example bottles illustrate the display concept; their number does not establish the fixture's capacity.
Beneath the horizontal wine rack is a deep open-top wire basket divided internally by vertical metal partitions. This creates a series of individual sections instead of one completely open bin. The compartments can be evaluated for suitable bottled goods or compatible packaged merchandise according to their dimensions, weight and stability. The factory photos show this lower basket without products loaded.

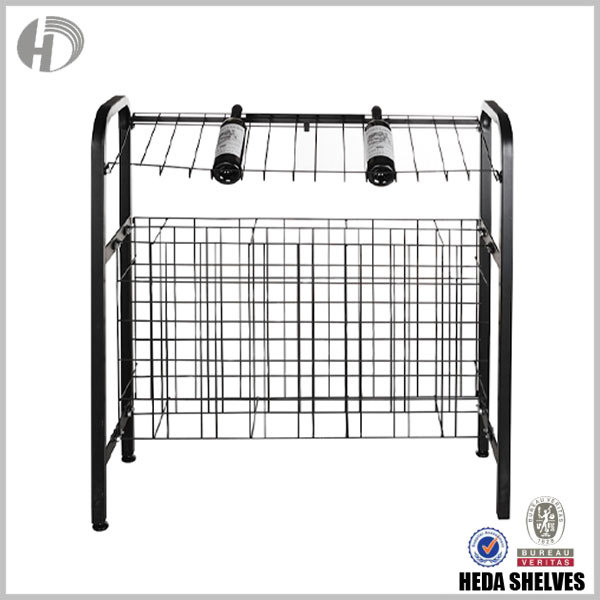

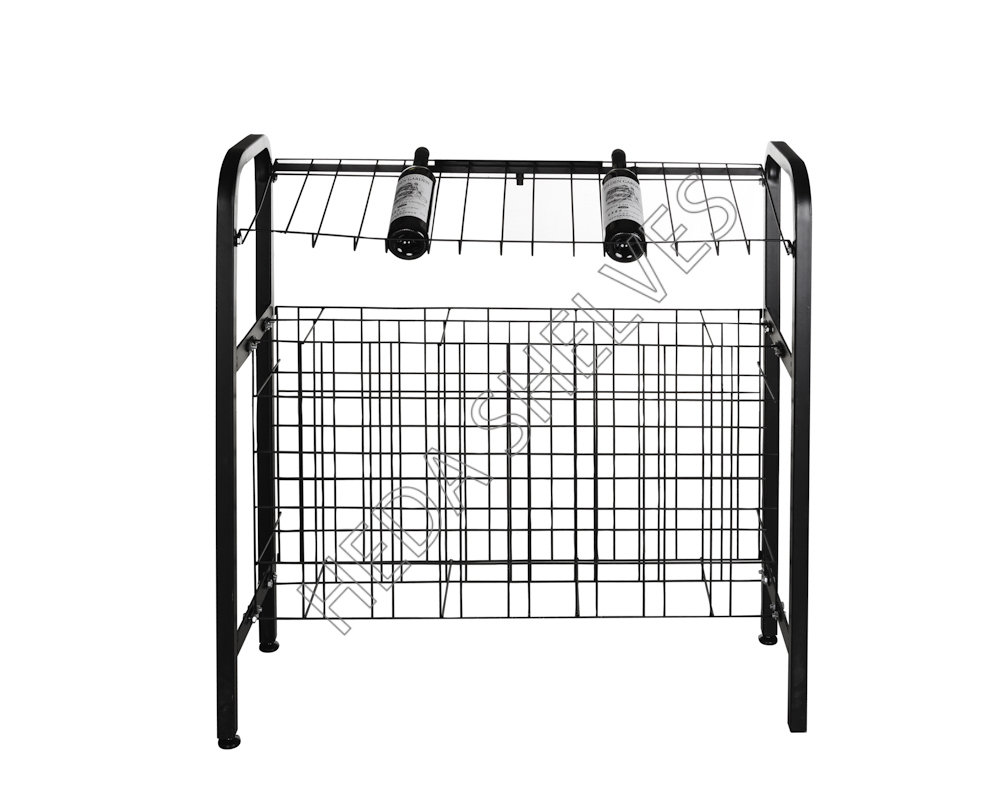

The official front-view factory photograph clearly shows the upper bottle support rods, the black side frames, the lower wire basket grid and the internal vertical partitions. These details distinguish No.00189 from standard flat-shelf wine displays.
The fixture uses two upright black metal side frames with rounded top corners. These side members support the upper rack and lower basket.
Metal wire bars extend across the upper frame to create bottle resting positions. The wire geometry and spacing must suit the intended bottle shape.

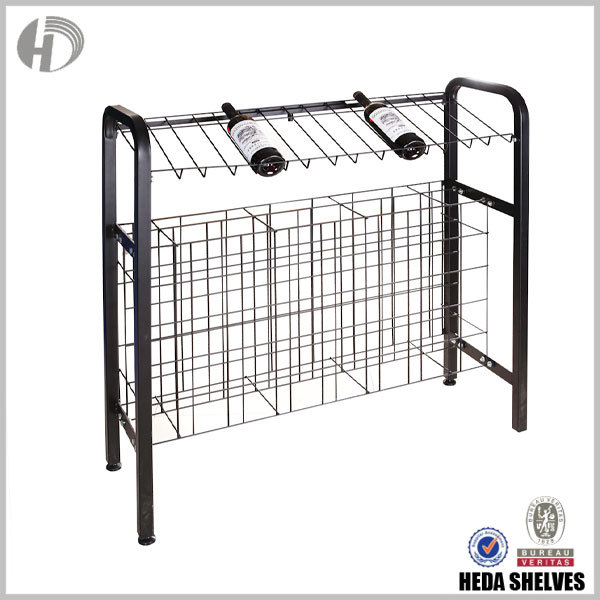

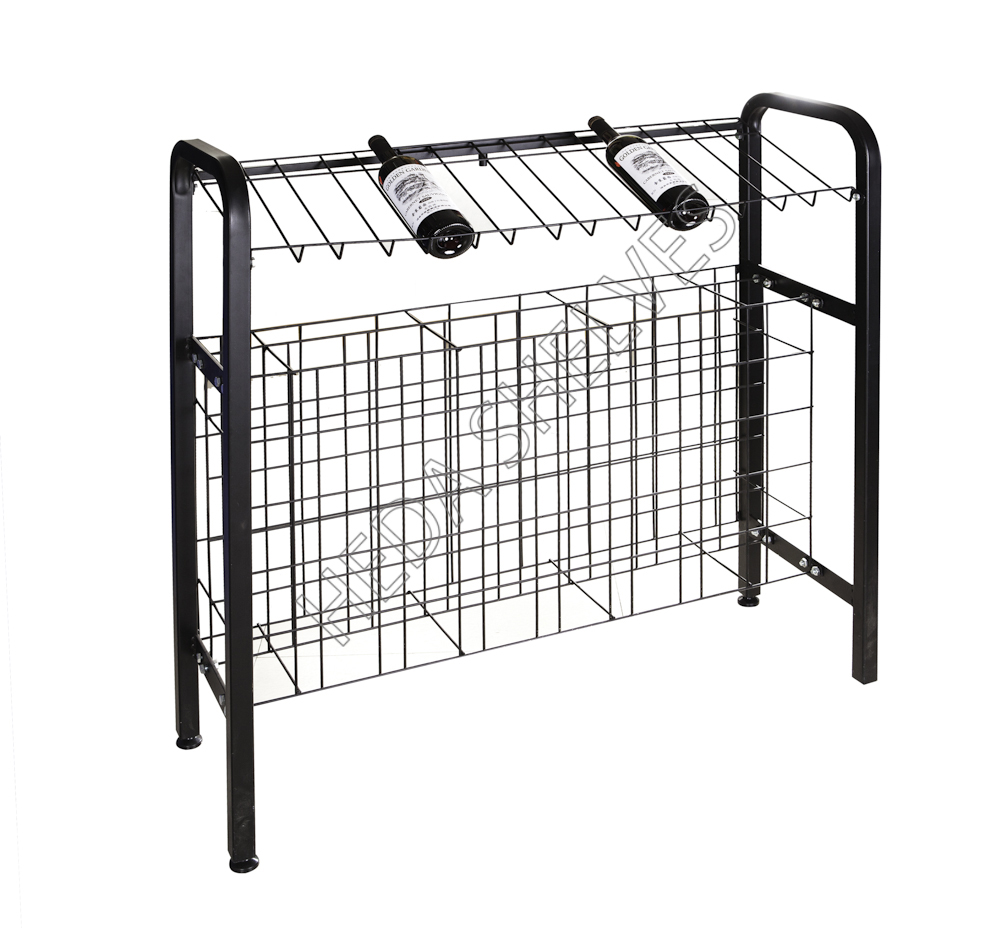

The upper wire display has a sloping profile visible in the angled photograph. The product is not shown with any automatic gravity-feed mechanism.
A rectangular metal wire basket extends between the side frames. Internal dividers separate the lower section into narrower compartments.
Side connection members secure the wire basket to the frame. The black legs terminate in small floor support feet. No wheels are visible on the original product.
When developing a wine display fixture, bottle dimensions, product weight and merchandising orientation are important inputs. The finished rack must be suitable for the bottles and display method selected by the customer.
Provide the bottle diameter, overall length, body shape and neck profile. The upper wire support layout should match the actual contact points and support requirements of the bottle. Different bottle designs should be checked individually.
Define which products will be placed in the lower wire basket. The internal compartment width, basket depth and opening size must suit the selected merchandise. Products should be securely supported and remain stable during access.
Confirm the filled weight of the bottles, the planned quantity in the upper rack and the loading of the lower basket. The combined merchandise weight determines the required wire, frame and connection strength. The final capacity must be technically verified.
The combination of horizontal bottle support and a divided lower wire basket provides a useful concept for specialized beverage merchandising. Product stability, appropriate loading and retail space should always be confirmed before use.
The upper horizontal display may be used to present compatible wine bottles as part of a dedicated in-store display. The lower compartmented section can be planned for suitable accompanying inventory or merchandise.
The freestanding display format can be considered for designated beverage areas in retail stores. Suitable bottle dimensions, retail circulation and floor stability should be assessed as part of the project.
The upper wire display can emphasize selected packaged bottles, while the lower compartments provide additional merchandise organization. Actual bottle positioning and capacity should be defined in the final layout.
Brand owners, distributors and retailers may discuss project-specific fixture dimensions, colors and display arrangements. Any added branding, signage or promotional elements would require separate design approval.
HEDA SHELVES provides custom retail display fixtures for different product categories. The original No.00189 shows one black wine display design with a horizontal upper rack and divided lower basket. Dimensions, materials, shape, color and surface finish can be discussed for a new project.
Share your preferred overall height, width and depth together with the available retail floor area. Both the upper display and lower basket should be included in the final dimension plan.
Provide the intended bottle dimensions, weights and display quantities. The upper wire spacing, inclination and support geometry should be reviewed against those products.
Confirm the compartment dimensions, divider requirements and intended products. The basket depth, wire spacing and partition layout can be evaluated according to the final merchandise plan.
The photographed model uses a black metal support frame with black wire components. Alternative shapes, material specifications, colors and finishes can be reviewed for the customer's requirements.
Provide the estimated number of fixtures, destination, packaging requirements and desired schedule. Final component connections, packing and assembly should follow the approved project specifications.
HEDA's original product photographs show a black steel wire display featuring one upper horizontal bottle rack and one lower deep compartmentalized basket. The metal side frames have rounded corners and fixed floor support feet.
The product listing does not publish fixed overall dimensions, bottle capacity, steel wire diameter or verified load ratings. These values, together with bottle compatibility, compartment layout and final stability, should be confirmed in the approved technical drawings.
| Product Number | No.00189 |
|---|---|
| Product Name | Wine Retail Store Wire Display Fixtures |
| Display Type | Freestanding Wine Retail Wire Display |
| Main Frame | Black Metal Tubular Frame with Rounded Upper Corners |
| Upper Display | Single Inclined Wire Rack for Horizontal Bottle Presentation |
| Lower Display | Deep Open Wire Basket with Internal Vertical Dividers |
| Photographed Finish | Black Metal |
| Floor Support | Fixed Legs with Small Support Feet No caster wheels visible in the original photos. |
| Reference Bottle Display | Two Sample Bottles Shown in Factory Photos Demonstration only; does not establish maximum capacity. |
| Overall Dimensions | Customizable; Final Measurements to Be Confirmed |
| Bottle Compatibility | Subject to Bottle Diameter, Length, Shape and Filled Weight |
| Lower Compartment Size | To Be Confirmed According to the Selected Merchandise |
| Load Capacity | To Be Confirmed for the Final Wire and Frame Construction |
| Custom Options | Shape, Dimensions, Materials, Color and Finish |
| Main Application | Wine and Compatible Bottled Product Retail Display |
| Packing | Subject to Approved Product Design and Order Requirements |
Share your bottle dimensions, desired display capacity, preferred rack dimensions, lower basket requirements, finish and estimated order quantity. HEDA SHELVES can review your project and discuss a suitable No.00189 wine retail wire display configuration for your store.
