Warehouse Cantilever Racking Systems

No.00303
Learn about the benefits and features of warehouse cantilever racking systems, the ideal storage solution for long, bulky items, improving warehouse efficiency and organization. Discover the top cantilever racking brands and their advantages.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / INDUSTRIAL CANTILEVER STORAGE PRODUCT NO.00303
Warehouse Long-Material Storage Solutions

Long Goods. Clear Aisles. Organized Storage.

HEDA SHELVES Warehouse Cantilever Racking Systems provide a practical storage arrangement for steel pipes, metal profiles, lumber and other suitable long or bulky goods. Product No.00303 features blue steel upright frames, orange projecting cantilever arms and structural bracing arranged in extended warehouse storage rows. The original product photographs demonstrate both open-arm storage structures and an installation carrying long cylindrical materials. By providing accessible horizontal support positions, the system can help separate different material groups and organize handling aisles. Rack dimensions, loading capacity, arm spacing and the final structural arrangement are customized according to the warehouse and stored goods.

Long Material Storage Open-Front Access Custom Warehouse Layout
Original HEDA No.00303 large warehouse cantilever racking installation showing blue steel upright frames, orange projecting storage arms, multiple rack rows and a wide central handling aisle beneath a metal warehouse roof
Original HEDA warehouse cantilever installation with repeated storage rows and a central aisle.
Open Cantilever Arms Horizontal support positions for long goods
Multiple Rack Bays Repeated upright frames across warehouse rows
Custom Load Ratings Verify the approved capacity for each configuration
Modular Construction Knock-down steel rack structure
Warehouse Storage Workflow

Plan the Rack Around the Way Materials Move

Long-material storage efficiency depends on more than the number of rack levels. A successful warehouse arrangement should support material receiving, handling, storage and order retrieval.

01

Material Receiving

Identify the dimensions, weight, shape and quantity of incoming long goods. Separate material categories based on their storage and handling needs.

02

Handling and Transfer

Select appropriate forklifts, cranes or other approved equipment for the loads. Provide sufficient maneuvering and approach clearance.

03

Organized Storage

Assign materials to suitable cantilever levels and support points. Confirm load stability, arm capacity and permissible overhang.

04

Order Retrieval

Keep storage positions identifiable and loading aisles accessible. Retrieval methods should suit the stored material dimensions and handling equipment.

Workflow planning reference: the final operating arrangement depends on your warehouse, inventory and handling equipment.

Original Cantilever Rack Construction

Long Rows of Blue Uprights and Orange Support Arms

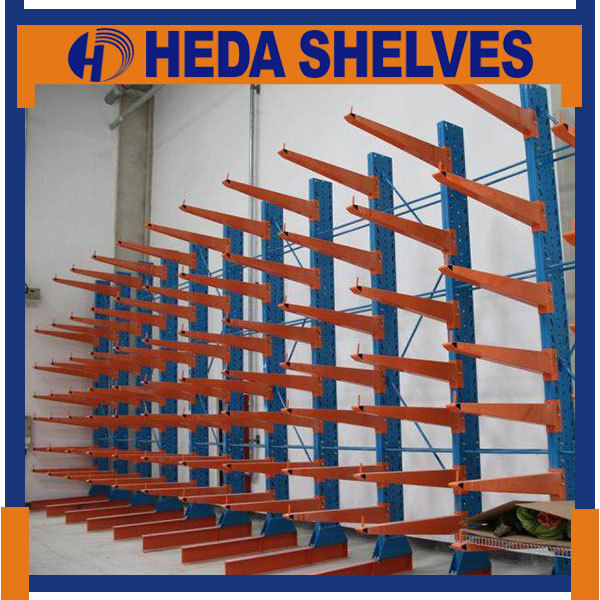

The first original product photograph shows a long cantilever rack positioned beside a warehouse wall. Multiple blue steel upright frames support projecting orange cantilever arms at different heights.

Original HEDA No.00303 wall-side warehouse cantilever rack with a continuous row of blue perforated upright steel columns, multiple orange projecting support arms, diagonal rear bracing and floor-level steel bases
Original HEDA cantilever rack configuration with long continuous rows, blue frames and orange arms.

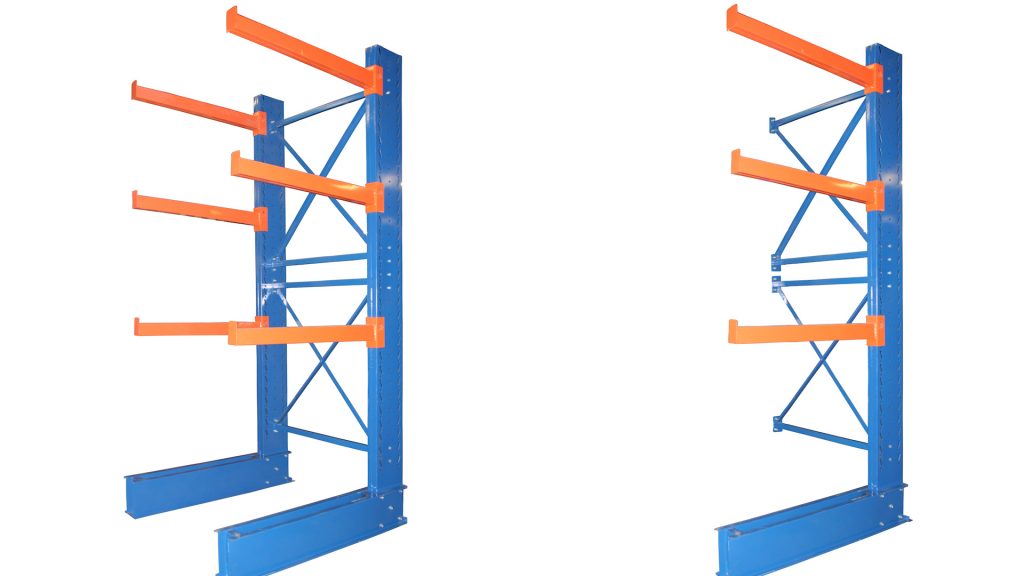

Cantilever Construction

Simple Storage Access. Engineered Steel Support.

Cantilever storage uses projecting arms connected to vertical steel frames. The open loading face allows access to suitable long materials without front upright columns.

Perforated Upright Columns

Vertical blue steel members provide structural support for the cantilever arms.

Orange Cantilever Arms

Horizontal steel supports provide storage positions at multiple elevations.

Structural Cross-Bracing

Diagonal members connect the rack frames as part of the stability system.

Steel Bases and Anchorage

The complete rack needs suitable base supports and verified anchoring conditions.

Installation clarification: The rack is photographed beside a warehouse wall. This does not mean the wall carries the stored loads. The photographed cantilever structure is a steel rack system requiring appropriate stability and anchorage verification.
Large Warehouse Storage Arrangement

Repeated Cantilever Bays Across an Industrial Warehouse

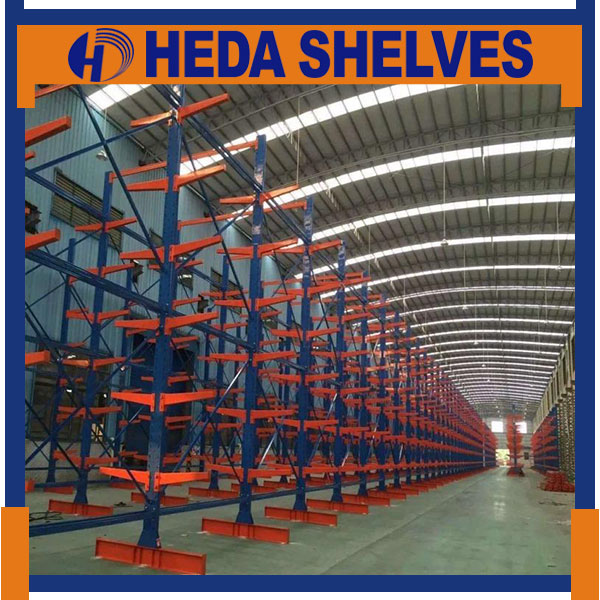

The third original photograph shows an extensive cantilever racking installation inside a large industrial building. Blue upright columns, orange projecting arms and diagonal bracing repeat along long storage rows.

Warehouse Layout Engineering

Storage Rows Need Coordinated Access

Repeated rack bays can organize a large quantity of long goods. However, the final arrangement must fit the available building space and the operating process.

Rack Row Length: Select the required number of storage bays based on inventory quantity and available space.
Upright Spacing: Position support frames according to the lengths and stiffness of stored goods.
Storage Elevations: Allow suitable vertical clearance for the material bundles and handling equipment.
Access Aisles: Provide sufficient maneuvering space for the intended handling equipment and longest materials.
Original HEDA No.00303 extensive cantilever racking installation in a large industrial warehouse with a curved metal roof, long continuous rows of blue steel upright frames, orange cantilever arms, diagonal bracing and steel bases
Original HEDA warehouse installation showing extended cantilever rows under a large industrial roof.
Rack layout accuracy: This photograph demonstrates an extended cantilever arrangement. It does not establish fixed aisle dimensions, certified storage capacity or one universal rack loading configuration. The final warehouse design must be matched to the project.
Actual Stored Material Example

Horizontal Storage for Cylindrical Industrial Goods

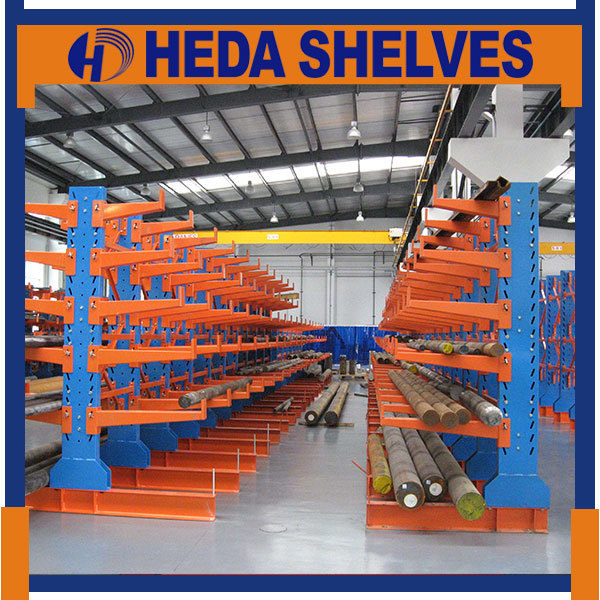

The fourth original No.00303 photograph shows blue-and-orange cantilever racking with long cylindrical materials resting on selected support arms. This image provides a real storage example rather than an empty rack display.

Original HEDA No.00303 industrial cantilever storage installation with blue upright frames, orange cantilever support arms and floor bases, carrying long cylindrical industrial materials arranged horizontally on several storage levels
Original HEDA installation with long round industrial materials stored horizontally on cantilever arms.
Long-Goods Storage Requirements

Support the Material. Control Its Movement.

Cylindrical materials require particular attention to loading stability and the number of supporting arms. The rack must be selected for the actual stored goods.

01

Appropriate Support Points

Long materials may require several arms to distribute their weight correctly.

02

Rolling Protection

Round goods may need appropriate end stops, cradles or securing arrangements.

03

Bundle Weight

Confirm the total weight and how it is distributed across the supporting steel arms.

04

Safe Loading Access

The aisle must allow suitable lifting equipment to place and retrieve the long goods.

Actual material image: The photograph shows long cylindrical goods stored on cantilever supports. The exact material specification, individual item weight and approved arm capacity cannot be determined from the photograph. The orange floor-level supports visible in this installation do not establish a universal floor-level storage rating for every configuration.
Cantilever Load Engineering

Four Structural Checks Behind Reliable Long-Goods Storage

HEDA SHELVES lists the load capacity of No.00303 as customizable. Final loading must be verified for the cantilever arms, steel frames and complete installation.

01

Load Per Arm

Each projecting cantilever arm must support its approved share of the stored load. Arm section, projection and connection details influence the permitted loading.

02

Support Spacing

The distance between adjacent support arms affects how long materials distribute their weight. Confirm the required number of supports and allowable material overhang.

03

Upright and Bracing

The steel upright frames receive loads from the cantilever arms. Check frame capacity, cross-bracing, connections and permissible loading combinations.

04

Bases and Anchors

Loads transfer through the structure into its bases, anchors and supporting floor. Floor capacity and installation conditions require suitable verification.

Capacity clarification: Product No.00303 does not publish a fixed numerical load rating per arm or per complete rack. The safe working load cannot be determined from the number of visible cantilever levels. Each approved configuration should specify the permissible loading per arm, upright and complete structure. The final installation must follow the approved technical design and loading instructions.
Warehouse Operating Considerations

Safe Long-Goods Storage Starts with Proper Handling

Material length, shape, weight and handling method influence how cantilever racking should be used in everyday warehouse operations.

OPERATION / 01

Select Suitable Lifting Equipment

Forklifts with suitable attachments, cranes or other approved equipment may be required for long loads. Verify equipment capacity, load stability and available working clearance before moving materials.

OPERATION / 02

Maintain Clear Handling Aisles

Keep designated loading routes clear of unrelated materials and equipment. The aisle should accommodate safe approach, lifting, turning and withdrawal for the longest stored goods.

OPERATION / 03

Prevent Uncontrolled Load Movement

Round pipes, bars and other cylindrical goods may require suitable restraint against rolling or shifting. Use the retention method approved for the actual material and rack configuration.

OPERATION / 04

Protect and Inspect the Rack

Consider suitable protection around exposed steel uprights and bases where vehicles operate. Regularly inspect the rack for damage, displaced members or other visible problems. Follow approved loading instructions.

Warehouse Layout and Rack Design

Five Decisions That Shape the Right Cantilever System

Cantilever racking should be configured for the actual warehouse space, inventory and storage requirements. A suitable design begins with accurate project information.

01

Identify Material Dimensions

Provide the minimum and maximum material lengths, widths, diameters and section shapes. These values influence arm projection and support spacing.

02

Confirm Weight and Quantity

Specify the maximum weight of individual items or material bundles. Include the number of loads that must be stored at each level.

03

Select Storage Row Geometry

Determine the rack height, row length, number of support frames, arm projection and required storage elevations. All dimensions must be approved for the loading.

04

Coordinate Loading Access

Plan aisle widths, access direction and handling equipment. Single-sided and double-sided arrangements may be considered where suitable, but must be separately specified and engineered.

05

Verify Floor and Installation

Review the existing concrete floor, rack base positions, anchor requirements and nearby building features. Final installation must follow approved structural specifications.

Manufacturer Product Data

Warehouse Cantilever Racking Specifications

HEDA SHELVES offers customizable cantilever racking for warehouses, factories and suitable industrial storage facilities. Product No.00303 uses a modular steel structure with projecting cantilever support arms. Dimensions, loading capacity and storage levels are selected according to project requirements.

Specification note: The manufacturer lists product dimensions, thickness, capacity and number of levels as customizable. The official photographs show different warehouse arrangements and stored material conditions. No fixed capacity can be inferred from the images alone.

No.00303 / Technical Reference

Product No. 00303
Product Name Warehouse Cantilever Racking Systems
Product Category Industrial Cantilever Racking
Main Material Cold-Rolled Steel
Product Size Customizable
Steel Thickness Customizable
Load Capacity Customizable; Approved Ratings Required
Number of Levels Customizable
Featured Frame Color Blue Steel Uprights and Bracing
Featured Arm Color Orange Steel Cantilever Arms
Available Colors Blue, Orange, Black, White, Grey, Red or Customized
Surface Treatment Electrostatic Spray Surface
Surface Features Manufacturer-Listed Anti-Rust and Corrosion Protection
Main Components Steel Uprights, Cantilever Arms, Structural Bracing, Bases and Connections
Structure Knock-Down Steel Construction
Main Applications Pipes, Lumber, Tubing, Profiles and Compatible Long Goods
Use Areas Warehouse, Factory and Suitable Industrial Storage Locations
Customization OEM & ODM Accepted
Warranty Reference Manufacturer Lists 5 Years; Confirm Terms and Coverage
Engineering Requirements Arm Loads, Support Spacing, Upright Capacity, Stability and Anchorage
Industrial Storage Applications

Storage Options for Different Long-Material Categories

Cantilever racks can accommodate compatible long and irregular goods that may be difficult to store in conventional shelving. Each material requires a suitable support arrangement and loading method.

APPLICATION / 01

Steel Pipes and Cylindrical Materials

Provide designated horizontal storage positions for suitable steel pipes, tubes and similar long materials. Confirm the required support spacing, total load weight and protection against rolling or shifting.

APPLICATION / 02

Steel Profiles and Fabricated Components

Organize compatible metal profiles, bars and fabricated long components across designated cantilever levels. Arm spacing, support distribution and lifting methods should suit the actual products.

APPLICATION / 03

Lumber and Long Building Materials

Consider suitable cantilever configurations for timber boards, wooden beams and compatible building materials. Material stiffness, maximum overhang and required support points must be evaluated before loading.

Custom Warehouse Racking Project

Design the System Around Your Real Inventory

HEDA SHELVES can discuss a customized warehouse cantilever racking configuration based on material dimensions, storage quantity, warehouse layout and handling requirements. Accurate details about your longest and heaviest materials will help determine suitable support arms and rack dimensions.

Quotation priority: Please provide the stored material type, maximum length, maximum bundle weight and warehouse dimensions. Include the number of required storage levels and the equipment used for loading and retrieval. A warehouse floor plan will help clarify the preferred rack rows and loading aisles.

Information Needed for Your Quotation

Warehouse length and width
Warehouse clear height
Warehouse floor plan
Type of stored materials
Material section shape
Maximum material length
Material diameter or width
Maximum item weight
Maximum bundle weight
Required storage quantity
Required arm levels
Preferred rack height
Preferred arm projection
Required rack row length
Number of storage rows
Single or double loading face
Available handling aisle
Forklift or crane details
Required lifting height
Material support spacing
Maximum material overhang
Rolling restraint requirements
Existing floor conditions
Indoor or outdoor installation
Preferred rack colors
Project delivery destination

The final configuration requires approved arm capacities, upright loading, support spacing, stability and anchoring specifications.

Frequently Asked Questions

Warehouse Cantilever Racking Systems FAQs

What is warehouse cantilever racking?

Warehouse cantilever racking is a steel storage system using vertical upright frames and projecting horizontal support arms. It is suitable for consideration where long or bulky materials require accessible storage positions.

What is the loading capacity of Product No.00303?

HEDA SHELVES lists the load capacity as customizable for No.00303. There is no universal numerical capacity published for every arm or complete rack configuration. Safe working loads must be verified according to the approved structural design.

Can cantilever racking store steel pipes and round materials?

Yes. Suitable pipes and cylindrical long materials are among the manufacturer's stated applications. The original product gallery also shows long round materials stored on cantilever racks. Proper support and load restraint must be provided.

How is cantilever racking different from pallet racking?

Cantilever racking uses projecting support arms to accommodate suitable long or irregular materials. Conventional selective pallet racking generally uses horizontal beams to support pallets within defined rack bays. The appropriate choice depends on the stored goods and handling requirements.

Can rack height and arm levels be customized?

Yes. The manufacturer lists product dimensions, thickness, loading capacity and number of levels as customizable. Final arm positions and rack dimensions must remain within the approved loading specification.

Can the rack be single-sided or double-sided?

Cantilever systems may be configured with storage arms on one or both sides where the selected structure permits. The appropriate arrangement depends on available warehouse space, access aisles and loading requirements. The configuration must be confirmed for the project.

What is required to store long cylindrical goods safely?

Cylindrical goods may require multiple supporting arms and suitable restraints against rolling or shifting. The material length, bundle weight, support positions and handling method must be reviewed together.

What handling equipment can be used with cantilever racks?

Suitable forklifts with appropriate attachments, cranes or other approved lifting equipment may be considered. Equipment capacity, load stability, lifting height and aisle clearances must suit the actual stored materials.

Can the system be expanded later?

Modular cantilever configurations may allow extensions or alterations where the site and structural conditions permit. Any modification should be reviewed for component compatibility, load capacity, stability and anchoring before operation.

What surface treatment is used?

The manufacturer lists electrostatic spray surface treatment with anti-rust and corrosion-protection features. Special environmental requirements should be assessed according to the installation location. Outdoor use requires additional consideration.

What information is needed for a quotation?

Please provide warehouse dimensions, stored material type, maximum length, bundle weight and required storage quantity. A floor plan and details of the loading equipment will help define the appropriate cantilever layout.

HEDA SHELVES / CUSTOM LONG-MATERIAL STORAGE

Planning a Warehouse Cantilever Racking Project?

Share your warehouse layout, stored material dimensions, maximum bundle weights and required storage levels. Discuss a customized warehouse cantilever racking solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
