Radio Automatic Shuttle Pallet Racking System

No.SPRS01
Radio Automatic Shuttle Pallet Racking System is an advanced warehouse solution designed to enhance warehouse efficiency and storage density.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / SHUTTLE STORAGE SYSTEMS

High-Density Storage. Smarter Pallet Movement.

HEDA SHELVES Radio Automatic Shuttle Pallet Racking System combines deep-lane pallet storage with radio-controlled shuttle technology. The shuttle transports pallets within the rack lanes, allowing forklifts to handle goods at designated lane entrances instead of traveling deep into the storage structure.

High-Density Storage Radio-Controlled Shuttle Custom Pallet Lanes

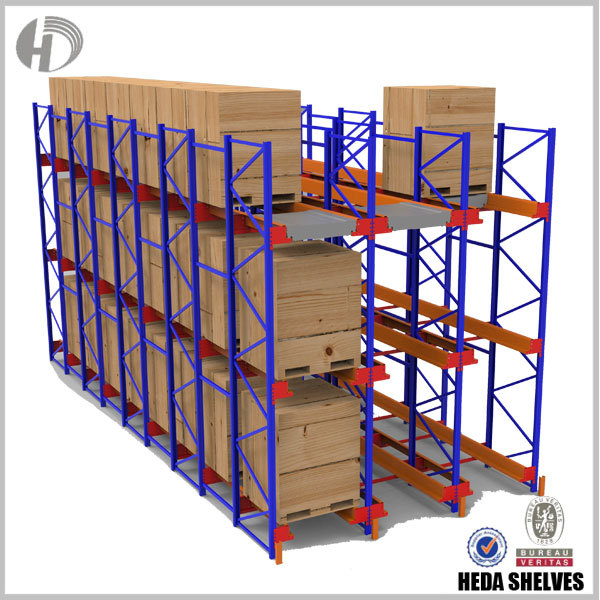

HEDA SHELVES radio shuttle pallet racking with blue steel upright frames, orange rail supports, loaded pallet positions and yellow shuttle equipment
Key Advantages

More Pallet Positions. Less Forklift Travel.

Pallet shuttle racking is designed for warehouses handling substantial quantities of palletized goods. By combining dense storage lanes with shuttle-assisted pallet movement, the system provides an alternative to conventional deep-lane storage.

01 / STORAGE DENSITY

Reduce Internal Access Aisles

Pallets are arranged in multi-deep storage lanes. The shuttle travels within these lanes, helping reduce the need for forklift aisles between individual pallet positions.

02 / HANDLING

Shuttle-Assisted Pallet Movement

The shuttle carries pallets between the lane entrance and designated storage positions. Forklift operators can remain in the main working aisles during normal pallet handling.

03 / FLEXIBILITY

Adaptable Inventory Management

The system can be planned for LIFO or FIFO stock rotation according to lane access arrangements and operating requirements, subject to the selected shuttle control solution.

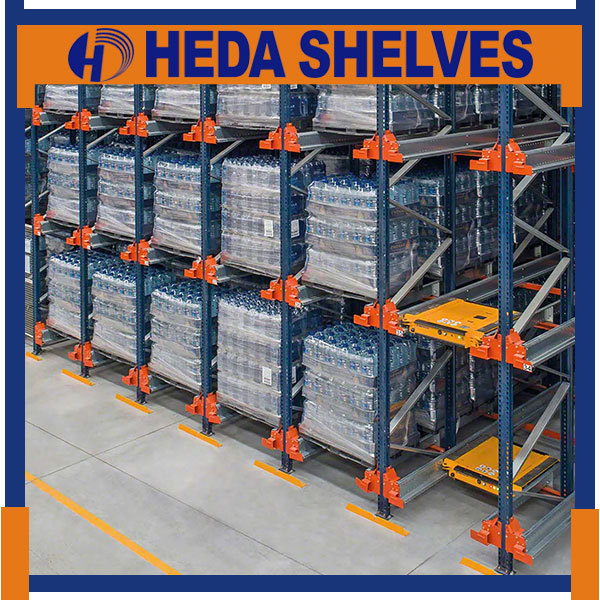

Actual HEDA radio shuttle positioned inside a storage lane between steel shuttle rails, blue uprights and orange structural supports

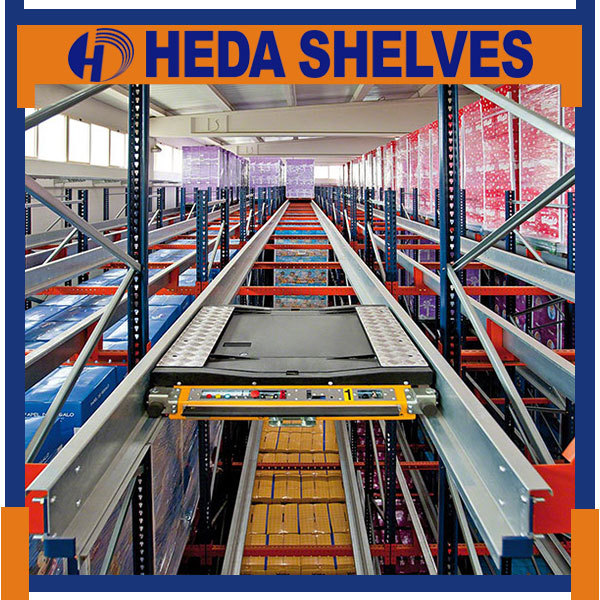

Actual HEDA shuttle vehicle and deep-lane rail arrangement
Operating Principle

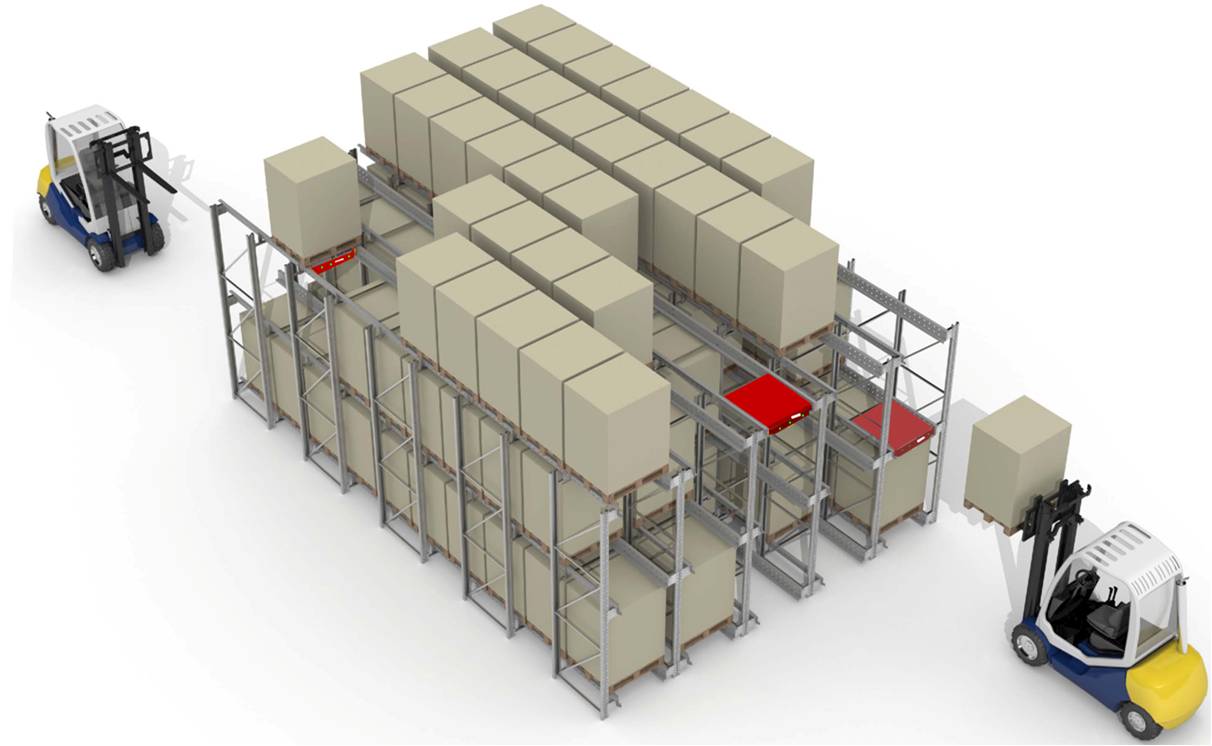

How Does a Radio Shuttle Racking System Work?

A shuttle vehicle travels horizontally along dedicated rails inside the storage lane. It handles pallet movement within the rack while forklifts perform loading and unloading at accessible lane positions.

01

Position the Shuttle

The shuttle is placed into the selected storage lane using suitable handling equipment. The operator prepares the lane for pallet handling.

02

Store Pallets Automatically Within the Lane

The forklift places a pallet at the loading position. Under the selected control command, the shuttle transports the pallet to an available position along the storage lane.

03

Retrieve Pallets from the Lane

During retrieval, the shuttle collects the required accessible pallet and moves it toward the unloading position for forklift collection.

Operation note: In a semi-automatic configuration, forklifts are still required for external pallet handling and shuttle relocation between levels or lanes. Fully automated handling requires additional equipment and controls.
System Components

Engineered for Shuttle-Assisted Deep-Lane Pallet Handling

A pallet shuttle system combines a supporting steel rack structure, dedicated shuttle running rails and a compatible shuttle vehicle. The components must be matched to the pallet specifications and planned warehouse operations.

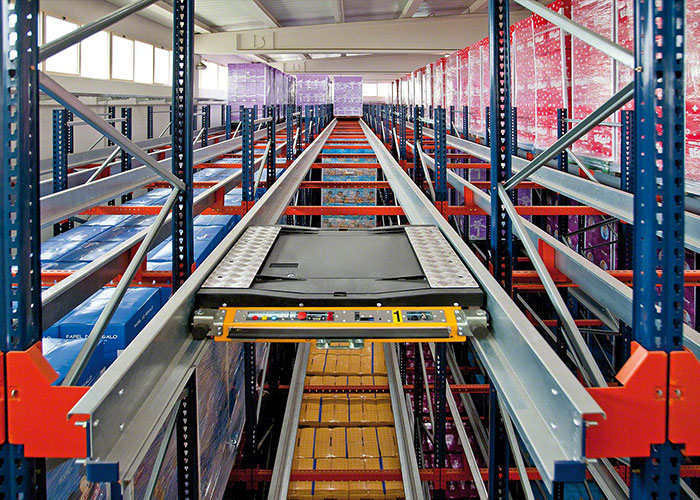

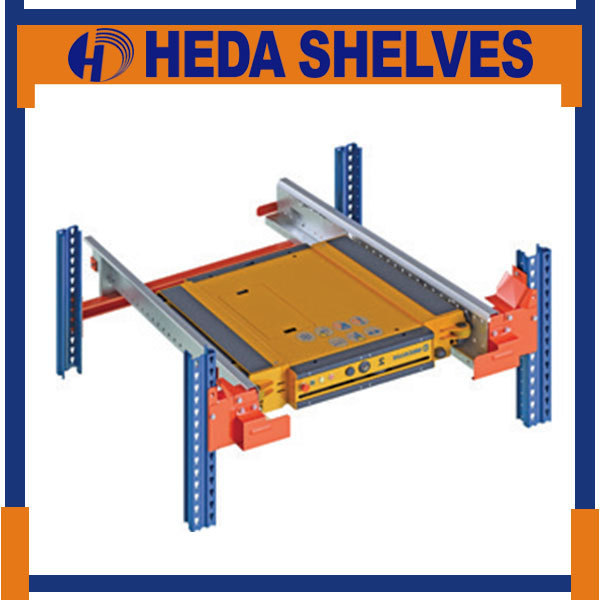

HEDA SHELVES original yellow radio shuttle vehicle positioned between steel running rails and blue upright components
Component Detail 01

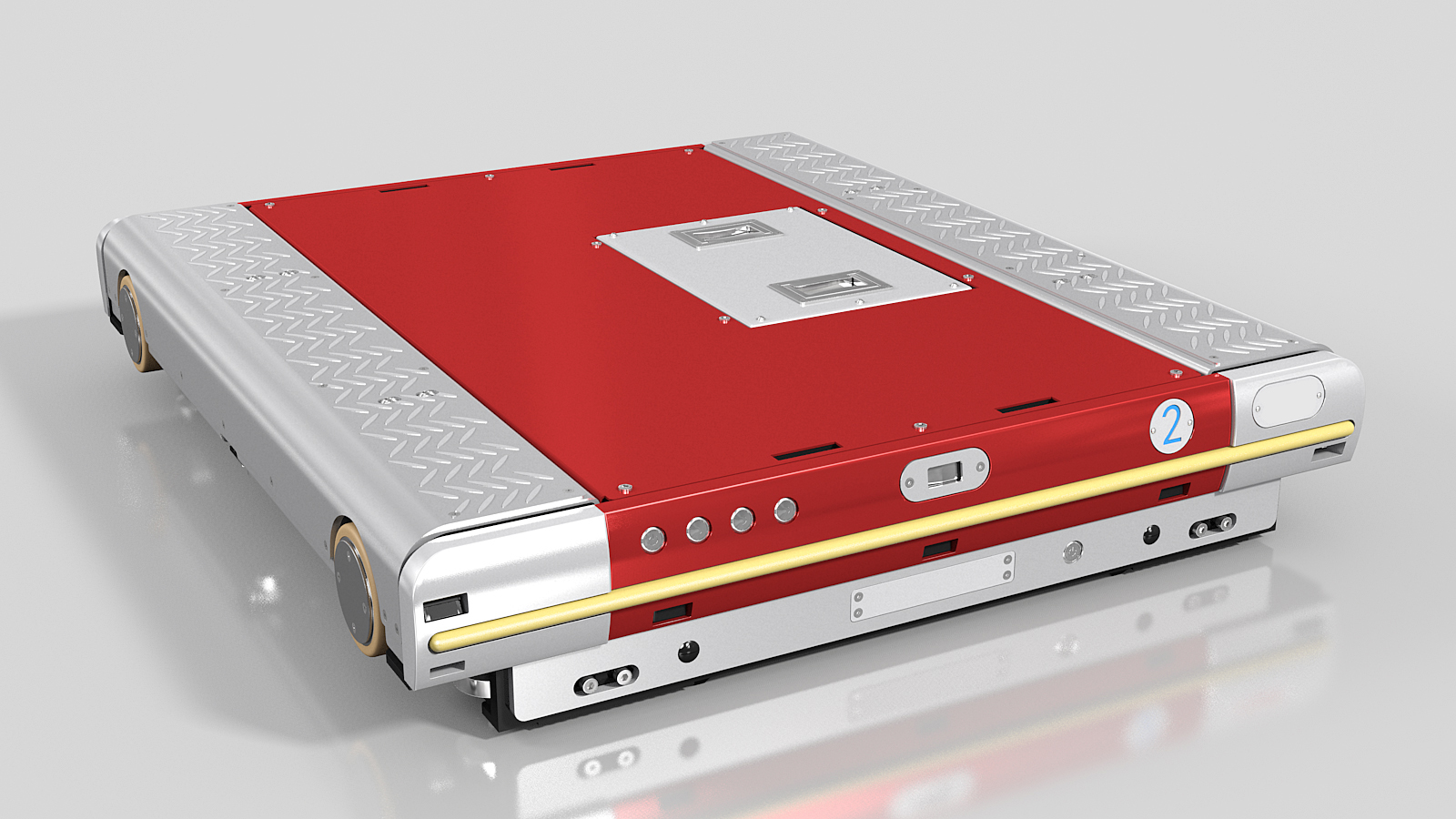

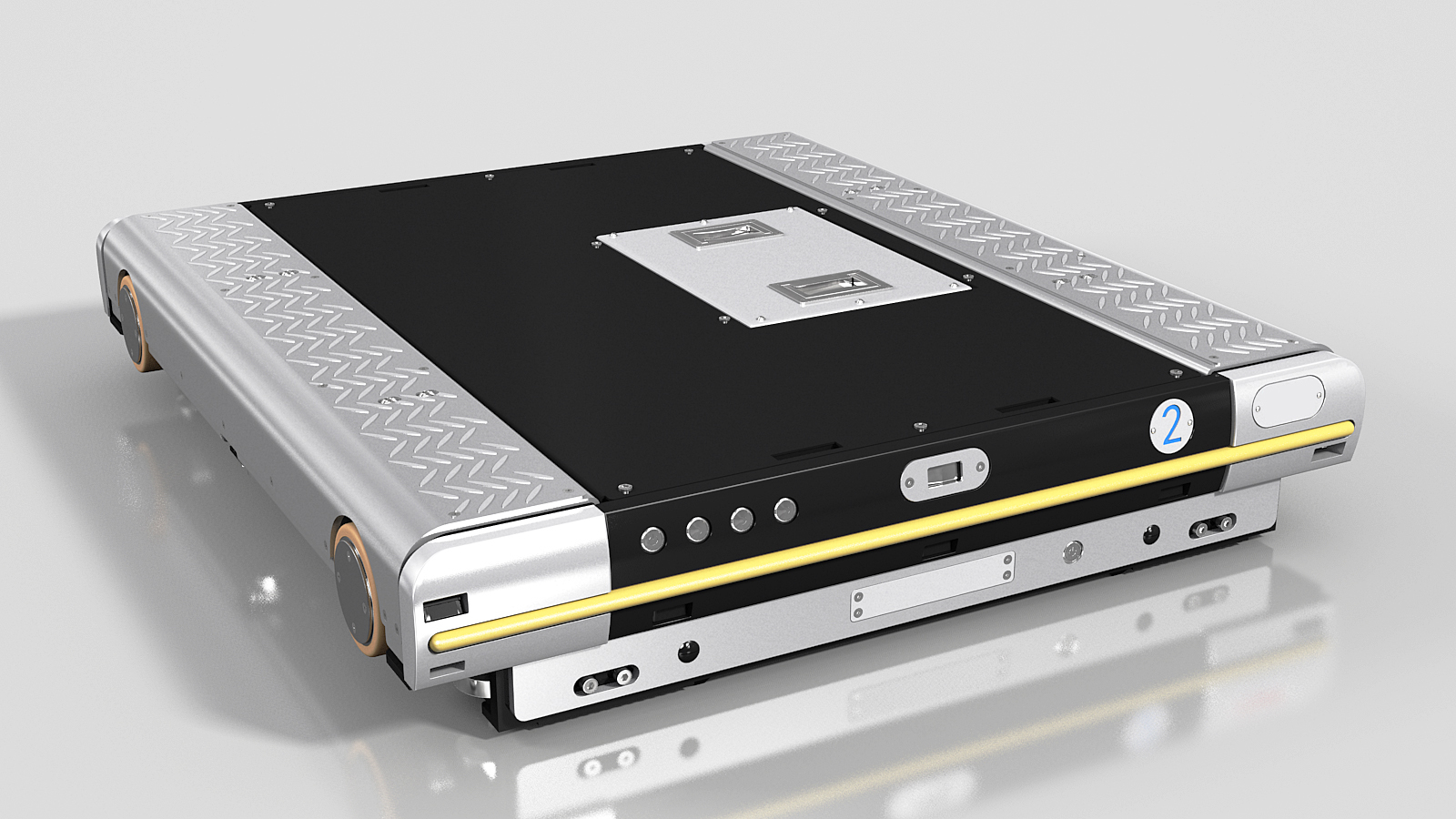

Radio-Controlled Shuttle Vehicle

The shuttle vehicle travels along the designated lane rails and handles pallet positioning inside the rack. Its control functions, operating capacity and compatibility depend on the selected shuttle model.

HEDA original pallet shuttle rack showing long steel shuttle running rails supported by blue upright frames, diagonal bracing and orange beam connections
Component Detail 02

Steel Racking & Running Rails

Upright frames, bracing, horizontal supports and steel running rails create the deep storage lanes. Rail alignment, connections and support arrangements must be designed for the specified pallets, shuttle and operating loads.

Complete System Compatibility

Shuttle dimensions, lifting capacity, wheel arrangement, control functions and running-rail geometry must be compatible with the chosen racking configuration. RFID identification, WMS integration and advanced automation functions should be confirmed individually during project specification.

Inventory Rotation

Select the Right Pallet Flow for Your Warehouse

Access arrangements influence how pallets enter and leave shuttle storage lanes. The appropriate layout depends on inventory rotation, warehouse traffic and the selected equipment.

SINGLE-ENTRY CONFIGURATION

LIFO Storage

Last-In, First-Out storage uses the same operating end for pallet loading and retrieval. It is commonly considered for bulk inventories where strict first-in stock rotation is not required.

Loading Side ↔ Same Access Side
OPPOSITE-END ACCESS CONFIGURATION

FIFO Storage

First-In, First-Out storage can be achieved where the system is designed with loading and unloading access at opposite ends and suitable shuttle control logic.

Loading → Storage Lane → Retrieval

Configuration requirement: FIFO availability depends on access from both ends, rack geometry, site layout and the shuttle's supported operating functions. It is not automatically included in every single-entry installation.

Original Product References

See the Racking Structure Behind the Shuttle System

The following original HEDA images show warehouse racking arrangements and deep-lane storage structures associated with this product series.

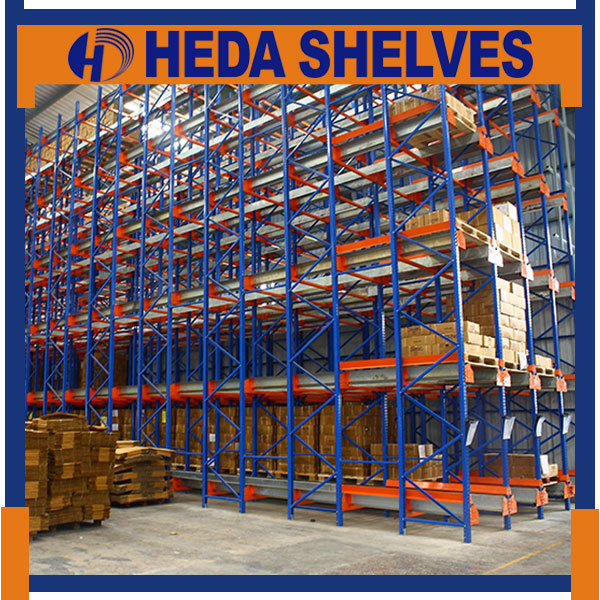

Original HEDA warehouse racking installation with tall blue steel frames, diagonal braces, orange horizontal supports and multiple storage levels
Warehouse Installation Reference

Multi-Level Industrial Racking

The original warehouse photograph illustrates a large steel storage structure with upright frames, bracing and multiple storage levels.

Original HEDA warehouse racking illustration showing blue upright frames, orange rail supports and deep pallet storage positions
Original Racking Illustration

Deep-Lane Storage Arrangement

This original product illustration provides a visual reference for the use of multi-deep pallet positions within a continuous steel racking structure.

Warehouse Applications

A Storage Solution for High-Volume Pallet Operations

Shuttle pallet racking is particularly suited to facilities storing substantial quantities of compatible palletized products, where high storage density and reduced deep-lane forklift movement are priorities.

APPLICATION / 01

Food & Beverage Warehouses

Suitable for bulk palletized goods where substantial quantities of the same product are stored. Stock rotation arrangements should be selected according to batch and shelf-life needs.

APPLICATION / 02

Cold Storage Facilities

High-density pallet lanes can help make use of costly temperature-controlled warehouse space. Shuttle suitability, batteries, materials and controls must be verified for the required operating temperature.

APPLICATION / 03

Manufacturing & Distribution

Provides organized bulk pallet storage for facilities handling finished goods or repeated product batches. The storage layout can be planned around pallet quantities, handling equipment and required throughput.

Custom System Planning

Engineered Around Your Pallets and Warehouse

A shuttle racking project requires coordination between pallet characteristics, steel rack geometry, shuttle performance and warehouse operations.

HEDA SHELVES can discuss a project-specific storage configuration based on your warehouse dimensions, expected pallet loads, storage quantities and inventory handling needs.

Important Engineering Review

Final pallet capacity, lane depth, storage levels, rail design, shuttle model, operating functions and installation requirements must be confirmed through the approved project design.

Information Required for Your Proposal

  • ✓ Warehouse floor plan, dimensions and available clear height
  • ✓ Pallet length, width, height, construction and maximum loaded weight
  • ✓ Required pallet quantity, number of SKUs and planned storage depth
  • ✓ Preferred FIFO or LIFO stock rotation and loading/unloading arrangement
  • ✓ Forklift specifications, handling equipment and access requirements
  • ✓ Expected daily pallet movements and operating temperature conditions
  • ✓ Required shuttle controls, inventory identification or system integration

Additional engineering information may be required to determine shuttle compatibility and verify the final rack structure.
