Push Back Racking System For Warehouse

No.PBRS001
The Push Back Racking System is a warehouse storage solution designed to maximize space utilization and streamline the handling of palletized goods.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / HIGH-DENSITY STORAGE

High-Density Storage. Easy Pallet Access.

HEDA SHELVES Push Back Racking System is designed for warehouses seeking higher pallet storage density without requiring forklifts to enter deep storage lanes. Using inclined rails and nested pallet carts, the system allows multiple pallets to be stored in depth while loading and unloading take place from the same working aisle.

High-Density Storage LIFO Inventory Nested Cart System
HEDA SHELVES push back pallet racking system with blue upright frames, orange support beams, multiple nested carts and palletized wooden crates
Why Push Back Racking

Increase Storage Density Without Deep-Aisle Forklift Entry

Push back racking combines compact pallet storage with front-aisle access, making it a practical option for warehouses handling multiple pallets of the same product reference.

01 / STORAGE

Multi-Deep Pallet Storage

Multiple pallets are stored in depth on nested carts, allowing more pallet positions within each rack lane than a standard single-deep selective arrangement.

02 / ACCESS

Single-Aisle Loading and Retrieval

Both loading and unloading are performed from the front of the storage lane. Forklifts do not need to travel inside the racking structure during normal pallet handling.

03 / OPERATION

Gravity-Assisted Pallet Return

When the front pallet is removed, the remaining loaded carts advance toward the picking face under gravity through the inclined rail system.

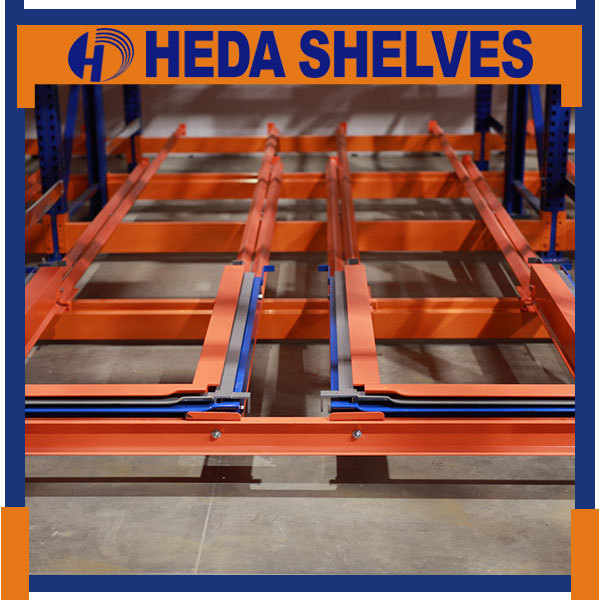

Actual HEDA push back racking nested pallet carts and steel rail structure photographed from the loading face
Actual HEDA nested cart and rail arrangement
Working Principle

How Does Push Back Racking Work?

Push back racking uses a Last-In, First-Out (LIFO) storage sequence. Pallets are loaded onto rolling carts along inclined rails, with each newly loaded pallet pushing the previous loads farther into the lane.

01

Load the First Pallet

A forklift places the first pallet onto the front cart at the loading face of the rack.

02

Push Previous Pallets Back

When another pallet is loaded, the forklift pushes the previous loaded cart backward along the inclined rails, making room at the front.

03

Store Multiple Pallets in Depth

The process continues until the configured pallet positions within the storage lane are occupied.

04

Retrieve from the Front

The latest pallet is removed first. The remaining loaded carts roll forward under controlled gravity, bringing the next pallet to the loading face.

Inventory principle: Push back racking follows LIFO stock rotation. It is not suitable where strict FIFO retrieval is required from each individual storage lane.
Structural Details

The Components Behind Reliable Push Back Storage

The system combines nested steel pallet carts, inclined running rails and supporting rack frames. Each component must be selected to suit the pallet loads and required storage configuration.

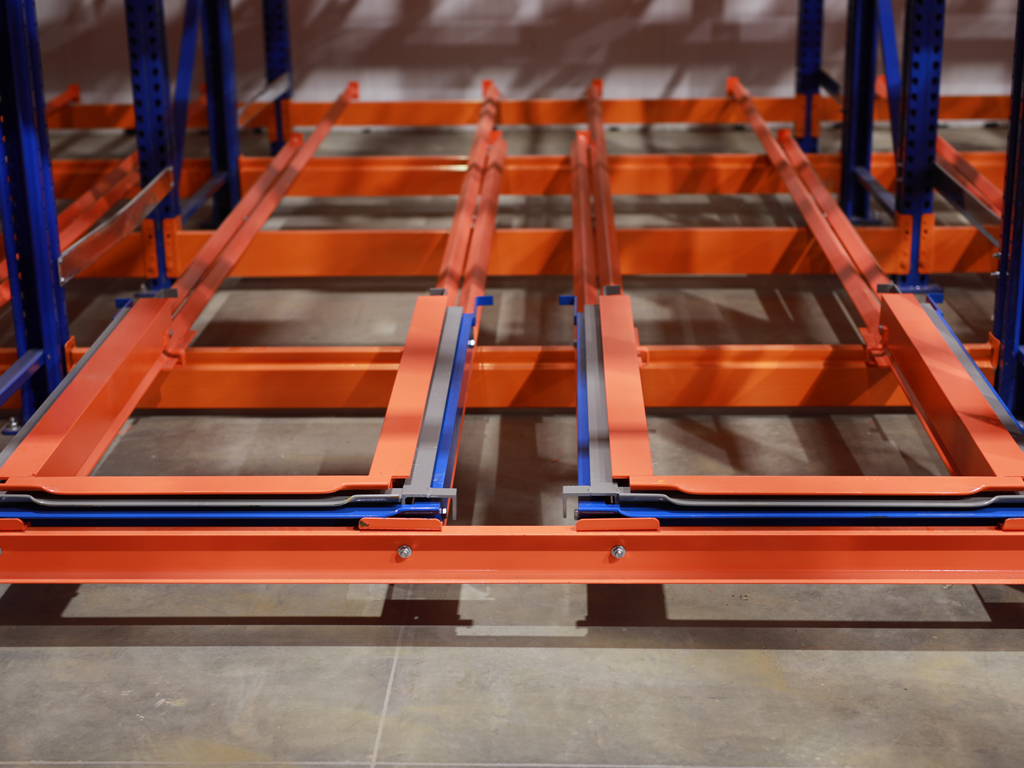

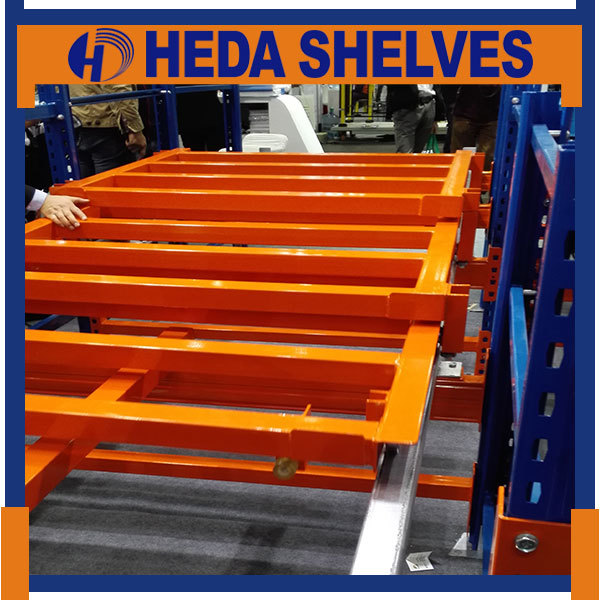

HEDA original orange nested pallet carts arranged at different depths on metal rails with blue rack uprights
Component Detail 01

Nested Steel Pallet Carts

The steel carts provide pallet support positions inside each storage lane. Their nested arrangement allows successive carts to move along the track as additional pallets are loaded or retrieved. Cart dimensions and load ratings depend on the approved design.

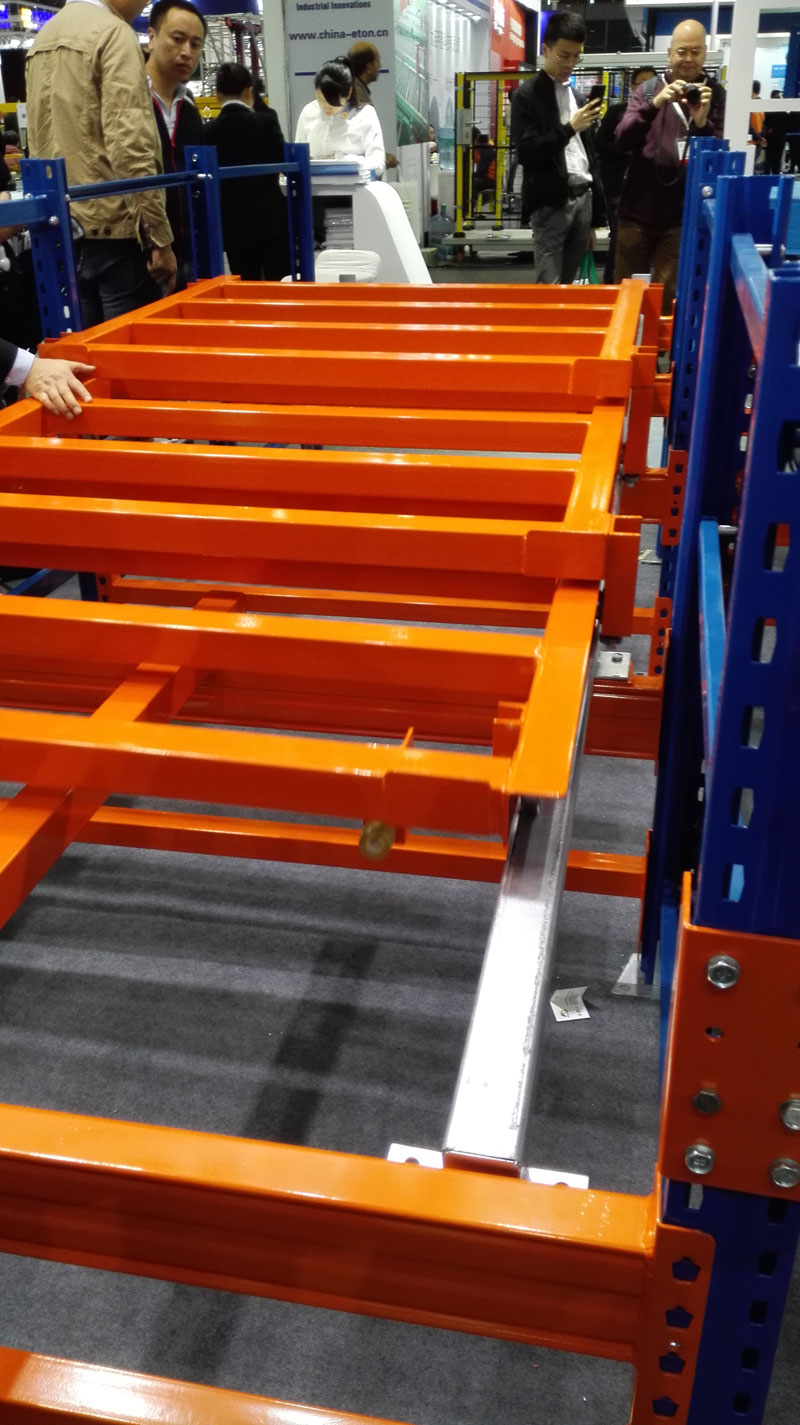

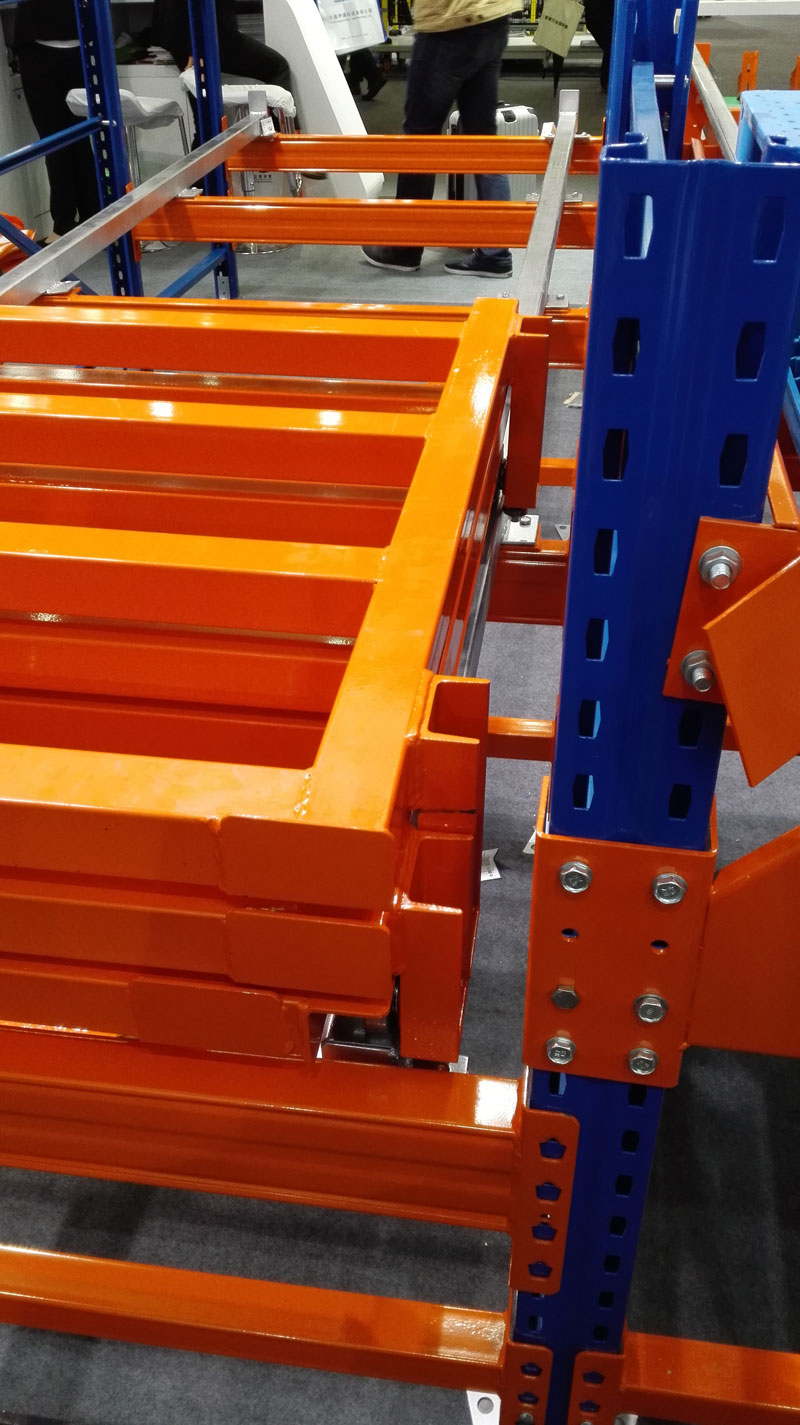

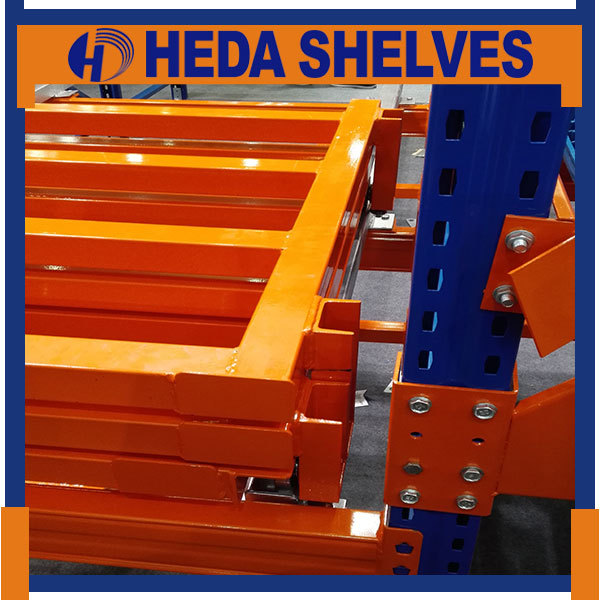

Close-up of HEDA push back racking showing orange cart frame, steel track and bolted connection to blue perforated upright
Component Detail 02

Running Rails & Structural Connections

The inclined rail system guides the nested carts through the storage lane. Steel rack uprights, beams and connecting components support the cart and pallet loads. Rail geometry and connections are determined according to the required system configuration.

Upright Frames & Bracing

Form the primary supporting structure for multi-level pallet storage.

Nested Cart Assemblies

Support palletized loads and move along the designated running rails.

Rail & End-Control Components

Guide the cart movement and provide the required travel limits according to the system design.

Real Warehouse Reference

See the Push Back Racking Structure in a Warehouse

The original HEDA installation image shows multi-level push back racking with steel upright frames, cart lanes and a shared front forklift operating aisle.

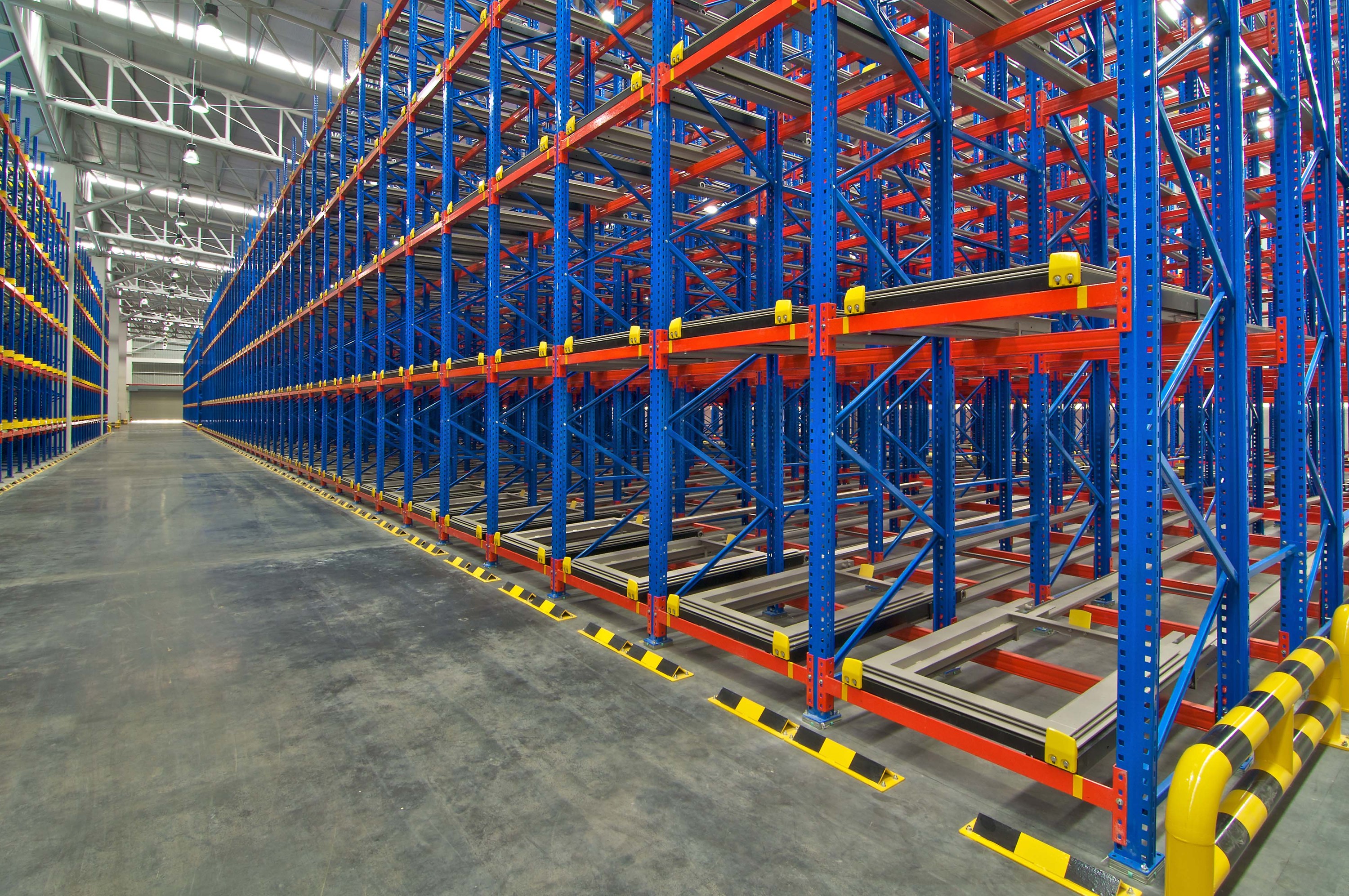

Actual industrial warehouse push back pallet racking installation with blue steel uprights, orange beams, multiple inclined storage lanes and protected aisle entrances

Deep Pallet Storage with Front-Aisle Accessibility

The installed system illustrates how multiple push back storage lanes can be arranged across different rack levels, allowing forklift access from the front operating aisle while using the available warehouse height and depth.

Industry Applications

Where Push Back Pallet Racking Makes Sense

Push back racking is well suited to palletized goods with relatively high quantities per SKU, where LIFO stock rotation is acceptable and warehouse space is a priority.

APPLICATION / 01

Manufacturing Warehouses

Store production batches, raw materials or finished goods in compact pallet lanes where multiple pallets of the same product can be grouped together.

APPLICATION / 02

Bulk Distribution Storage

Manage substantial quantities of palletized inventory where reducing aisle requirements and maintaining accessible lane entrances are important operational considerations.

APPLICATION / 03

General Industrial Storage

Suitable for compatible packaged products and bulk pallet inventories where stock rotation does not require direct access to every individual pallet.

System Selection

Is Push Back Racking Right for Your Warehouse?

Push back racking can be a practical choice when you want higher storage density while keeping forklift handling at the front of each lane.

However, the right solution depends on pallet quantity, SKU distribution, stock rotation requirements and operational needs.

Key consideration: Each storage lane generally holds pallets with compatible handling characteristics. Individual pallets stored behind the front position are not directly accessible until the pallets in front have been removed.

Key Factors Before Choosing Push Back Racking

01

Inventory Rotation

Best suited to inventory that can operate with LIFO pallet retrieval.

02

Pallets per SKU

Particularly relevant when multiple pallets of the same product can be stored together within a lane.

03

Pallet Compatibility

Pallet dimensions, bottom construction, load distribution and weight must be compatible with the selected carts.

04

Forklift Operation

Forklift capacity, mast height, working aisle and loading method must suit the proposed layout.

Custom Engineering

Designed Around Your Pallets and Warehouse

Push back racking requires the rack structure, nested carts and running rails to be engineered together.

HEDA SHELVES can discuss a project-specific layout based on your warehouse dimensions, pallet characteristics, required storage density and material handling needs.

Engineering Review Required

Final storage depth, load capacity, rail inclination, cart design, rack dimensions and protective accessories are subject to the approved project design.

Information Required for Your Racking Proposal

  • ✓ Warehouse floor plan, building dimensions and available height
  • ✓ Pallet dimensions, construction and maximum loaded weight
  • ✓ Required pallet storage quantity and number of SKUs
  • ✓ Preferred pallet positions per lane and number of storage levels
  • ✓ Forklift model, lifting capacity and aisle requirements
  • ✓ Inventory rotation requirements and expected pallet movements
  • ✓ Warehouse environment, installation location and any special operating conditions

Additional information may be requested to determine the final rack layout and verify cart and rail compatibility.

HEDA SHELVES · FACTORY-DIRECT SOLUTIONS

Planning a Push Back Pallet Racking Project?

Share your warehouse layout, pallet specifications and storage requirements with our team to discuss a customized push back racking solution.

GET A CUSTOM QUOTE   →
