The SGS09 convenience store gondola features a broad header-sign panel above a punched metal backing, adjustable shelf-support positions and a lower base display. Its silver-gray metal appearance creates a coordinated presentation for retail and supermarket merchandise.
The original illustrations show a single-facing fixture with three elevated metal shelves and one base shelf. Shelf levels, size, color and material specifications can be discussed according to the retail project.
Plus one lower base display
50 / 60 / 70 / 80 Series
Single-sided in the original images
SGS09 differs from conventional plain-back supermarket shelving through its prominent upper signage area and closely spaced square perforations in the metal backing. The slotted uprights support its metal shelf arrangement.
A rectangular metal-looking display panel extends above the top of the perforated backing. The original supplier renderings show both blank and placeholder-logo versions of this header.
The panel is visibly punched with small, closely spaced square openings. This backing should not be confused with round-hole pegboard or horizontal metal slatwall systems.
The original SGS09 illustrations show three elevated metal shelves connected to rectangular-slotted uprights by formed triangular support brackets, above a metal base shelf.
These original HEDA illustrations present the SGS09 structure from a front-facing and an angled view. Their visible features include the top header, punched metal backing, side uprights and shelf-support brackets.
The front view highlights the repeated square punched-hole pattern across the back panel and the uniform width of the shelf tiers. A plain rectangular header sits above the main display.
This perspective provides a clearer view of the projecting metal shelves, their support brackets and the base depth. The rectangular mounting slots are visible along the vertical uprights.

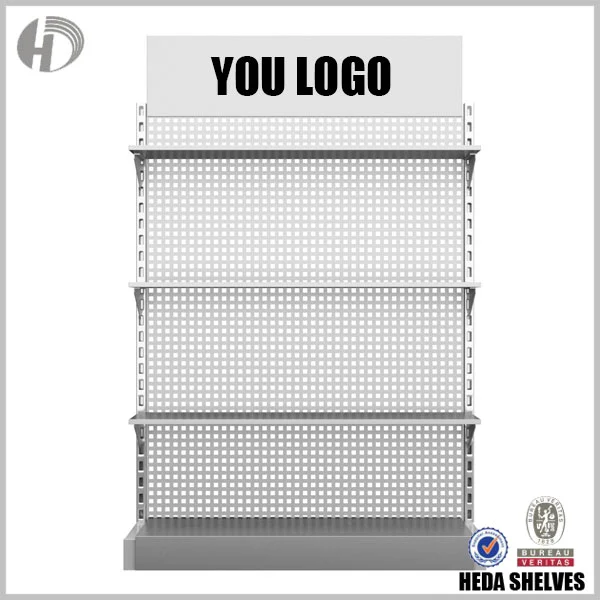

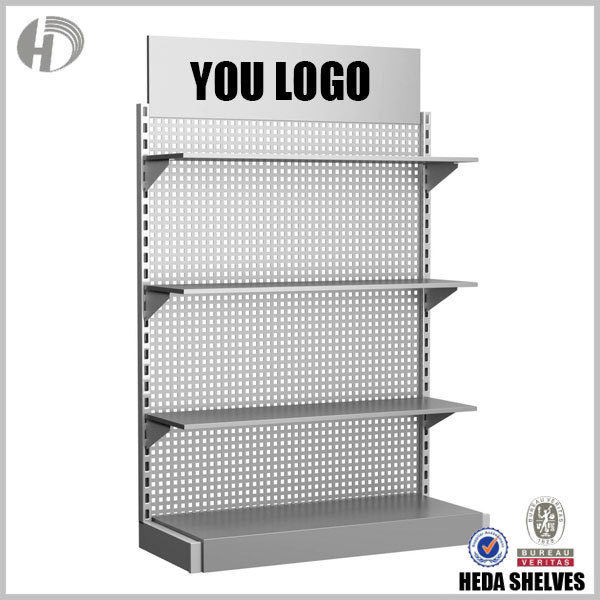

The SGS09 design includes a large panel at the top of the shelving frame. In the original product gallery, the words “YOU LOGO” appear as sample placeholder artwork.
This illustrates a potential position for store branding or department identification. Custom graphics and printed signage should be confirmed separately.
Discuss custom store logos and approved branding artwork for the header area.
Consider category names or merchandise identification for selected store zones.
Confirm the required printing, header material and installation method in the quotation.
HEDA publishes four specification series on the original SGS09 product page. The table below retains the stated loading figures, dimensions, upright sections, back-panel thicknesses and support thicknesses.
Swipe horizontally to compare all four series →
| Specification | 50 Series | 60 Series | 70 Series | 80 Series |
|---|---|---|---|---|
| Published Load-Bearing | 50 kg | 60 kg | 80 kg | 100 kg |
| Length mm | 680 / 900 | 760 / 900 | 900 / 1200 | 900 / 1200 |
| Listed Width mm | 300 Fixed | 350 Fixed | 400 Max. 450 | 450 Max. 500 |
| Height Range mm | 1200–2400 | 1200–2400 | 1150–2350 | 1150–2350 |
| Upright Profile mm | 30 × 50 × 1.2 | 30 × 60 × 1.5 | 30 × 70 × 1.8 | 30 × 80 × 2.0 |
| Back Panel Thickness mm | 0.5 | 0.5 | 0.6 | 0.6 |
| Listed Laminate Thickness mm | 0.6 | 0.6 | 0.7 | 0.7 |
| Arm Support Thickness mm | 2.0 | 2.0 | 2.2 | 2.2 |
SGS09 can be customized based on retail space, required display loads and store color preferences. To prepare an accurate quotation, provide the main project information below.
Provide the available store dimensions, wall positions, intended shelving locations and circulation space. A floor plan is recommended.
Select a preferred series or provide the required bay length, overall height and shelf depth for technical review.
Share the product categories, typical packaging dimensions and expected load per display level, including any heavier merchandise.
Specify the frame color, desired surface treatment, number of shelves and whether a customized header graphic is required.
The SGS09 series is positioned for convenience stores and supermarkets. Its punched metal backing, display shelves and overhead signage area can be considered for different retail merchandise categories.
Organize packaged daily essentials, snack products and suitable convenience store merchandise on appropriately sized metal shelves.
Plan shelving runs around grocery categories and store circulation, with the required shelf heights and depths selected for the product range.
Use the upper sign-panel area as a potential location for store or department identification, subject to approved artwork and included signage components.
These purchasing considerations help clarify series selection, custom dimensions, installation and component requirements before the final quotation.
Yes. HEDA's SGS09 listing states that specifications, sizes, colors, materials and surface treatments may be customized according to project requirements.
HEDA describes main racks and add-on racks for modular supermarket shelving. A main rack begins a run with two uprights, while an add-on section continues with one shared upright. Confirm SGS09 module compatibility and quantities before ordering.
HEDA offers floor-plan and 3D drawing support for retail projects. Share the store dimensions and preferred shelving style for a suitable design proposal.
HEDA describes flat-packed export packaging and provides step-by-step installation guidance. Final packing, component quantities and installation details should be confirmed with the order.
Send HEDA SHELVES your floor plan, preferred SGS09 series, overall dimensions, shelf quantities, merchandise loads and required color or signage details. Our team can review the configuration and prepare a quotation based on your store requirements.
Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.
We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.
Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.
Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.
Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.
Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.
Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:
Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.
Our standard payment terms are:
We can arrange shipment using the following methods:
Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.
If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.
Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.
Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.
Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.
We provide step-by-step installation drawings for each type of shelving and racking system.
Our experienced team supports customers throughout the design, production and after-sales stages.
Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.
Other packaging options, such as wooden boxes, are also available according to customer requirements.
The main difference is the number of upright frames required.
Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.
