Multilayer Mezzanine Platform Shelving System

No.00291
Discover our innovative Multilayer Mezzanine Platform Shelving System - the ultimate storage solution to optimize space, increase efficiency, and enhance warehouse organization. Invest in the best industrial shelving for your business.
Get A Quote
Add to Quote List View Quote List
Download
View all downloads

  • Description

  • Specification

  • FAQ

HEDA SHELVES / MULTILAYER MEZZANINE STORAGE PRODUCT NO.00291
Custom Steel Mezzanine & Integrated Shelving

More Storage. One Steel Structure.

HEDA SHELVES Multilayer Mezzanine Platform Shelving System combines elevated steel flooring and warehouse storage shelving to utilize available building height more effectively. Product No.00291 is presented through real installation photographs showing blue perforated upright frames, orange supporting beams, silver-grey steel platform panels and integrated lower-level shelving. Its modular construction supports project-specific arrangements for warehouse storage, elevated access and additional storage levels. Platform dimensions, shelving capacity, load requirements and access arrangements are determined according to the approved warehouse design.

Multi-Level Storage Steel Platform Construction Custom Warehouse Design
Original HEDA No.00291 warehouse mezzanine installation showing tall blue steel frames, orange support beams, grey elevated metal decking, lower storage racks and an installer working on the upper structure
Original HEDA No.00291 mezzanine racking installation photographed during construction.
300–1,000 kg/m² Published floor loading range; project-dependent
2–4 Levels Multi-tier configurations, customization available
2,200–2,700 mm Manufacturer reference for space between floors
Cold-Rolled Steel Main material listed by manufacturer
Original Mezzanine Installation

Examine the Actual Elevated Steel Floor

The original manufacturer photographs include a clear view of the upper platform surface. Silver-grey metal decking panels extend across the elevated area, with raised surface patterns and visible panel joints. This distinguishes the featured installation from a plywood-only mezzanine floor.

Original HEDA No.00291 upper-level mezzanine platform photograph showing silver-grey raised-pattern steel floor panels and their joints during an on-site installation
Actual upper-level steel deck showing the patterned metal surface and panel arrangement.
Platform Decking Detail

A Continuous Metal Floor Surface

The photograph provides a direct view of the metallic surface used for the upper platform. The decking has a visible raised surface profile and repeated panel joints. Suitable floor decking must be selected according to its support arrangement, required load capacity, walking conditions and relevant safety requirements.

Visible finish: Silver-grey patterned metallic surface.
Panel arrangement: Multiple adjacent steel deck sections.
Engineering check: Thickness, span, deflection and fixings.
Operational check: Walking loads, concentrated loads and suitable access.
Floor material clarification: The raised pattern visible in the photograph identifies the appearance of the steel decking. It does not establish a certified slip-resistance classification, steel thickness or safe working load. The final rated floor performance must be confirmed in the engineering specification.
Real Lower-Level Racking

Storage Shelving Beneath the Elevated Platform

The original No.00291 gallery also shows the shelving system located below the mezzanine floor. Blue upright frames, diagonal braces, orange load beams and light grey storage surfaces form an integrated lower-level arrangement.

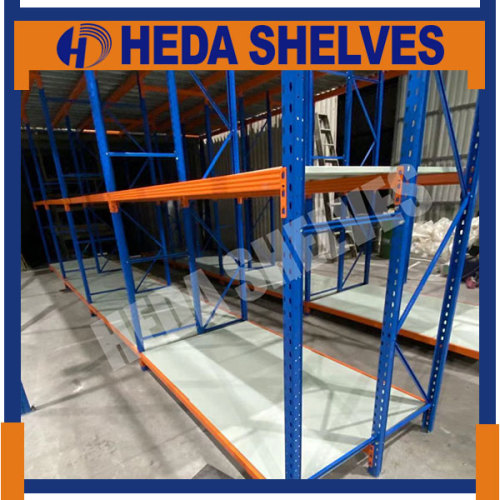

Original HEDA No.00291 close-up of blue perforated upright frames, blue diagonal bracing, orange storage beams and light grey solid lower-level storage surfaces
Original Structural View / 01

Integrated Rack Frames and Shelf Levels

The original photograph shows blue perforated uprights connected to orange horizontal beams. Blue diagonal bracing forms part of the frame structure. Light grey solid shelf surfaces are visible at the lower storage level. Rack bay dimensions and allowable shelf loading must be specified separately from the mezzanine platform capacity.

Visible: upright hole profiles, orange beams, blue braces and solid lower storage surfaces.

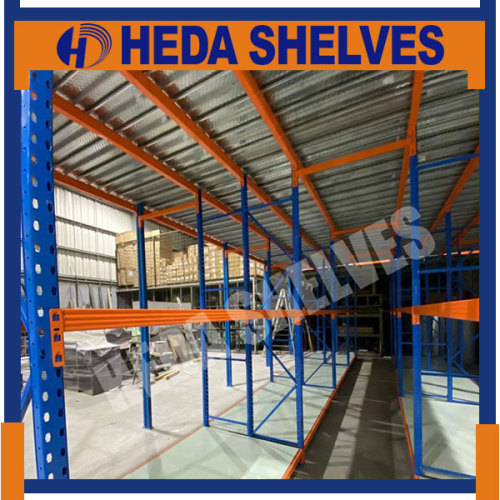

Original HEDA No.00291 warehouse view beneath the mezzanine showing orange overhead steel supports, blue braced rack frames, light grey solid shelving and an aisle between storage bays
Original Structural View / 02

Lower Storage Bays and Access Space

This installation photograph shows a longer perspective through the lower-level racking. Orange supporting beams and the metallic platform structure are visible above the shelving. The ground-level layout includes several storage bays and an internal aisle. Storage capacity, aisle width and material handling methods must suit the final warehouse plan.

Visible: overhead platform supports, blue rack frames, storage surfaces and ground-level circulation.

Storage load distinction: The lower grey shelving surfaces and elevated steel platform serve different functions. Their load ratings must be determined independently. The published mezzanine floor load range should not be applied directly to each individual storage shelf.
Platform Support Construction

Understand the Steel Structure Beneath the Floor

Two further original photographs show the platform from below. These views reveal the underside of the metallic floor and the orange supporting steel members. They provide useful visual references for understanding how the elevated platform is assembled.

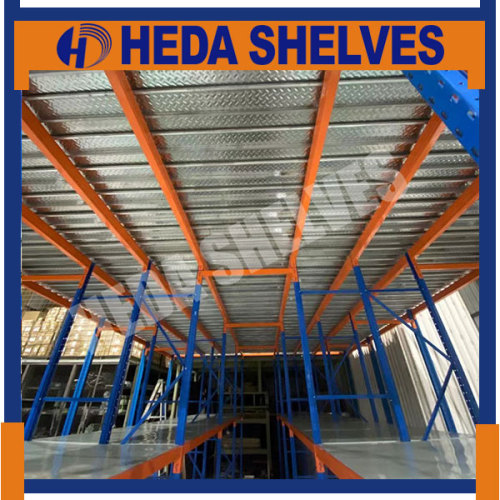

Original HEDA No.00291 underside mezzanine construction photograph looking upward at silver-grey profiled steel floor decking and orange support beams between blue steel uprights
Structural Underside / 01

Decking and Orange Steel Support Members

Viewed from the warehouse floor, the photograph reveals the underside profile of the metallic platform decking. Orange steel members extend beneath the floor panels. Blue braced upright frames connect with the supporting structure. The final load path and member dimensions must be confirmed in the project engineering drawings.

Visible: grey profiled floor, orange support members and blue steel frames.

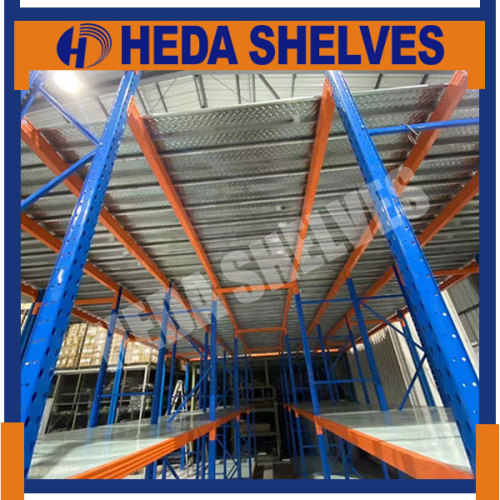

Original HEDA No.00291 view along the underside of an elevated mezzanine showing parallel orange steel beams supporting corrugated grey metal decking above a network of blue braced steel frames
Structural Underside / 02

Repeated Beams Across the Mezzanine Structure

This view follows the underside of the platform along the warehouse. Parallel orange supporting members and metallic floor panels form a repeated structural arrangement. The regular spacing visible in the photograph is part of this specific installation. Actual support spacing, member sections and floor loading must be determined from the approved design.

Visible: repeated orange beams, profiled steel decking and blue support frames.

Engineering clarification: The number and arrangement of supporting members visible in these photographs should not be used as a universal design standard. Mezzanine spans, support spacing, connections and column capacities require project-specific structural verification.
Structural Design Principles

The Platform, Beams and Frames Must Work Together

A mezzanine racking installation is a complete load-bearing system rather than an independent floor panel or storage rack. The allowable loads must be checked through the full supporting structure.

01

Goods and Operating Loads

Identify stored goods, personnel, shelving, equipment and any heavy concentrated loads.

02

Metal Deck and Supports

Verify floor panel capacity, supporting spans, deflection and panel connections.

03

Steel Beams and Frames

Check orange load-supporting members, blue steel frames, bracing and connections.

04

Anchors and Foundation

Review base connections, floor capacity, structural stability and site conditions.

Published floor load range: HEDA lists 300–1,000 kg/m² as a reference for different mezzanine configurations. This does not guarantee that the photographed No.00291 structure supports 1,000 kg/m². The final allowable distributed load, point loads and moving equipment loads must be confirmed through the approved engineering design.
Mezzanine Floor Material Options

Select the Right Flooring for Your Application

The actual No.00291 installation photographs show patterned steel platform decking. HEDA also lists other floor material options for customized mezzanine configurations. The final choice depends on structural loading, material handling and local building requirements.

FLOORING OPTION / 01

Steel Decking

Steel decking is the flooring type visibly featured in the No.00291 product photographs. The approved panel profile, material specification, supports and safe working load must be confirmed for each project.

FLOORING OPTION / 02

Galvanized Sheet

HEDA also lists galvanized sheet among its mezzanine flooring options. Material thickness, structural spans, loading and installation details must be selected according to the final project requirements.

FLOORING OPTION / 03

Wood Plywood

Plywood is another manufacturer-listed floor material. Its suitability depends on the intended loads, board specifications, support spacing, environmental conditions and applicable fire requirements.

Material options: These are alternative flooring choices, not components necessarily included together in the photographed No.00291 installation. Final floor material, thickness and structural capacity must be specified in the quotation.
Multi-Level Warehouse Operation

Plan Safe Access Before the Mezzanine Goes into Service

The original product photographs document the steel structure and construction details. For a completed mezzanine project, personnel access, exposed edges and goods movement must be planned alongside the structural system.

ACCESS DESIGN / 01

Stairways and Landings

Provide designated access between floor levels. Stair dimensions, handrails, landings and clearances must meet the approved operational and safety requirements. Stairs are not confirmed as included in the photographed supply.

ACCESS DESIGN / 02

Guardrails and Openings

Elevated working platforms require appropriate protection at exposed edges and access openings. Guardrails, loading gates and compatible safety devices should be specified according to the project.

GOODS HANDLING / 03

Vertical Goods Transfer

Goods can be transferred between levels using an approved method, depending on their size and weight. Options may include manual transfer, suitable slides or cargo lifting equipment, where specified.

WAREHOUSE SAFETY / 04

Loading and Circulation

Establish suitable personnel routes, storage areas, transfer locations and permitted handling equipment. All concentrated or rolling loads must be checked against the approved floor design.

Operational clarification: Equipment used to deliver goods to a mezzanine transfer point is not automatically approved to operate on the elevated floor. Forklift or pallet-truck operation on the platform requires specific structural and safety approval.
Custom Mezzanine Engineering

Five Checks Before Finalizing the Project

No.00291 can be configured around the requirements of a warehouse. However, the final platform dimensions, steel sections and access arrangements must suit the actual building.

01

Building Dimensions

Measure warehouse length, width, clear height, existing columns, roof members and overhead building services.

02

Storage and Floor Loads

Confirm required loading in kg/m² together with concentrated loads, stored goods, shelving positions and equipment use.

03

Rack and Platform Structure

Determine the suitable number of levels, support spans, upright arrangement, beam sections and structural bracing requirements.

04

Access and Goods Handling

Plan stair positions, access routes, loading points and goods transfer methods according to warehouse operations.

05

Safety and Installation

Check structural anchoring, existing floor capacity, guardrails, fire protection, emergency access and relevant local building approvals.

Manufacturer Technical Reference

Published Specifications and Custom Options

HEDA SHELVES publishes several reference configurations for No.00291, including loading, floor materials and multi-level arrangements. These provide a starting point for custom warehouse mezzanine planning.

Specification note: The manufacturer's published data should be treated as configuration references rather than the certified engineering values of the pictured installation. Final capacity, support dimensions and safety provisions must be approved for each project.

No.00291 / Product Data

Product No. 00291
Product Name Multilayer Mezzanine Platform Shelving System
Product Category Warehouse Mezzanine Floor Racking System
Main Material Cold-Rolled Steel
Floor Load Range 300–1,000 kg/m²; Configuration-Dependent
Number of Levels 2–4 Multi-Tier; Customizable
Space Between Floors 2,200–2,700 mm; Published Reference
Floor Material Options Wood Plywood, Galvanized Sheet or Steel
Featured Platform Surface Silver-Grey Patterned Metal Decking
Frame Color Blue in Original Photos
Beam Color Orange-Red in Original Photos
Color Options Customizable Upon Request
Main Structure Steel Upright Frames, Supporting Beams, Bracing and Floor Decking
Integrated Storage Lower-Level Shelving with Suitable Storage Surfaces
Goods Handling Manual Handling, Slides, Cargo Lifts or Other Approved Transfer Methods as Specified
Possible Accessories Stairs, Ladders, Guardrails, Lifting Platforms and Additional Shelving as Specified
Dimensions Project-Specific Custom Design
Main Applications Warehouse Storage, Industrial Storage and Multi-Level Inventory Organization
Engineering Approval Required for Structural Loading, Access, Safety and Installation
Warehouse Applications

Multi-Level Storage for Different Industrial Needs

A mezzanine platform shelving system can create additional storage areas within an existing warehouse where the building height, floor capacity and operating conditions are suitable.

APPLICATION / 01

Manufacturing Storage

Organize suitable production components, spare parts and packaged materials across multiple storage levels. The proposed system should match actual goods dimensions and loads.

APPLICATION / 02

Distribution Warehouses

Create additional organized storage locations for cartons and compatible inventory. Goods transfer, access routes and the loading of individual levels require suitable planning.

APPLICATION / 03

Industrial Storage Facilities

Use available warehouse height more effectively by integrating storage shelving beneath an engineered upper platform. The support layout must also preserve suitable ground-level access.

Customized Warehouse Project

Design the Mezzanine for Your Actual Warehouse

HEDA SHELVES can discuss project-specific mezzanine platform dimensions, steel supporting structures, flooring choices and integrated shelving arrangements. Accurate warehouse information and loading requirements help determine the suitable design configuration.

Quotation priority: Please provide the warehouse floor plan, clear height, required number of storage levels and intended platform area. Include the maximum floor loading, any heavy point loads and expected goods handling requirements. These details are important for developing an appropriate structural proposal.

Information Needed for Your Quotation

Warehouse length and width
Clear building height
Warehouse floor plan
Required mezzanine area
Number of storage levels
Clear headroom per level
Type of stored goods
Goods dimensions and weights
Required floor load in kg/m²
Concentrated load requirements
Integrated rack layout
Required shelf load capacity
Preferred floor material
Stairway locations
Guardrail and gate requirements
Goods transfer method
Cargo lift requirements
Trolley or handling equipment
Building services and obstacles
Existing floor and foundation
Local safety requirements
Delivery destination

Final dimensions, steel profiles, safe working loads and accessory quantities are subject to the approved engineering design.

Frequently Asked Questions

Common Questions About Mezzanine System No.00291

What is a multilayer mezzanine platform shelving system?

It is a multi-level storage arrangement combining a load-bearing elevated platform with compatible warehouse racking. The system can provide storage areas at different elevations within the available warehouse height.

What is the load capacity of No.00291?

HEDA lists 300–1,000 kg/m² as a range for different mezzanine configurations. The actual safe working load depends on the platform structure, supporting members and approved engineering design. Individual shelving capacity must be checked separately.

How many storage levels can be built?

The manufacturer's published reference is 2–4 levels, with customization available. The final number of levels depends on warehouse height, required headroom, loading conditions and access requirements.

Does the featured product use steel decking?

Yes. The original No.00291 gallery clearly shows silver-grey raised-pattern metallic platform floor panels. The exact panel specifications and permitted loading must be confirmed for the project.

Can other flooring materials be selected?

HEDA also lists wood plywood, galvanized sheet and steel as possible floor material options. Flooring should be selected according to structural loading, handling needs and applicable safety requirements.

Are stairs and guardrails included?

Stairways and guardrails are among the possible mezzanine access and safety components offered by HEDA. Their configuration, quantity and inclusion must be specified in the final quotation. They should not be assumed from the structural installation photos.

Can goods be moved between floors with a cargo lift?

Cargo lifts are among the possible material handling arrangements listed by HEDA. Lift capacity, floor openings, landing safety, electrical requirements and installation details must be reviewed as part of the overall project.

Is the photographed structure a completed working warehouse?

The original No.00291 images mainly document the mezzanine structure and its installation details. They include visible workers and construction conditions. The photographs should not be interpreted as confirmation of completed operational or safety certification.

Can the mezzanine be installed in an existing warehouse?

A mezzanine can be considered for an existing warehouse where sufficient height, floor capacity and suitable building conditions are available. Structural, fire safety, access and local building requirements must be reviewed before installation.

What information is required for a customized quotation?

Provide a warehouse floor plan, clear building height, intended platform area, number of levels, stored goods, load requirements and preferred handling methods. These details help establish a suitable storage and structural proposal.

HEDA SHELVES / CUSTOM MEZZANINE SOLUTIONS

Planning a Multilayer Warehouse Storage Project?

Share your warehouse dimensions, floor loading, storage requirements and preferred platform configuration. Discuss a customized mezzanine shelving solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

"Engineered Storage Solutions. Reliable Manufacturing. Global Project Support."
Guangzhou Heda Shelves Co., Ltd
QUICK LINKS
STORAGE RACKING SOLUTION
SUPERMARKET SHELVES SOLUTION
Warehouse Racking
Supermarket Shelves
Display Stand
Equipment Facilities
Successful Cases
News
Blog
FEICON 2027
Contact Us
319 Room, 3nd Floor,No.183, Ting Yuan Road, Xin Gang Dong Road, Haizhu District, Guangzhou
heda@hedastorage.com
+86 198 5471 4790
Follow Us
Copyright © 2001-2026 Guangzhou Heda Shelves Co., Ltd. All Rights Reserved.
We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
