Mezzanine Platform Racking System in Warehouse

Desciption
Specification
FAQ

Unlock your warehouse's full potential with our cutting-edge Mezzanine Platform Racking Systems. These groundbreaking storage solutions are expertly designed to help you capitalize on your warehouse's vertical space, leading to an increase in storage capacity, enhanced operations, and a safer working environment.

Our Mezzanine Platform Racking Systems offer a distinctive, space-efficient solution that merges the benefits of traditional racking systems with the adaptability of a mezzanine platform. This ingenious design allows you to establish additional storage levels within your warehouse, considerably expanding your overall storage capacity without the need for an expensive extension.

Advantages:

Space Maximization
Tailored Solutions
Streamlined Operations
Superior Safety
Budget-Friendly

Product name	Mezzanine Platform Racking Systems
Features	Cold-rolled steel
Load capacity	300kg-1000kg per square meter,also according to your needs.
Level	2-4 multi-tier,can be customized.
Space between floors	2200mm-2700mm
Material of floor	Wood plywood, galvanized sheet, steel
Color	Column blue, beam orange red, can be customized
Method of handling goods	By hand items, Slide, Cargo lift, fork
Accessories	Lifting platform/stair/ladder/punching screen/purse Seine/shelf, etc

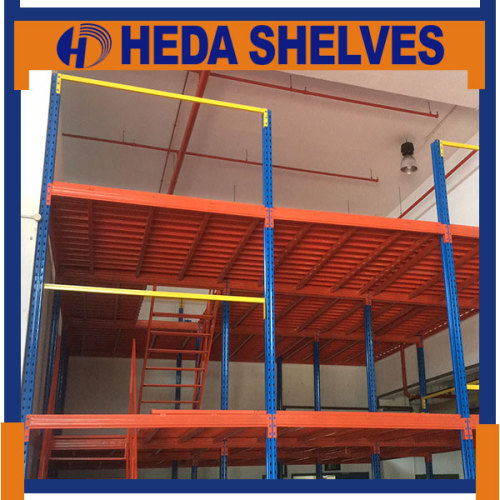

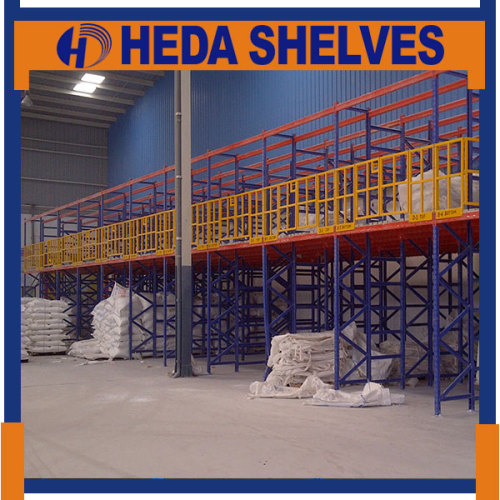

Warehouse Mezzanine Racking System

The warehouse mezzanine floor rack is to build a mezzanine on the existing work site or shelf to increase the storage space. It can be used as a two- or three-layer mezzanine. It is suitable for storing and storing light and small and medium-sized goods, suitable for multi-variety large quantities or multi-variety small quantities of goods, and manual storage and retrieval of goods.

The goods are usually delivered to the second and third floors by forklifts, hydraulic elevators or freight elevators, and then delivered to a certain location by light trolleys or hydraulic pallet trucks. If you are interested in our mezzanine racking system, please click here to contact our online customer service, we will provide you with a professional and reasonable solution.

Corrugated metal

Metal grid

Slotted Metal

Perforated metal

Swing gate

It opens inward to facilitate the input
of merchandise from the exterior. It
incorporates a lower bumper and an
upper hand-operated latch to close it
securely. Two gates can be set up for
a 60" wide access, or a single one for
a 30" wide access.

Up and over pallet gate

This kind of access offers maximum
safety for operators loading and
unloading pallets. The space is always
protected because to access goods
the opposite side of the railing must
be pushed downwards. The height
of the load to be handled may vary,
depending on the sweep of the gate
and the location of the pallet.

Safety zone

This constitutes the railing itself,
creating a space for depositing goods
when a loading and unloading area
is required. The number of chain
guards to install, and the separation
between them, will depend on the
norms in vigor within each country.

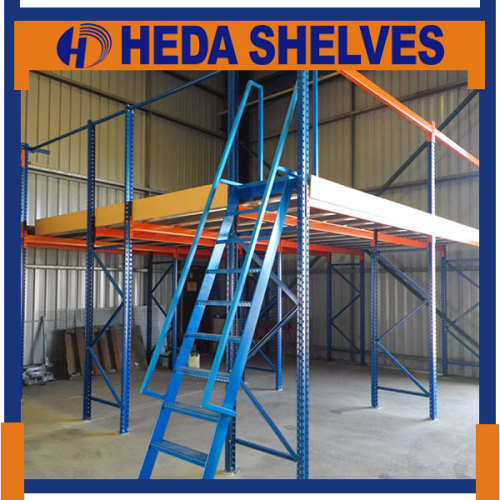

Stairways

Railings

FAQ:

1. Q: Are you manufacture or trading company?

A: We are manufacture. Our factory has been specializing in supermarket shelves,warehouse racks and different,kinds of display stands since 2001.

2. Q: Where is your factory? Can I visit ?

A: Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever you are available.

3. Q: What is your delivery time?

A: In general, within 15 days. It also depends on the order quantity and shelving design.

4. Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T before delivery.

5. Q: Are samples available?

A:Yes, samples are available at any time. We charge some sample cost and will return it during the next order.

6. Q: How could Iinstall the racks?

A: We provide detailed install instruction for every type of shelf. If needed,we can also ask engineers to teach you for free.

7. Q: Could you produce according to customers' design?

A: Sure, we have very rich experience in customizing shelves.

8. Q: Do you produce shelf with different kinds of materials?

A: Yes,our products are mainly made of metal but we also produce accessory shelves or displays with wood,titanium alloy,acrylic,glass,etc.wall recessed jewelry cabinet

9. Q: What are main rack and add on rack?

A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 15 wall racks against the wall, the structure will be 1 main rack 14 add on racks.

10.Q: What is the manner of packing?

A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients' requirement.

1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer. Our factory has been specializing in warehouse racks, supermarket shelves, and kinds of display stands since 2001.

Q2: Where is your factory? Can I visit?
A: Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever you are available.

Q3: Are samples available?
A: Yes, samples are available at any time. We charge some sample costs and will return them during the next order.

Q4: Could you produce according to the customer's design?
A: Sure, we have very rich experience in customizing shelves.
Floor plan / 3D drawing can be provided by HEDA engineers.
Easy graphic integration and modular construction.

Q5: Could I order products in a special size and color?
A: Of course. Custom-size requests are always welcome.

Q6: Do you produce shelves with different kinds of materials?
A: Yes, our products are mainly made of metal but we also produce accessory shelves or displays with wood, titanium alloy, acrylic, glass, etc.

Q7: What is your delivery time?
A: In general, within 15 days. It also depends on the order quantity and shelving design.

Q8: What is the term of payment?
A: Payment terms: 30% of the deposit upon signing the PI, and the balance will be cleared by T/T before delivery.

Q9: How can I deliver my goods?
A: 1)Sea Freight: we will update sea freight once we know your sea port where goods will be delivered
2)Agent Designated By Client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items

Q10: What is your MOQ (minimum order quantity)?
A: 10 sets, we would say a good quantity comes with a good price

Q11: How can I get your quick quote?
A: Since different customers and projects have different requirements for product size and specifications, in general, we need to know the following information to quickly quote:

For Storage Racking
1)The item stored;
2)To be stored in individual boxes or on pallets,
the unit weight;
the dimension: Length*width*height
3) boxes or pallets per level and
total levels of rack you need
4)The space for the storage racking
There will be perfect if a floor plan is provided:)
5)Are any accessories required?
Like wire/metal/wood deck, safety bars and shims
For Display Shelving
1)The selling space of your retail store
There will be perfect if a floor plan is provided:)
2)The product you need to display/ loading capacity
3)Style requirement: metal/wood, size, color
If you are not sure about the above information, please let us know your storage or display needs, then our friendly and knowledgeable sales staff are happy to provide you with a professional shelf solution for your reference.

Q12: How could I install the racks?
A: A step-by-step installation drawing guide will be provided for each type of shelf and rack. Whether in the design, production, or after-sales stage, our experienced professionals will carry you all the way through the process.

Q13: What is the manner of packing?
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packings like wooden boxes are available to meet clients' requirements.

Q14: What are the main rack and add-on rack?
A: The difference between these two kinds of racks is upright. The main rack is the start rack with 2 uprights and the add-on rack is the continue rack with only 1 upright. For example, if there are 15 wall racks against the wall, the structure will be 1 main rack+ 14 add-on racks.
