Medium Duty Cantilever Racking System

No.00300
Discover our top-quality medium duty cantilever racking systems, perfect for storing long, bulky, or irregularly shaped items with ease and efficiency. Enhance your warehouse storage capacity today!
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / INDUSTRIAL CANTILEVER RACKING PRODUCT NO.00300
Original HEDA No.00300 medium duty cantilever racking installation with blue perforated steel upright columns, orange storage arms, diagonal bracing and long steel pipes and metal profiles arranged across several storage levels
Original HEDA medium-duty cantilever rack in a warehouse, with blue steel frames, orange arms and stored long metallic materials.
Medium-Duty Long Material Storage

Better Access. Smarter Long-Load Storage.

HEDA SHELVES Medium Duty Cantilever Racking System, Product No.00300, provides organized horizontal storage for steel pipes, metal profiles, timber and other compatible long or irregularly shaped goods. The manufacturer's original product gallery includes blue-and-orange cantilever racking carrying long metallic materials, as well as different blue steel rack configurations that highlight the structural construction. Projecting storage arms provide an open loading face without front upright columns between the storage positions. Rack height, arm levels, support spacing, steel thickness and allowable loading can be configured according to the stored materials, handling equipment and warehouse layout.

Cantilever Arm Storage Custom Medium-Duty Configuration Steel Pipe & Long Goods
Medium Duty Manufacturer product category; capacity subject to design
Open-Front Arms Accessible horizontal long-material storage
Custom Levels Configure arm elevations and storage positions
Coated Steel Cold-rolled steel with electrostatic spray finish
Original Structural Configurations

Different Cantilever Layouts for Different Storage Requirements

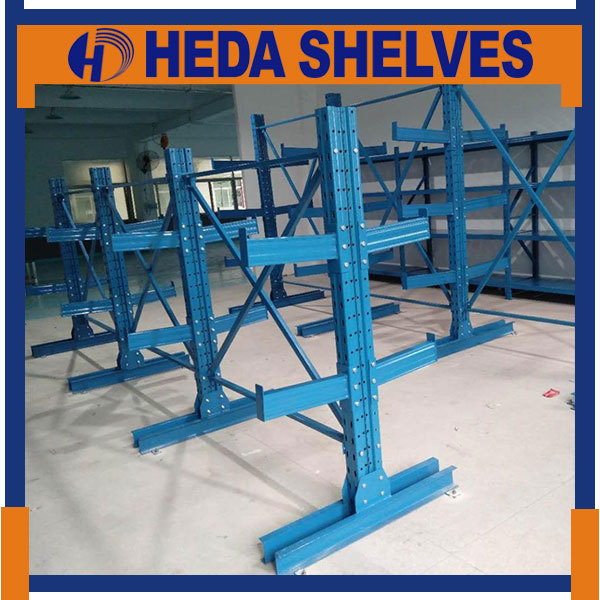

The No.00300 gallery does not show only one finished rack configuration. Two of the original photographs feature completely blue steel cantilever structures without visible stored inventory. These provide useful views of the support arms, upright perforations, rear bracing and bases before a rack is loaded.

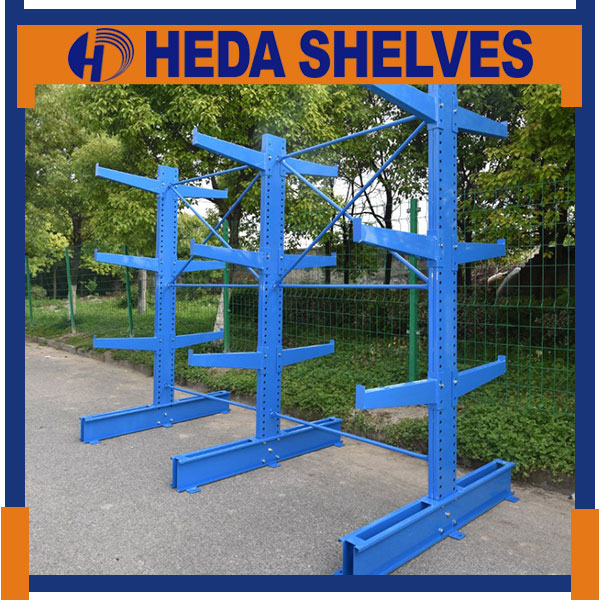

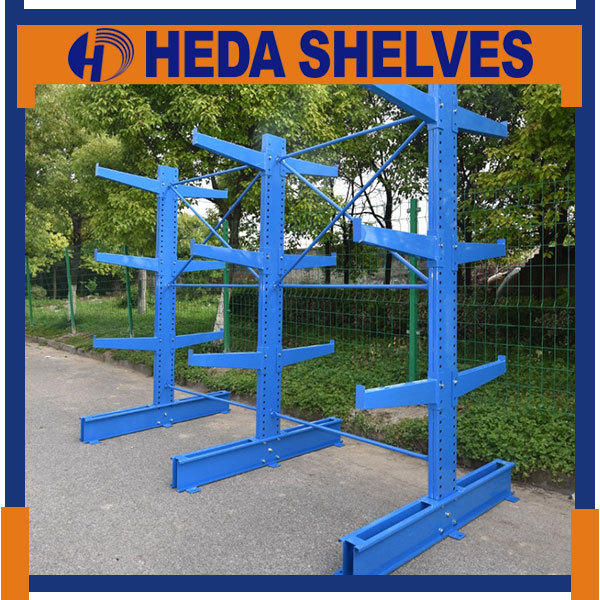

Installation distinction: The first blue rack is photographed outdoors, while the second is photographed indoors. These are different manufacturer examples. An outdoor photograph does not establish an approved outdoor design for wind, corrosion, anchoring or environmental loads. Outdoor suitability must be assessed separately.
Blue and Orange Structural Design

Orange Support Arms, Blue Uprights and Steel Bases

The fourth original product photograph shows a blue-and-orange cantilever rack display. Orange-red projecting arms connect to blue steel columns, with diagonal bracing between the frames. Its open arrangement allows buyers to examine the main components clearly.

Structural Component Overview

Designed as One Supporting System

Cantilever racks carry stored goods through a connected arrangement of arms, columns, bracing and floor-level supports. The complete structure must be selected for the intended loading conditions.

01

Perforated Steel Uprights

Vertical blue columns support the cantilever arm connections and transfer loads into the bases.

02

Orange-Red Cantilever Arms

Horizontal projecting arms provide storage positions for compatible long goods. Visible outer-end upstands form part of this particular configuration.

03

Diagonal Steel Bracing

Blue diagonal members connect the upright frames and form part of the stability system.

04

Steel Base Members

Blue bases extend at floor level beneath the arms. Base design, connections and anchoring must suit the project loading.

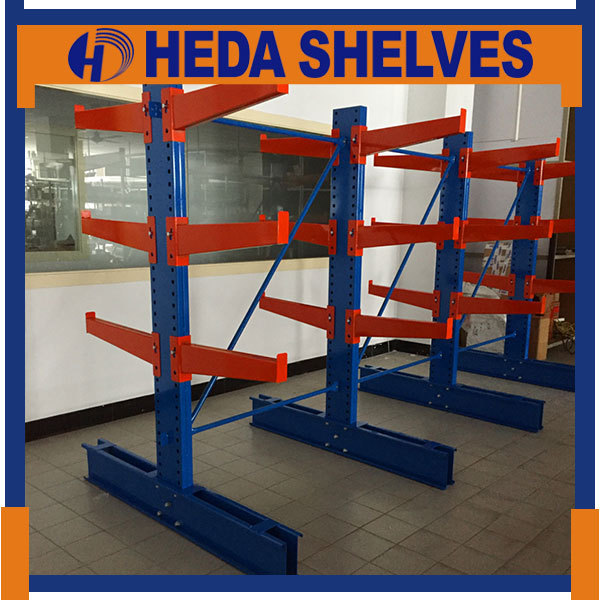

Original HEDA No.00300 blue and orange medium duty cantilever rack display with perforated blue steel uprights, multiple orange-red support arms with raised outer tips, diagonal blue bracing and long projecting steel bases
Original manufacturer blue-and-orange cantilever rack display, showing arm arrangement, bracing and base components.
Structural reference: The display photograph shows the visible configuration of the cantilever arms and frames. It is not evidence of a tested numerical arm capacity. The visible raised arm ends do not guarantee adequate restraint for every pipe diameter or load.
Warehouse Storage Advantages

A Practical Storage Format for Long and Irregular Materials

Conventional shelving and standard pallet racking do not always provide suitable access for long raw materials. Cantilever racking offers a different structural layout built around projecting support arms.

01 / MATERIAL ACCESS

Open-Front Loading

The cantilever arrangement provides horizontal support positions without front upright columns between the loading faces. Suitable forklifts, lifting equipment or other approved handling methods can access loads from the planned aisle.

02 / ORGANIZATION

Separate Storage Levels

Different elevations allow suitable pipes, timber, profiles and other long goods to be organized according to their dimensions and handling needs. The level spacing must provide sufficient clearance for loading and retrieval.

03 / CUSTOM DESIGN

Configuration Flexibility

Rack height, arm projection, support spacing, number of levels and load ratings can be selected for the materials to be stored. Final engineering is necessary to verify the configuration and permissible loads.

Long-Material Warehouse Workflow

From Material Receiving to Organized Retrieval

Cantilever storage performs best when the rack arrangement matches how long materials are received, moved, identified and retrieved. Plan the complete handling process before deciding rack dimensions.

01

Identify the Loads

Group materials according to type, length, cross-section, weight and handling needs. Determine the maximum stored load for each position.

02

Assign Storage Levels

Organize the planned load groups at suitable arm elevations. Confirm required clearances, support points and permitted loading.

03

Load the Rack

Use approved handling equipment and suitable load restraints. Position goods across the intended support arms without exceeding approved load limits.

04

Retrieve Materials

Provide sufficient aisle clearance for safe withdrawal of long goods. Keep access routes clear and inspect the rack for damage.

Engineering and Safe Working Loads

Medium Duty Is a Category. Capacity Requires a Design.

Product No.00300 is described as a medium-duty cantilever rack. However, its official specification lists load capacity as customizable. No universal safe working load per arm or complete rack is published for this model.

01

Load Per Arm

Each cantilever arm must support its share of the stored material without exceeding its rated capacity. The permissible load depends on arm length, cross-section, connection details and load position. Verify the approved rating for the chosen configuration.

02

Long-Load Support

Long steel pipes, profiles and timber sections may need several arms along their length. The correct number and spacing of supports depend on load stiffness, weight distribution and allowable material overhang. Avoid uneven loading between support arms.

03

Upright and Complete Rack

Forces are transferred through the arms to the upright columns, bracing, bases, anchors and supporting floor. The complete rack must be checked for stability, approved loading patterns and operational conditions.

Technical loading note: The number of visible arms in the product photographs cannot be used to calculate a safe working load. A complete medium-duty cantilever rack design should document the allowable load per arm, permissible upright loading and applicable structural limitations. Loading requirements must be verified before installation and operation.
Storage and Handling Safety

Plan for Load Stability, Support and Safe Access

Long materials can introduce special loading problems because of their length, shape, flexibility and handling requirements. The correct storage method should be selected for each material group.

SAFETY / 01

Prevent Cylindrical Loads from Rolling

Round steel pipes and similar materials may roll or shift if they are not properly restrained. Suitable bundling, retaining stops, cradles or other load retention arrangements may be required. The correct method must be approved for the stored load.

SAFETY / 02

Use Appropriate Support Spacing

Long materials need sufficient support points to avoid unintended bending, excessive overhang or uneven arm loading. Support spacing should suit the actual length, stiffness, weight and storage arrangement of the goods.

SAFETY / 03

Match Handling Equipment to the Load

Forklifts, cranes and other lifting equipment may be considered where suitable. Verify lifting capacity, attachment selection, load stability, approach direction and required aisle clearance before handling the goods.

SAFETY / 04

Protect the Supporting Structure

Maintain clear loading aisles and avoid impact to rack uprights, arms and bases. Follow approved installation and loading instructions. Inspect the rack for damage, loosened connections or other visible problems before continued use.

Project-Specific Cantilever Design

Five Decisions That Determine Your Storage Configuration

A suitable cantilever rack should be configured around the goods, warehouse layout and operating method, rather than selected by appearance alone.

01

Material Size and Shape

Identify the length, width, diameter, cross-section and other relevant dimensions of the stored goods. These influence arm projection, support spacing and loading clearances.

02

Load Weight and Distribution

Specify the maximum item or bundle weight and how the load will rest on the arms. Unevenly distributed loads or concentrated forces must be included in the engineering assessment.

03

Rack Geometry and Levels

Define the overall rack height, row length, arm projection, number of levels and vertical storage clearances. All dimensions should be checked against the intended loading and warehouse conditions.

04

Loading Face and Aisle Layout

Determine the required loading access and material-handling route. The manufacturer gallery illustrates different cantilever configurations. Confirm the appropriate single-sided or double-sided arrangement in the project proposal.

05

Floor and Installation Conditions

Review the existing floor, rack location, base support and anchoring requirements. Consider nearby building elements, handling equipment impacts and the applicable installation environment. Final construction must follow approved drawings.

Manufacturer Technical Reference

Medium Duty Cantilever Racking Specifications

HEDA SHELVES offers customizable cantilever racking for industrial long-material storage. Product No.00300 lists dimensions, material thickness, loading capacity, number of storage levels and colors as customizable. The final configuration must meet the actual project requirements.

Specification accuracy: The official page does not provide one fixed arm capacity or universal rack load rating for No.00300. The photographed installations illustrate different rack configurations. Final dimensions, permitted loading and installation requirements must be confirmed in the approved technical proposal.

No.00300 / Product Information

Product No. 00300
Product Name Medium Duty Cantilever Racking System
Product Category Industrial Cantilever Racking
Main Material Cold-Rolled Steel
Product Dimensions Customizable
Steel Thickness Customizable
Load Capacity Customizable; Approved Capacity Required
Number of Levels Customizable
Featured Frame Colors Blue Steel Uprights and Bracing
Featured Arm Colors Blue and Orange-Red in Different Gallery Examples
Color Options Blue, Orange, Black, White, Grey, Red or Customized
Surface Treatment Electrostatic Spray Surface
Surface Features Manufacturer-Listed Anti-Rust and Corrosion-Protection Features
Main Structure Steel Uprights, Cantilever Arms, Bases, Bracing and Connections
Assembly Knock-Down Steel Construction
Main Applications Pipes, Lumber, Steel Profiles and Compatible Long Goods
Use Areas Warehouse, Factory and Suitable Storage Facilities
Customization OEM & ODM Accepted
Warranty Reference Manufacturer Lists 5 Years; Confirm Applicable Terms and Scope
Engineering Requirements Arm Load, Upright Capacity, Structural Stability and Anchoring to Be Confirmed
Industrial Storage Applications

Suitable Storage Options for Different Long Materials

Cantilever racking can be useful for goods that do not fit efficiently within conventional shelving or pallet rack bays. The support arrangement must be selected for the specific materials and operating conditions.

APPLICATION / 01

Steel Pipes and Tubing

Organize compatible steel pipes, tubes and similar cylindrical goods across horizontal support arms. Confirm bundle stability, load distribution and protection against unwanted rolling.

APPLICATION / 02

Timber and Lumber

Store suitable timber packs, wooden sections and long boards at designated arm elevations. Support spacing and material overhang should be selected according to load length and stiffness.

APPLICATION / 03

Metal Profiles and Building Materials

Provide accessible storage positions for compatible long metal profiles, fabricated components and building materials. Material dimensions, load weight and handling equipment determine the appropriate rack configuration.

Custom Cantilever Storage Projects

Specify Your Materials. Plan the Right Rack.

HEDA SHELVES can discuss medium-duty cantilever racking configurations based on material dimensions, maximum loads, storage quantity and warehouse space. An accurate quotation requires enough information to select the arm projection, support spacing, rack height and complete structural arrangement.

Quotation priority: Please provide the material type, maximum length, weight per item or bundle, required storage levels and available warehouse dimensions. Also identify your loading equipment and any special material retention requirements. These details help establish an appropriate rack configuration for engineering review.

Information Needed for Your Quotation

Type of stored goods
Material section shape
Minimum material length
Maximum material length
Material width or diameter
Weight per item
Maximum bundle weight
Required storage quantity
Required arm levels
Preferred rack height
Preferred arm projection
Required rack row length
Available warehouse width
Warehouse clear height
Single or double loading face
Available loading aisle
Forklift or crane details
Material lifting method
Material retention requirements
Permitted material overhang
Existing concrete floor details
Indoor or outdoor installation
Preferred rack color
Project delivery destination

Final structural sections, arm capacity, support spacing, load distribution and anchoring must be confirmed in the approved technical proposal.

Frequently Asked Questions

Medium Duty Cantilever Racking System FAQs

What is a medium-duty cantilever rack?

It is a cantilever storage system designed for suitable long, bulky or irregular materials using projecting support arms connected to steel upright frames. The term medium duty identifies a product category, not one universal safe working load.

What is the load capacity of No.00300?

The manufacturer lists load capacity as customizable. No fixed numerical capacity per arm, upright or complete rack is published for every configuration. The safe working load must be confirmed by the approved design.

What is the difference between light-duty and medium-duty cantilever racks?

Light-duty and medium-duty are general product classifications. A meaningful comparison requires checking the approved capacity, arm dimensions, steel sections, structural bracing and loading conditions of each configuration. A medium-duty label alone does not establish how much additional weight a rack can carry.

Can No.00300 store steel pipes and tubing?

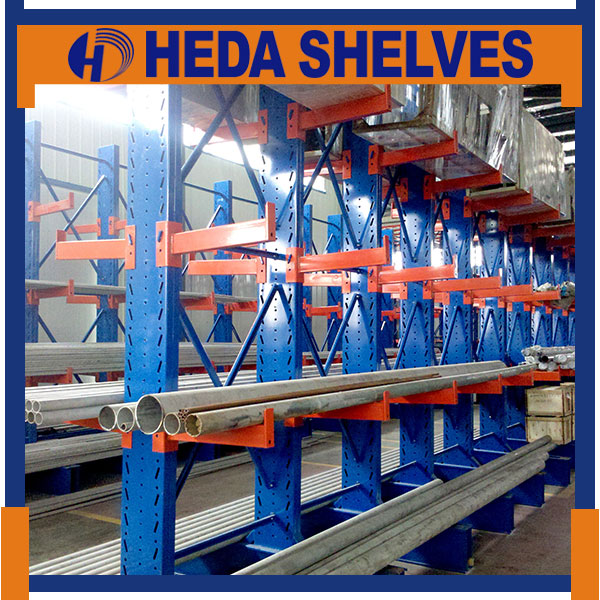

Yes. The original product gallery includes a cantilever installation loaded with long metallic pipes and profiles. The actual support spacing, arm capacity and material retention must be specified for the stored goods.

Can the rack be customized for different storage levels?

The manufacturer lists rack levels and dimensions as customizable. Arm elevations should be selected to provide suitable storage clearance, handling access and structural capacity. Final positions must follow the approved configuration.

Are the all-blue and blue-orange racks the same configuration?

The manufacturer gallery shows different finished rack examples. The color arrangements and structural details should not be assumed identical. The final rack sections, arm arrangement and color must be specified in the quotation.

Is this rack suitable for outdoor use?

One original product photograph shows an all-blue rack outdoors. However, outdoor suitability depends on wind, environmental exposure, corrosion protection, anchoring and foundation conditions. These must be evaluated separately for any outdoor installation.

How many arms are needed to support a long load?

The number depends on material length, stiffness, weight distribution and allowable overhang. Multiple arms may be required to support the load without excessive deflection or uneven loading. The arrangement should be confirmed during engineering.

Can forklifts be used for loading and retrieval?

Suitable forklifts, lifting attachments or other approved handling equipment may be used according to the material dimensions and weights. Confirm equipment capacity, load stability, aisle clearance and safe handling procedures.

What surface treatment does No.00300 use?

The manufacturer lists electrostatic spray surface treatment with anti-rust and corrosion-protection features. Any special environmental or outdoor coating requirements should be confirmed in the quotation.

What information is needed for a customized quotation?

Provide the type, length, dimensions and maximum weight of your stored materials. Include the required storage quantity, rack height, warehouse dimensions and handling equipment. These details support the selection of a suitable cantilever arrangement.

HEDA SHELVES / CUSTOM CANTILEVER STORAGE

Need Medium-Duty Cantilever Racking for Your Warehouse?

Share your material dimensions, maximum loads, preferred arm levels and warehouse layout. Discuss a customized medium-duty cantilever storage solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
