Red-and-silver horizontal refrigerated meat display counter.
The HEDA SHELVES Meat Chiller for Supermarket is a horizontal refrigerated display counter with transparent glass panels, a metal display surface and integrated cooling equipment.
The original MCFS01 design combines a silver-colored upper display structure, white curved end panels and a red ventilated base to create a distinctive supermarket meat counter.
Four published model options
Official specification table range
Depending on selected model
Fan-cooled temperature range

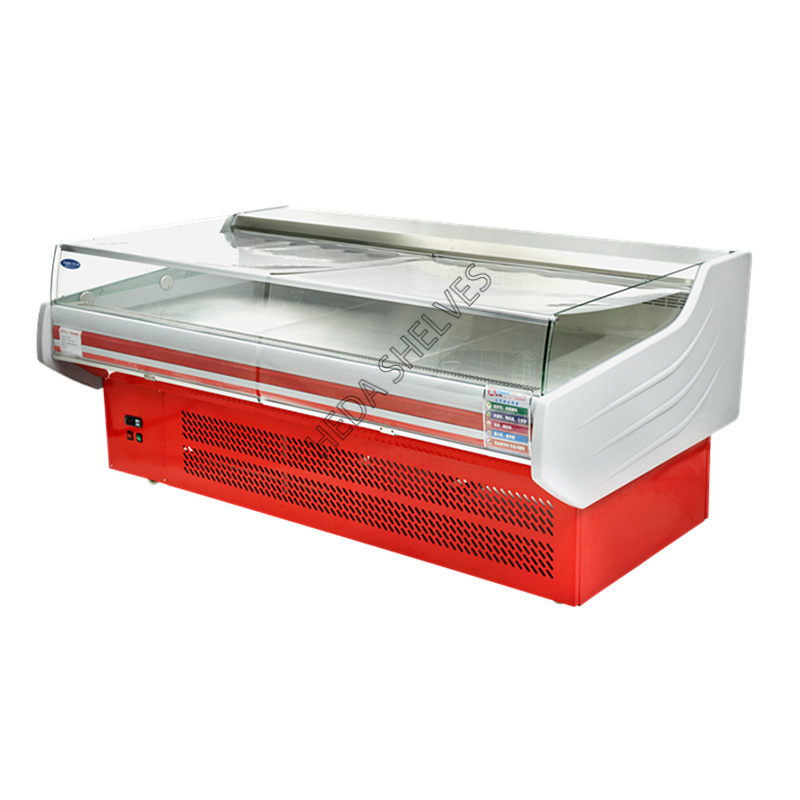

The official product photograph shows a wide, low-profile glass counter above an equipment base. Its distinctive geometry is created by straight transparent glass panels and curved white end housings.

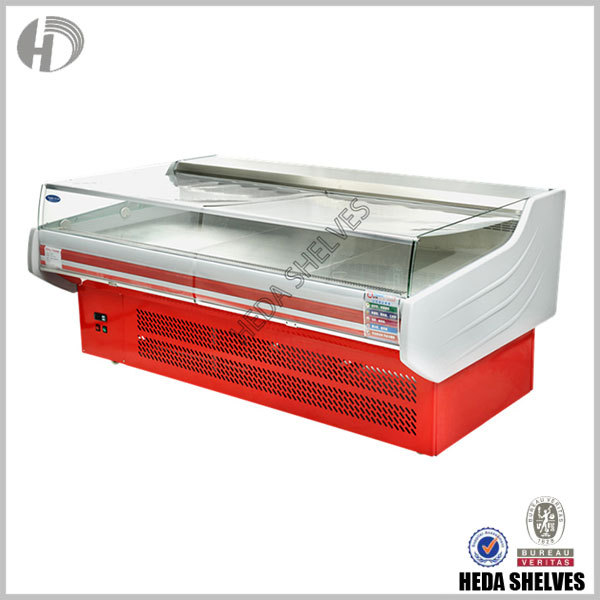

The same original cabinet configuration, presented with manufacturer branding.
The clear upper enclosure allows shoppers to view the display area. Its service opening and glass-access mechanism should be confirmed for the selected model.
The solid white side housings form a smooth, rounded transition around the ends of the glass display counter.
The product specification identifies stainless steel as part of the cabinet materials. The metal interior provides the main merchandise presentation surface.
A long metal structure spans the upper rear section of the case. Its exact construction and lighting installation should be confirmed.
The lower red cabinet features a large perforated front grille, with visible electrical control components near the lower left side.
The manufacturer identifies an integrated compressor arrangement, digital temperature control, LED lighting and wheels among the product features.
MCFS01 is a chilled display counter for projects requiring customer-facing merchandise visibility and organized refrigerated presentation. The final application must suit the products' storage and hygiene requirements.
Transparent front and side glass panels provide clear viewing of the merchandise area from the shopping side of the counter.
Planning Point: Confirm customer sightlines, counter placement and service access.
The wide metal display surface provides a horizontal area for arranging suitable chilled merchandise within the glass display enclosure.
Planning Point: Verify usable display dimensions, tray arrangement and permitted loading.
The manufacturer lists a built-in compressor, fan cooling and temperature controller, combining refrigeration equipment with the display cabinet.
Planning Point: Allow for equipment ventilation, cleaning, power connections and maintenance.
HEDA's MCFS01 product specification describes a fan-cooled meat chiller with an integrated refrigeration system, digital temperature control and LED lighting.
Air cooling, as listed in the manufacturer specification table for the XR series.
Select the actual operating setpoint according to the merchandise and applicable food storage requirements.
The manufacturer's specification identifies forced-air refrigeration for the XR series.
The product description identifies an integrated compressor system inside the counter equipment enclosure.
A temperature controller is listed among the equipment accessories. Confirm the precise model and functions.
LED illumination is specified for the product. Confirm the final lighting position and electrical configuration.
The following figures are reproduced from the MCFS01 technical table. Compare cabinet dimensions, rated power, listed daily consumption, volume and display area.
| Model | Dimensions L × W × H (mm) |
Rated Power (W) |
Listed 24h Consumption* |
Volume (L) |
Display Area (m²) |
|---|---|---|---|---|---|
| XR15 | 1500 × 1180 × 900 | 900 | 15 | 550 | 1.1 |
| XR20 | 2000 × 1180 × 900 | 1500 | 20 | 750 | 1.5 |
| XR25 | 2500 × 1180 × 900 | 2300 | 25 | 940 | 1.8 |
| XR30 | 3000 × 1180 × 900 | 2800 | 30 | 1130 | 2.2 |
Final Technical Data: All values are manufacturer references. Confirm model-specific equipment and final approved specifications before production.
Four published models
Across the XR series
Published manufacturer figures
Meat display equipment requires careful attention to refrigeration conditions, appropriate cleaning procedures and applicable local food-safety rules. Technical suitability should be confirmed for each project.
The original MCFS01 description includes the following technical references.
Panasonic is specified in the product description. Confirm the installed compressor model.
R22 is listed in the original information. Confirm the refrigerant configuration available for your market.
Color-coated steel, glass and stainless steel are identified. Request the exact material grades and surface specifications.
Temperature controller, LED lights and wheels are included in the manufacturer feature list.
Confirm the exact approved product configuration, particularly when the counter is intended for fresh meat or other perishable foods.
Verify the required product temperature, handling procedures and local food-safety regulations for the merchandise being displayed.
R22 is restricted in many markets. Confirm legal eligibility and an appropriate approved refrigerant configuration before ordering.
Request confirmation of food-contact materials, accessible cleaning areas and applicable maintenance procedures where required.
Confirm voltage, frequency, rated power, ventilation clearances and electrical protection at the installation site.
Common purchasing questions about MCFS01, its glass display structure, XR model range and technical configuration.
MCFS01 is a horizontal refrigerated supermarket display counter with transparent glass panels, a metal display area, white curved end housings and a red equipment base. It is designed for chilled food display applications subject to appropriate storage requirements.
The official XR specification table lists air cooling at 0–10°C. The final operating setpoint must be appropriate for the actual food products and relevant local regulations.
The manufacturer lists XR15, XR20, XR25 and XR30 with cabinet lengths of 1500, 2000, 2500 and 3000 mm. All four models are listed with a depth of 1180 mm and a height of 900 mm.
The official MCFS01 photograph shows transparent glass panels surrounding the refrigerated display area. It should not be confused with a completely open-front display cabinet. The exact service access arrangement should be confirmed before ordering.
Yes. The manufacturer's product description lists a built-in compressor and fan cooling. Confirm the actual compressor model, electrical details and service requirements for the chosen configuration.
The published description lists R22 refrigerant. Since R22 is restricted in many countries, buyers should confirm the permitted refrigerant and applicable destination-market requirements before ordering.
The manufacturer lists color-coated steel, glass and stainless steel. Confirm the exact stainless steel grade, glass specification and any required food-contact material compliance in the final technical documents.
The product description lists a temperature controller, LED lighting and wheels among the equipment accessories. Confirm the final supplied component specifications by model.
HEDA SHELVES accepts customized equipment enquiries. Buyers can discuss cabinet dimensions, appearance, material requirements, glass configuration and technical needs, subject to manufacturer review and approval.
Please provide the preferred XR model, required quantity, store floor plan, intended food products, storage temperature, electrical supply, refrigerant requirements, cabinet finish and shipping destination.
Share your preferred MCFS01 model, counter dimensions, display requirements, refrigeration specifications and order quantity with HEDA SHELVES. Our team can review your supermarket counter project and prepare a quotation.
