Large Warehouse Cantilever Racking System Solution

No.00301
Discover the benefits of large warehouse cantilever racking systems, a versatile and efficient storage solution for bulky, long or irregularly shaped items. Boost your storage capacity now!
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / INDUSTRIAL CANTILEVER RACKING PRODUCT NO.00301
Large-Scale Long Material Storage

Designed for Long Loads. Planned for Large Warehouses.

HEDA SHELVES Large Warehouse Cantilever Racking System Solution helps organize long, bulky and irregularly shaped materials across extended warehouse storage rows. Product No.00301 features blue supporting frames, orange cantilever arms and a modular steel structure that can be configured around material dimensions, loading requirements and warehouse operating space.

Original HEDA No.00301 large warehouse cantilever rack installation with long rows of blue steel uprights, multiple orange projecting arms, steel bracing, blue bases and orange floor-level protective rail elements
Original HEDA No.00301 installation: large warehouse cantilever rows with multiple storage elevations.
SYSTEM FOCUS / 01

Extended Rack Rows

Repeated cantilever support positions create organized storage across a longer warehouse area.


SYSTEM FOCUS / 02

Open Loading Faces

Projecting support arms provide access for appropriately handled long materials.


SYSTEM FOCUS / 03

Project-Based Capacity

Arm dimensions, upright spacing and safe working loads are selected according to the actual goods.

Long Rack Rows Repeated cantilever bays for warehouse-scale layouts
Multi-Level Storage Horizontal arms at configurable elevations
Custom Load Rating Arm and upright capacity subject to engineering
Modular Steel System Knock-down structure with customizable dimensions
Warehouse Layout Strategy

A Rack Row Is Only One Part of the Solution

A large warehouse cantilever system must work with the building layout, material flow, storage capacity and handling equipment. The most effective arrangement is based on how long materials are received, stored and retrieved.

01

Plan Rack Row Length

Determine the number of storage positions required along each row. The layout should account for available building length, material dimensions, support spacing and future storage requirements.

02

Coordinate Handling Aisles

Cantilever racks provide open-front access, but the aisle must still accommodate the longest stored goods and the selected lifting equipment. Turning, approach and withdrawal clearances require site-specific planning.

03

Separate Material Categories

Long pipes, steel profiles, timber and other goods can have different support requirements. Storage locations should be arranged according to item dimensions, bundle weight, handling frequency and load stability.

04

Verify the Complete Structure

The final design must coordinate cantilever arms, upright frames, cross-bracing, bases, floor anchors and the supporting floor. A long rack row cannot be rated solely from the number of visible arms.

Original Warehouse Installation

Long Cantilever Rows with Repeated Structural Bays

The second No.00301 manufacturer photograph shows a long continuous cantilever rack installation. Blue upright columns, diagonal bracing and projecting orange arms repeat along the warehouse length, creating multiple storage elevations.

Original HEDA No.00301 long warehouse cantilever rack row featuring repeated blue structural uprights, orange steel arms on several levels, diagonal rear frame bracing and continuous blue steel floor-level bases
Original HEDA large warehouse cantilever installation with repeated bays and long rows.
Warehouse-Scale Configuration

Storage Capacity Starts with Layout

Repeated upright frames allow long materials to be supported at multiple positions along a rack row. The correct number of frames and arms must match the actual materials being stored.

Upright Spacing

Set the distance between support frames according to material length, stiffness and loading.

Vertical Arm Clearance

Allow sufficient space for the stored goods and safe lifting or retrieval.

Support Distribution

Ensure that long loads rest on an appropriate number of arms and do not overload individual support points.

Row Expansion

Additional storage sections may be planned where space and engineering conditions allow. Extensions require review of the whole system.

Photo accuracy: The rack is photographed without identifiable long material bundles on the arms. The image demonstrates structural geometry and row layout, not a verified load test or certified maximum capacity.
Structural Detail

A Closer Look at the Cantilever Arm Construction

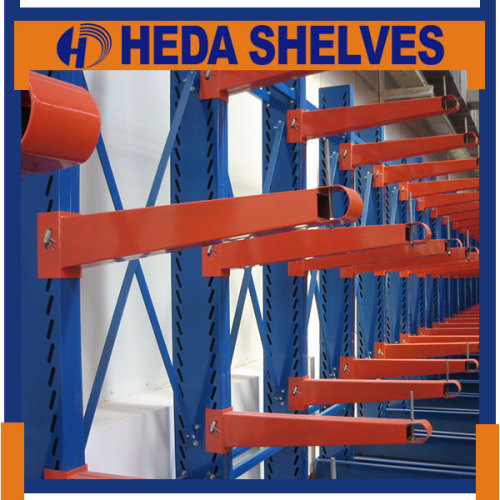

The third original photograph highlights the orange steel cantilever arms, upright connections and visible arm-end geometry. These are important details to review when specifying a long-material storage system.

Arm Engineering

The Arm Is the Primary Load Support

Each projecting cantilever arm transfers its supported load to a vertical upright. Arm projection, section design, connection details and the position of the load determine the permissible arm loading.

Orange Steel Arm Sections

The photograph clearly shows rectangular steel arms projecting from blue perforated uprights.

Upright and Arm Connection

The connections must be selected to transfer the intended loads into the upright structure.

Arm-End Geometry

The visible ends include shaped or fitted steel features. These should not automatically be treated as certified retention systems for round pipes.

Approved Working Load

Each arm must have a verified safe working load appropriate for its length and configuration.

Original HEDA No.00301 close-up of multiple orange hollow rectangular cantilever support arms attached to blue perforated upright columns, with visible steel arm-end fittings and diagonal frame bracing
Original No.00301 arm detail: orange steel cantilevers, blue perforated uprights and visible connection points.
Safety distinction: The arm-end fittings visible in this photograph are structural details, but the image alone does not establish their retention capacity. Steel pipes and other cylindrical goods may require appropriate restraints or bundling to prevent rolling.
Alternative Storage Arrangement

Cantilever Support with Flat Storage Surfaces

The fourth No.00301 gallery photograph shows another cantilever rack installation with blue steel frames, orange structural arms and flat panel-like support surfaces at several levels. This example illustrates a different storage arrangement from the open-arm systems.

Original HEDA No.00301 cantilever racking installation showing blue upright frames, orange projecting structural arms, flat panel-like horizontal support surfaces at different levels and stored goods in an indoor warehouse
Original HEDA warehouse installation showing a cantilever configuration with flat support surfaces.
Storage Surface Planning

Select the Right Support Arrangement

Open cantilever arms are commonly used for suitable long goods. Some applications may require additional flat supporting surfaces or load-spreading arrangements. Such configurations must be engineered according to the actual stored products.

01

Material Contact Surface

Determine whether open arms alone are suitable for supporting the goods.

02

Panel or Decking Specification

Where flat supports are required, confirm their material, dimensions, fixing details and approved loading.

03

Combined Structural Capacity

Decking, cantilever arms and rack uprights must be checked together for the intended load.

Configuration clarification: The flat storage surfaces are visible in one original manufacturer photograph. The exact panel material and load rating cannot be confirmed from the image. They should not be presented as a standard accessory included with every No.00301 system.
Structural Engineering

Four Checks Behind a Large Cantilever Rack

Large warehouse cantilever storage requires the whole supporting structure to be designed around real material loads and handling conditions. The published manufacturer capacity for No.00301 is customizable rather than one fixed number.

01

Load Per Arm

Confirm the permitted weight on each projecting arm. Arm length, cross-section, loading position and connection design influence allowable capacity.

02

Upright Capacity

Each upright receives loads from its connected arms. The complete loading pattern, upright geometry and structural limitations must be checked.

03

Material Support

Long pipes, steel bars and profiles may need several support arms. Arm spacing must suit material stiffness, weight distribution and allowable overhang.

04

Rack and Foundation

Check structural bracing, bases, floor anchoring, supporting concrete and the overall rack stability under intended loads.

Load rating clarification: HEDA SHELVES lists the load capacity of Product No.00301 as customizable. The product page does not specify a universal numerical load capacity per arm, per upright or per complete rack row. The number of visible storage levels and upright frames cannot be used to calculate the approved capacity. Final safe working loads must be documented for the selected system.
Material Handling and Safety

Practical Considerations for Long-Load Warehouses

A cantilever system should be planned around both its storage capacity and the safe handling of the goods. Long or cylindrical products require special attention during loading, retrieval and storage.

OPERATION / 01

Control Pipe Rolling

Cylindrical steel pipes and similar products can roll if not adequately restrained. Appropriate end stops, secure bundling, cradles or other retention measures may be required. Retention suitability must be established for the actual load.

OPERATION / 02

Avoid Uneven Support Loading

Long materials should rest on the designated supporting arms. Incorrect spacing or excessive material overhang can cause bending, instability or uneven loading. The support arrangement must be approved for the goods.

OPERATION / 03

Coordinate Lifting Equipment

Forklifts with suitable attachments, cranes or other approved lifting equipment may be used according to the application. Verify load stability, lifting capacity, aisle clearance and safe placement methods.

OPERATION / 04

Protect the Rack Structure

Maintain suitable clearance around the loading face and exposed rack bases. Consider vehicle impact protection where needed. Inspect rack components for damage and follow the manufacturer's approved loading instructions.

Custom Layout and Future Planning

Configure the Rack for Today's Inventory and Tomorrow's Needs

HEDA SHELVES provides customizable cantilever racking dimensions and modular steel structures. For large warehouses, it is useful to consider both current material volumes and potential future layout changes.

CONFIGURATION / 01

Custom Rack Dimensions

Set row length, rack height, arm projection, upright spacing and storage elevations according to the available building dimensions and stored material sizes. Final dimensions require engineering review.

CONFIGURATION / 02

Modular Storage Rows

Repeated upright and arm arrangements allow a warehouse to be planned in multiple storage sections. The number of rack bays must be selected according to storage quantity, material length and structural loading.

CONFIGURATION / 03

Future Rack Extensions

Where permitted, additional sections or revised storage arrangements may be considered as operational requirements change. Any modification requires verification of structural capacity, component compatibility and installation conditions.

Manufacturer Technical Reference

Large Warehouse Cantilever Rack Specifications

Product No.00301 is a customizable steel cantilever racking system for large warehouse storage applications. HEDA lists product size, steel thickness, load capacity and number of levels as customizable. The final system should be engineered around the specific stored materials.

Specification accuracy: The original product photographs demonstrate different cantilever installations and support arrangements. They do not provide fixed dimensions, a numerical load rating or a universal rack component specification. All structural capacities and dimensions must be confirmed in the approved proposal.

No.00301 / Product Information

Product No. 00301
Product Name Large Warehouse Cantilever Racking System Solution
Product Category Industrial Cantilever Racking System
Main Material Cold-Rolled Steel
Product Size Customizable
Steel Thickness Customizable
Load Capacity Customizable; Approved Safe Working Loads Required
Number of Levels Customizable
Featured Frame Color Blue Steel Uprights and Bracing
Featured Arm Color Orange Steel Cantilever Arms
Available Colors Blue, Orange, Black, White, Grey, Red or Custom Colors
Surface Treatment Electrostatic Spray Surface
Surface Features Manufacturer-Listed Anti-Rust and Corrosion Protection
Main Components Upright Frames, Cantilever Arms, Steel Bases, Bracing and Connections
Structure Knock-Down Steel Construction
Main Applications Pipes, Lumber, Steel Bars, Profiles and Compatible Long Materials
Use Areas Warehouse, Factory and Industrial Storage Facilities
Customization OEM & ODM Accepted
Flat Support Surfaces Shown in One Gallery Example; Confirm Separately if Required
Warranty Reference Manufacturer Lists 5 Years; Confirm Terms and Coverage
Final Engineering Arm Ratings, Upright Loads, Rack Stability and Anchorage to Be Confirmed
Industrial Material Storage

Practical Applications for Large Warehouse Cantilever Systems

Cantilever racking is especially useful where stored materials are long, bulky or unsuitable for conventional shelf bays. The actual storage arrangement must match the weight, size and handling requirements of the goods.

APPLICATION / 01

Steel Pipes and Tubes

Provide horizontal storage positions for suitable steel pipes and tubular materials. Confirm the required number of support points, load capacity and protection against rolling or shifting.

APPLICATION / 02

Steel Bars and Profiles

Organize metal bars, structural profiles and long fabricated components across designated storage levels. Support spacing and arm loading should be selected according to the material section and weight.

APPLICATION / 03

Timber and Building Materials

Configure storage positions for compatible timber packs, wooden boards and long-format building materials. Flat or flexible products may require additional support depending on their dimensions and stiffness.

Customized Warehouse Projects

Plan Your Cantilever System Around Real Loads

HEDA SHELVES can discuss a customized large warehouse cantilever racking solution based on your material dimensions, storage quantity, load requirements and handling process. For larger installations, a warehouse floor plan helps establish suitable rack rows, loading aisles and storage zones.

Quotation priority: Please provide the warehouse dimensions, type of stored goods, maximum material length and maximum bundle weight. Include the required storage quantity, number of levels and lifting equipment. HEDA can then review an appropriate cantilever configuration for the project.

Information Needed for Your Quotation

Warehouse length and width
Warehouse clear height
Warehouse floor plan
Type of stored materials
Material section shape
Minimum material length
Maximum material length
Material diameter or width
Material weight per item
Maximum bundle weight
Required storage quantity
Required number of arm levels
Preferred rack height
Preferred arm projection
Required rack row length
Number of rack rows
Single or double loading face
Available handling aisle width
Forklift or crane details
Required lifting height
Long-load support spacing
Material retention requirements
Flat support surface requirements
Existing floor conditions
Indoor or outdoor use
Preferred rack colors
Project delivery destination

The final technical proposal should confirm rack dimensions, arm ratings, upright spacing, loading requirements, structural bracing and anchoring.

Frequently Asked Questions

Large Warehouse Cantilever Racking System FAQs

What is a large warehouse cantilever racking system?

It is an industrial storage system using steel upright frames and projecting cantilever arms to support suitable long, bulky or irregular materials. Larger installations may use repeated rack bays and multiple storage elevations to organize goods across longer warehouse rows.

What is the load capacity of No.00301?

HEDA SHELVES lists load capacity as customizable for this model. No universal numerical arm capacity is published for all configurations. Final ratings must be verified according to the arm design, upright structure and actual loading conditions.

Can the system store long steel pipes?

Suitable steel pipes and tubes are among the manufacturer's listed applications. The number and spacing of supporting arms must suit the pipe length, weight and stiffness. Proper rolling protection and load retention may also be required.

Are the cantilever arms adjustable?

The manufacturer describes adjustable cantilever configurations and customizable storage levels. Any arm adjustment or revised loading arrangement must remain within the approved structural specification. The allowable positions depend on the selected frame and connection design.

Is the rack single-sided or double-sided?

Different warehouse layouts may require single-sided or double-sided cantilever storage arrangements. The original No.00301 gallery shows long cantilever rack rows. The appropriate loading face configuration should be confirmed for the actual project rather than assumed.

Can flat panels be used with cantilever racking?

One original No.00301 photograph shows flat support surfaces within a cantilever rack arrangement. Any panel or decking requirement must be specified separately with its material, dimensions, support method and approved load. It should not be assumed to be standard.

Can the rack be extended as warehouse storage grows?

HEDA describes its cantilever systems as customizable and modular in design. Extensions or layout modifications may be possible where site conditions and component compatibility permit. Any changes must be checked against the approved structural design.

What handling equipment can be used?

Forklifts with suitable attachments, cranes or other approved lifting equipment may be considered according to the material dimensions and weights. Equipment capacity, aisle clearance, load stability and safe handling procedures must be verified.

Can the cantilever system be customized for my warehouse?

Yes. HEDA lists size, thickness, load capacity, number of levels and color options as customizable. The final layout should be based on the stored goods, available warehouse space, loading requirements and handling equipment.

Does the surface treatment protect against rust?

The manufacturer lists electrostatic spray treatment with anti-rust and corrosion-protection features. Suitability for particular environmental conditions depends on the specified coating system. Outdoor or aggressive environments may require additional protection.

What information is required for a quotation?

Please provide warehouse dimensions, material types, maximum material length, bundle weight and required storage quantity. A warehouse layout drawing, preferred number of levels and details of loading equipment will help determine an appropriate system configuration.

HEDA SHELVES / CUSTOM INDUSTRIAL STORAGE

Planning a Large Warehouse Cantilever Racking Project?

Share your warehouse layout, stored material dimensions, maximum bundle weight and required storage quantity. Discuss a customized cantilever racking solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
