Industrial Heavy-Duty Steel Pallet Racking for Efficient Warehouse Storage

No.00283

HEDA SHELVES presents the Industrial Heavy-Duty Steel Pallet Racking system, designed to optimize warehouse storage and handling. This robust and versatile solution ensures durability, high load capacity, and easy customization, catering to various industrial storage needs.

Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / INDUSTRIAL PALLET STORAGE PRODUCT NO.00283
Original HEDA No.00283 industrial steel pallet racking installation with tall blue braced upright frames and orange-red adjustable horizontal beams arranged in long warehouse rows
Original HEDA industrial warehouse racking installation showing the blue steel frames and orange-red horizontal load beams.
Industrial Heavy-Duty Steel Racking

Strong Structure. Flexible Storage.

HEDA SHELVES Industrial Heavy-Duty Steel Pallet Racking is a configurable warehouse storage system built around steel upright frames and horizontal load beams. The featured structure uses blue braced upright frames and orange-red beams to form multiple accessible storage levels. The manufacturer's gallery also shows solid steel support surfaces and additional supporting members, demonstrating possible arrangements for different storage requirements. Rack dimensions, load capacity, support components and accessories can be selected for the intended pallets, products and warehouse layout.

Q235B Steel Adjustable Beam Levels Modular Rack Design
01 / STRUCTURE

Steel Upright Frames

Blue perforated columns with diagonal bracing support adjustable horizontal beam levels.

02 / CONFIGURATION

Multiple Support Options

The original gallery includes beam storage and solid steel support arrangements.

03 / WAREHOUSE DESIGN

Selective Storage Access

Pallets can be handled from the working aisle when the system and forklift layout are suitable.

Original Product Photography

From Rack Frames to Practical Storage Levels

These original HEDA photographs show two different examples of the heavy-duty steel rack structure. The first emphasizes the steel beam arrangement. The second shows cartons stored on a level supported by the orange-red rack members. Both use blue steel upright frames with diagonal bracing.

Original HEDA No.00283 steel rack reference with blue braced frames, several orange-red horizontal load beams and blue stacked industrial items in the warehouse background
Manufacturer Photo / 01

Adjustable Steel Beam Structure

The image shows a blue upright frame assembly with orange-red horizontal members installed at different elevations. The beam positions create potential storage levels while allowing the rack layout to be selected according to the intended loads. The required beam span and cross-section must be confirmed against the final engineering specification.

Visible: blue perforated uprights, diagonal bracing and orange-red load beams.

Original HEDA No.00283 racking photograph with blue braced steel uprights, orange-red beams and packaged cardboard cartons arranged on an elevated storage level
Manufacturer Photo / 02

Storage of Packaged Goods

This second original photograph shows cartons stored on an elevated rack level supported by orange-red structural members. It demonstrates how the same general type of steel storage structure may be used for suitable packaged inventory. The contact surface and support arrangement must be selected for the actual product dimensions and weight.

Visible: blue upright frames, orange-red beam structure and stacked cartons.

Product photo clarification: The two pictures illustrate different manufacturer storage references. They are not presented as a before-and-after sequence of the same installation. Storage capacity and the suitability of the supporting surface must be assessed for each configuration.
Actual Steel Support Detail

Look Above and Below the Steel Storage Surface

A distinguishing detail of the No.00283 manufacturer gallery is the solid grey steel storage surface. One image shows the structure beneath the panel, including orange-red supporting cross members. Another shows the upper surface of the grey steel panel. Both views should be considered when evaluating the required support design.

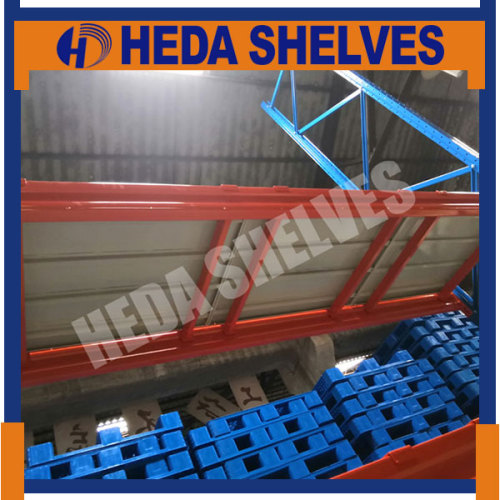

Original HEDA No.00283 underside detail showing a solid grey steel storage panel supported by orange-red steel cross members with blue frame components visible nearby
STEEL DECK DETAIL / 01

Underside Support Structure

The manufacturer photograph shows a solid grey steel surface with orange-red members beneath the panel. These members help illustrate how the support assembly is constructed. Their quantity, span, profile and connection details must be selected for the approved load requirements.

Visible: underside of grey steel panel and orange-red supporting members.

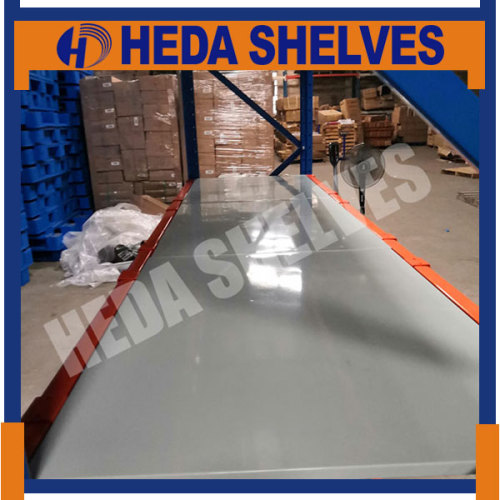

Original HEDA No.00283 close-up of the upper surface of a solid grey steel storage deck with orange-red structural edge members
STEEL DECK DETAIL / 02

Solid Steel Storage Surface

This photograph shows the upper surface of a solid grey metal panel. The orange-red structural elements remain visible along the sides. A continuous steel storage surface may be considered for compatible products, provided the panel and supporting frame have the required approved load rating.

Visible: solid grey steel surface and orange-red side members.

Decking accuracy: The pictured grey panels are solid surfaces, not wire mesh decking. Although HEDA also discusses wire decking as a possible rack component, a wire mesh arrangement must be specified separately. The load rating of any decking panel must be checked independently of the general rack beam level capacity.
Pallet and Shelf Support Selection

Match the Support Surface to the Stored Products

The rack frame and beam arrangement are only part of the storage design. A suitable supporting surface should be selected according to the pallet construction, unit load, product size and handling method.

SUPPORT ARRANGEMENT / 01

Pallets on Load Beams

Suitable pallets may be supported directly on the horizontal rack beams when their underside construction and contact points are compatible. Pallet overhang, orientation and beam loading must be verified.

SUPPORT ARRANGEMENT / 02

Solid Steel Support Panels

The manufacturer's photographs include solid grey steel panels with supporting cross members beneath. Panel thickness, span, deflection and point loads require separate engineering confirmation.

SUPPORT ARRANGEMENT / 03

Optional Wire Mesh Decking

The product description also mentions wire mesh decking. A compatible mesh deck may be considered where its support configuration and load rating suit the storage requirements. It is not the solid panel shown in the original close-ups.

Structural Components

Understand the Rack Beyond the Uprights and Beams

HEDA provides a numbered component illustration covering pallet rack frames, beams, supports, connectors and possible protective accessories. The diagram is a general product reference rather than a final No.00283 assembly drawing.

Original HEDA numbered pallet racking component reference illustrating upright frames, load beams, safety locks, anchors, pallet supports, shelving surfaces, frame guards and other possible accessories
General HEDA pallet racking component illustration. Optional accessories depend on the approved quotation.
Engineered Steel Assembly

Main Components and Safety Accessories

Upright Frames

Perforated steel columns and bracing form the vertical supporting structure.

Horizontal Load Beams

Beams provide load-bearing levels. Profiles and spans must suit the actual pallet loads.

Beam Safety Locks

Compatible locking components help secure the beam connections as required by design.

Support Bars and Decking

Additional components may provide suitable support for specific pallets, cartons or products.

Anchors and Row Spacers

Floor fixings and compatible row connections must follow the approved arrangement.

Protectors and Backstops

Appropriate guards, pallet stops and anti-fall systems may be specified where needed.

Accessory clarification: The component diagram includes different possible rack elements, but this does not mean every illustrated accessory is supplied as standard. The final component list, connector type, steel profile and loading specification must be confirmed in the project drawings.
Modular Warehouse Layout

Connect Rack Bays. Build Organized Storage Rows.

HEDA's modular rack reference explains how complete starter bays and compatible add-on bays may be used to form longer storage rows. This approach is useful when planning the number of upright frames, horizontal beams and pallet positions in a warehouse.

Rack Expansion Planning

A Configurable Storage Framework

A starter rack bay provides the initial set of frames and beams. Compatible add-on bays can extend the rack row, subject to the manufacturer's approved support arrangement and structural capacity.

Starter Units

Establish the first rack bay using the required upright frames and load beams.

Add-On Units

Extend the row with compatible beams and frame connections.

Adjustable Levels

Determine beam elevations using pallet dimensions, load capacity and forklift clearance.

Original HEDA modular pallet racking illustration showing complete starter units, add-on units, blue upright frames, orange horizontal beams, support bars and the expansion of a rack row
Original HEDA starter and add-on unit diagram. Final connections and capacity require verification.
Modular expansion note: Adding rack bays or repositioning beam levels may alter the loads carried by upright frames. Extensions and reconfigurations must follow approved structural calculations.
Structural Load Planning

Specify the Load. Verify the System.

Heavy-duty pallet rack performance depends on the combined capacity of the beams, upright frames, support components and installation. The allowable load must be determined for the complete approved configuration.

Final Level Capacity Must Be Confirmed

The No.00283 manufacturer page contains two different published load ranges: 500–4,000 kg per level in the product attributes and 1,000–5,000 kg per level in the general specification table. These figures should be clarified before ordering. Do not assume that the higher published value applies to every rack size, beam span or decking configuration.

01 / Beam Capacity

Verify beam profiles, spans and the number of loaded pallets per level.

02 / Frame Loading

Confirm rack height, upright sections, bracing and accumulated vertical loads.

03 / Deck Capacity

Check the steel panel and supporting members independently for the actual loading pattern.

Manufacturer Product Data

Available Dimensions and Custom Options

HEDA SHELVES lists different dimensional and material options for No.00283. These specifications are useful for preliminary project planning. The final rack configuration must be approved according to the selected loads.

Capacity clarification: The original product description and specification table contain different loading ranges. A project-specific approved safe working load is required. The dimensions shown here are published options, not guaranteed capacity combinations.

No.00283 / Product Specifications

Product No. 00283
Product Type Industrial Heavy-Duty Steel Pallet Racking
Main Material Cold-Rolled Steel Q235B
Length Options 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900 mm
Depth Options 800 / 900 / 1000 / 1100 / 1200 mm
Rack Height 2000–6500 mm or Customizable
Upright Thickness 1.5 / 2.0 mm or Customizable
Beam Levels 2–5 Adjustable Levels or Customized
Published Load Data 500–4000 kg/level in Product Attributes; 1000–5000 kg/level in Specification Table. Final Rating Requires Confirmation.
Main Components Upright Frames, Horizontal Beams, Compatible Support Components
Pictured Support Solid Grey Steel Panels with Orange-Red Supporting Members
Other Decking Options Wire Mesh Decking and Compatible Pallet Supports as Specified
Main Frame Color Blue in Featured Photos
Beam Color Orange-Red in Featured Photos
Color Options Blue, Orange, Black, White, Grey or Customized
Surface Treatment Electrostatic Spray Coating
Structure Knock-Down, Modular Assembly
Accessories Frame Protectors, Row Spacers and Other Compatible Options as Specified
Customization OEM & ODM Accepted
Applications Warehouses, Factories, Logistics Centers and Industrial Storage
Warehouse Rack Engineering

Five Details That Affect the Final Storage Design

The right heavy-duty pallet racking system requires coordination between the stored goods, steel rack components and warehouse operating conditions.

01

Load Unit and Pallet Dimensions

Confirm maximum loaded pallet weight, length, width, height and underside construction. Pallet contact points and any concentrated loads affect the support design.

02

Beam Span and Rack Height

Select the rack length, height, number of beam levels and the expected total load on the upright frames. Beam span and capacity must be reviewed together.

03

Decking and Product Support

Decide whether the load will be supported directly by the beams or needs additional steel bars, solid decking or compatible wire mesh. Support component capacity must be verified separately.

04

Forklift Handling and Aisles

Confirm forklift type, turning requirements, lifting height, load capacity and clearance around each storage level. Warehouse aisle dimensions must suit the selected equipment.

05

Floor Anchoring and Safety

Review floor capacity, base plates, anchors, rack protection and any backstops or anti-fall components required by the storage operation. Installation must follow the approved drawings and applicable safety requirements.

Industrial Storage Applications

A Configurable Rack System for Different Warehouse Operations

The manufacturer identifies industrial warehousing, manufacturing, logistics, retail storage and cold storage among the potential applications. Final suitability depends on pallet loads, handling equipment and site conditions.

APPLICATION / 01

Manufacturing Plants

Organize suitable raw materials, parts and finished products using adjustable rack levels.

APPLICATION / 02

Logistics Centers

Create accessible pallet locations for receiving, storing and dispatching different warehouse inventory.

APPLICATION / 03

Retail Warehouses

Arrange packaged goods and replenishment inventory across different storage levels.

APPLICATION / 04

Cold Storage Facilities

Specify suitable finishes and components for refrigerated storage conditions, subject to engineering review.

Custom Industrial Racking Project

Start with Your Load. Design the Rack Around It.

HEDA SHELVES can discuss rack dimensions, load levels, support surfaces, modular extensions and safety accessories according to your project. Providing detailed pallet and warehouse information helps establish the appropriate system configuration.

Quotation priority: Please specify the exact required load per level and the number of pallets or products stored on each level. If you require the solid grey steel panels shown in the manufacturer photos, mention this separately from wire mesh decking. Final allowable loads must be agreed before manufacturing.

Information Needed for Your Quotation

Type of stored products
Pallet length and width
Pallet underside construction
Maximum pallet weight
Loaded pallet height
Pallets per beam level
Required load per level
Required total pallet positions
Preferred rack length and depth
Available warehouse height
Number of beam levels
Steel decking requirements
Pallet support bar requirements
Starter and add-on bay quantities
Forklift model and lift height
Warehouse floor plan
Safety accessory requirements
Preferred color and finish
Installation location
Delivery destination

A warehouse floor plan, accurate load dimensions and forklift information support a more suitable racking layout and quotation.

Frequently Asked Questions

Common Questions About Industrial Heavy-Duty Racking

What is the load capacity of No.00283?

The original manufacturer page provides two different load ranges: 500–4000 kg per level in its product attributes and 1000–5000 kg per level in the specification table. The safe working load must be clarified and approved for the final rack design.

Are the grey steel panels included with every rack?

The No.00283 manufacturer gallery shows a configuration with solid grey steel support panels. However, the supplied decking, thickness, quantity and load rating must be confirmed in the final quotation. Not every rack configuration should be assumed to include the panels.

Are solid steel panels the same as wire mesh decking?

No. The photographed grey panels have solid surfaces. Wire mesh decking uses an open grid structure and is a different support option. The type of decking must match the stored products, loads and safety requirements.

Can the rack dimensions and beam levels be customized?

Yes. HEDA SHELVES lists a range of rack dimensions, adjustable levels and customization options. The selected arrangement must be reviewed for structural loading, pallet dimensions and forklift clearances.

Can the warehouse rack be extended with additional bays?

Compatible starter and add-on rack units can be used to create longer storage rows. Extensions must use suitable components and follow the approved structural design.

Are frame protectors and row spacers supplied as standard?

HEDA identifies frame protectors, row spacers and other accessories as available components. Their inclusion, size and quantity should be specified according to the warehouse layout and project requirements.

Can the racking be used in cold storage?

Cold storage is among the manufacturer's listed applications. The rack finish, steel components, handling equipment and installation conditions must be suitable for the intended operating temperature.

What information is required for a custom quotation?

Provide pallet dimensions, maximum load weight, required load per level, rack dimensions, warehouse floor plan and forklift information. Also specify whether solid decking, pallet support bars or wire mesh are required.

HEDA SHELVES / INDUSTRIAL STORAGE SOLUTIONS

Planning a Heavy-Duty Warehouse Racking Project?

Share your pallet dimensions, load requirements, preferred decking arrangement and warehouse layout. Discuss a customized industrial steel racking solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
