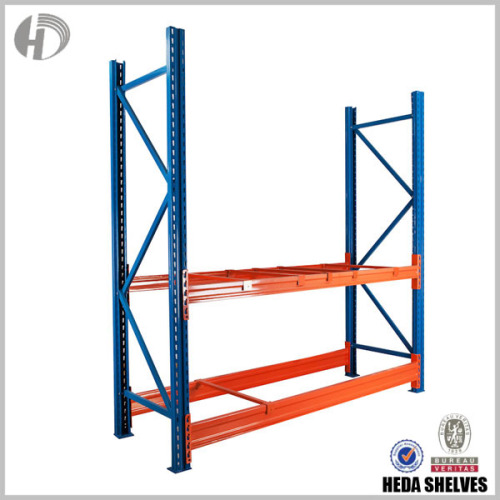

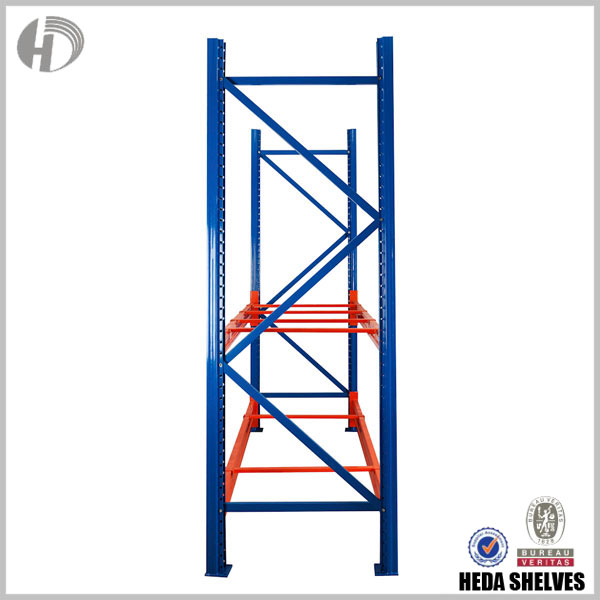

Heavy Duty Pallet Racking System

No.WH001
Heavy duty pallet racking is a high-capacity storage system designed for palletized goods and forklift handling. Rack dimensions, load capacity, beam levels, and configurations can be customized according to your pallets, warehouse layout, and storage requirements.
Load Capacity: 1,000–5,000 kg per level*Actual load capacity depends on pallet weight, beam span, upright configuration, rack height, number of levels, and project requirements.
Storage: Palletized Goods
Access: Forklift Handling
Beam Levels: Adjustable
Material: Q235B Steel
Configuration: Single / Double Row
Height: Customized
Surface Finish: Powder Coated
Download
View all downloads
  • Description

  • Specification

  • FAQ

Heavy Duty
Pallet Racking System

HEDA heavy duty pallet racking is designed for high-capacity storage of palletized goods in industrial warehouses, distribution centers and logistics facilities.

Adjustable horizontal beams create flexible pallet storage levels, while forklift access enables efficient loading and retrieval throughout the warehouse.

1,000–5,000 kg per level
Forklift pallet handling
Adjustable beam levels
Single / double row layouts
Custom warehouse design
Safety accessories available

Engineered for Heavy Pallet Storage

A flexible industrial storage system designed to maximize warehouse height, support heavy pallet loads and maintain efficient forklift access to stored goods.

01

High Load Capacity

Engineered for heavy palletized goods with load capacity selected according to pallet weight, rack height, beam span and project requirements.

02

Adjustable Beam Levels

Beam positions can be repositioned vertically to accommodate different pallet heights and inventory changes.

03

Efficient Vertical Storage

Makes effective use of warehouse height to increase pallet positions without expanding the warehouse footprint.

04

Flexible Warehouse Layout

Rack dimensions, row configuration and aisle width can be engineered around your warehouse and forklift.

05

Modular Expansion

Additional bays can be connected to create long storage rows and expand as storage requirements increase.

06

Integrated Safety Options

Compatible with pallet supports, row spacers, column protectors, barriers, back stops and other safety components.

Designed Around Your Pallets and Warehouse

Heavy duty pallet racking is not a fixed-size product. Rack height, beam span, depth, levels and structural specifications should be selected according to the actual pallet load and warehouse conditions.

Send HEDA your pallet dimensions, pallet weight, required pallet quantity, warehouse dimensions and forklift information for a project-specific configuration.

Product Type Heavy Duty Pallet Racking
Material Q235B Steel
Load Capacity 1,000–5,000 kg per level or customized
Rack Height Customized according to project requirements
Bay Width 2,300–3,900 mm or customized
Rack Depth 800–1,200 mm or customized
Beam Levels 2–5 adjustable levels or customized
Pallets per Level Typically 2–3 pallets depending on pallet size
Upright Thickness Selected according to load and rack height
Decking Options Pallet Support / Wire Deck / Steel Panel / Wood Panel
Configuration Single Row / Double Row
Surface Finish Electrostatic Powder Coating
Color Standard or customized RAL colors
Structure Knock-Down / Modular
OEM & ODM Available

Direct Pallet Storage with Forklift Access

Pallets are supported by horizontal load beams fixed between heavy-duty upright frames. Forklifts place and retrieve pallets directly from the required storage level.

01

Pallet Loading

Forklifts lift palletized goods and position them directly onto the load beams.

02

Adjustable Storage Levels

Beam positions can be changed vertically according to pallet and product height.

03

Continuous Rack Rows

Multiple bays connect together to create long single or double storage rows.

04

Forklift Aisle Design

Aisle width is planned according to the forklift type and warehouse operating method.

A Complete Pallet Racking System

Each system can be configured with structural and safety components according to pallet dimensions, load requirements, warehouse layout and operating conditions.

Upright Frames
Load Beams
Pallet Supports
Wire Decking
Steel / Wood Decking
Row Spacers
Column Protectors
Safety Barriers
Pallet Back Stops
Base Plates & Anchors

Safety Starts with the Correct Rack Configuration

Upright size, beam section, anchoring, row spacing and protective accessories should be selected according to the actual load, rack height, pallet dimensions and warehouse operating conditions.

Built for Industrial Pallet Storage

Heavy duty pallet racking is suitable for warehouses where palletized goods require high load capacity, organized storage and regular forklift access.


Manufacturing

Storage of raw materials, production components and palletized finished products.


Distribution Centers

Flexible pallet storage for multiple SKUs and frequent stock movement.


Logistics Warehouses

High-capacity pallet storage with convenient forklift loading and retrieval.


Food & Beverage

Palletized packaged goods, beverages and bulk inventory storage.


Automotive & Industrial

Heavy parts, components and industrial materials stored on pallets.

What Information Do We Need?

Heavy duty pallet racking should be designed around your actual pallets, warehouse and handling equipment. Providing the following information helps our team prepare a more accurate layout and quotation.

Warehouse Length × Width × Height
Pallet Length × Width × Height
Pallet Weight
Required Pallet Positions
Number of Pallets per Level
Forklift Type
Required Beam Levels
CAD / PDF / Floor Plan

Planning a Heavy Duty Pallet Racking Project?

Send us your warehouse dimensions, pallet size, pallet weight and required pallet quantity. HEDA can recommend a suitable rack configuration and warehouse layout for your project.

GET A PROJECT QUOTE
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.
