Industrial Warehouse Drive-in Pallet Racking System

No.WDIR001
The Industrial Shuttle/Drive-in racking system no aisle divisions, a continuous, integral racking system can double the storage capacity of pallets.
Download
View all downloads
  • Description

  • Specification

  • FAQ

High-Density Storage Solutions

Store More Pallets.
Use Less Aisle Space.

HEDA SHELVES Drive-In Pallet Racking System is designed for warehouses handling large quantities of similar palletized products. By creating deep storage lanes that forklifts can enter, the system reduces conventional access aisles and makes more efficient use of available floor space.

High-Density Storage LIFO Inventory Custom Configuration
HEDA SHELVES high-density drive-in pallet racking system with multiple deep pallet storage lanes
Why Choose Drive-In Racking

More Storage Capacity Within Your Existing Warehouse Footprint

When storage density matters more than immediate access to every individual pallet, drive-in racking provides a practical alternative to conventional selective pallet racking.

01 / SPACE

Reduced Aisle Requirements

Deep pallet lanes reduce the number of forklift access aisles required between storage rows, allowing more floor area to be allocated to pallet storage.

02 / CAPACITY

Multi-Deep Pallet Storage

Pallets are stored consecutively along support rails at multiple depths and levels, making the system suitable for bulk quantities of the same product reference.

03 / FLEXIBILITY

Project-Specific Layouts

Rack height, lane depth, pallet positions and structural configuration can be planned around your warehouse dimensions, pallet specifications and handling equipment.

Front view of HEDA drive-in racking showing forklift entry into deep storage lanes
Operating Principle

How Does Drive-In Pallet Racking Work?

Unlike conventional pallet racks, where forklifts operate in aisles between rows, drive-in systems allow forklifts to travel directly inside designated storage lanes.

01

Forklift Enters the Storage Lane

The forklift approaches the rack from the open loading face and travels into the lane with the load raised clear of the pallet support rails.

02

Pallets Are Positioned on Support Rails

Pallets are placed onto the support rails at the designated storage level. Loading proceeds from the back of the lane toward the front.

03

Last-In, First-Out Retrieval

In a standard single-entry drive-in configuration, pallets are retrieved from the front toward the back, following LIFO inventory rotation.

Important: Standard drive-in racking follows LIFO. If FIFO rotation is required, a separate drive-through configuration with access from opposite ends may be considered.
Structural Design

Engineered Components for Deep-Lane Pallet Storage

A drive-in racking system combines upright frames, bracing, pallet support rails and connecting components to create continuous storage lanes. The complete structure is designed according to the required pallet loads and warehouse operating conditions.

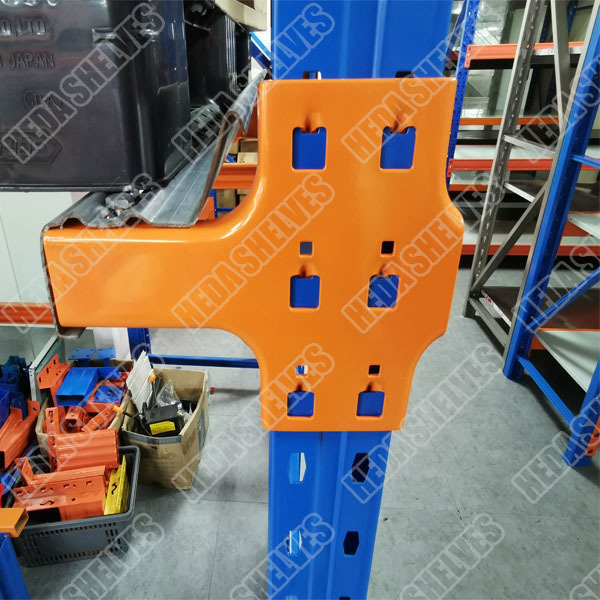

Actual HEDA racking connection showing orange support bracket attached to blue upright and steel rail
Component Detail 01

Support Rail & Upright Connection

Pallet support rails are carried by connecting brackets fixed to the upright structure. The connection arrangement supports the specified pallet positions within each storage lane.

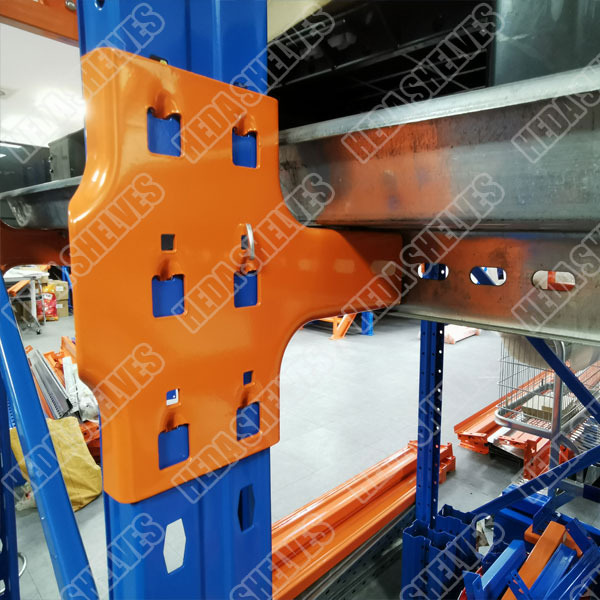

Close-up photograph of HEDA orange steel support arm connected to blue rack upright
Component Detail 02

Steel Support Arm Detail

The support arm forms part of the load-supporting connection between the upright and the pallet rail. Component dimensions and connection requirements are selected according to the approved rack design.

Upright Frames & Bracing

Form the main supporting structure of the pallet storage lanes.

Pallet Support Rails

Provide continuous support positions along the depth of each lane.

Protective Accessories

Entry guides and rack protection can be specified where required.

Warehouse Applications

Where Drive-In Racking Makes the Most Sense

Drive-in racking is best suited to palletized inventory with relatively few SKUs and substantial quantities of each product reference.

APPLICATION / 01

Cold Storage Warehouses

In refrigerated and frozen facilities, compact pallet storage can help make better use of temperature-controlled warehouse space. System materials, finishes and operating clearances should be specified for the environment.

APPLICATION / 02

Food & Beverage Storage

Suitable for storing substantial quantities of palletized products with consistent storage requirements, provided that the required stock rotation is compatible with the selected rack configuration.

APPLICATION / 03

Bulk Industrial Inventory

An effective option for manufacturing and distribution facilities holding large batches of similar palletized goods that do not require immediate access to every individual pallet.

Project Reference

Drive-In Racking in a Real Warehouse

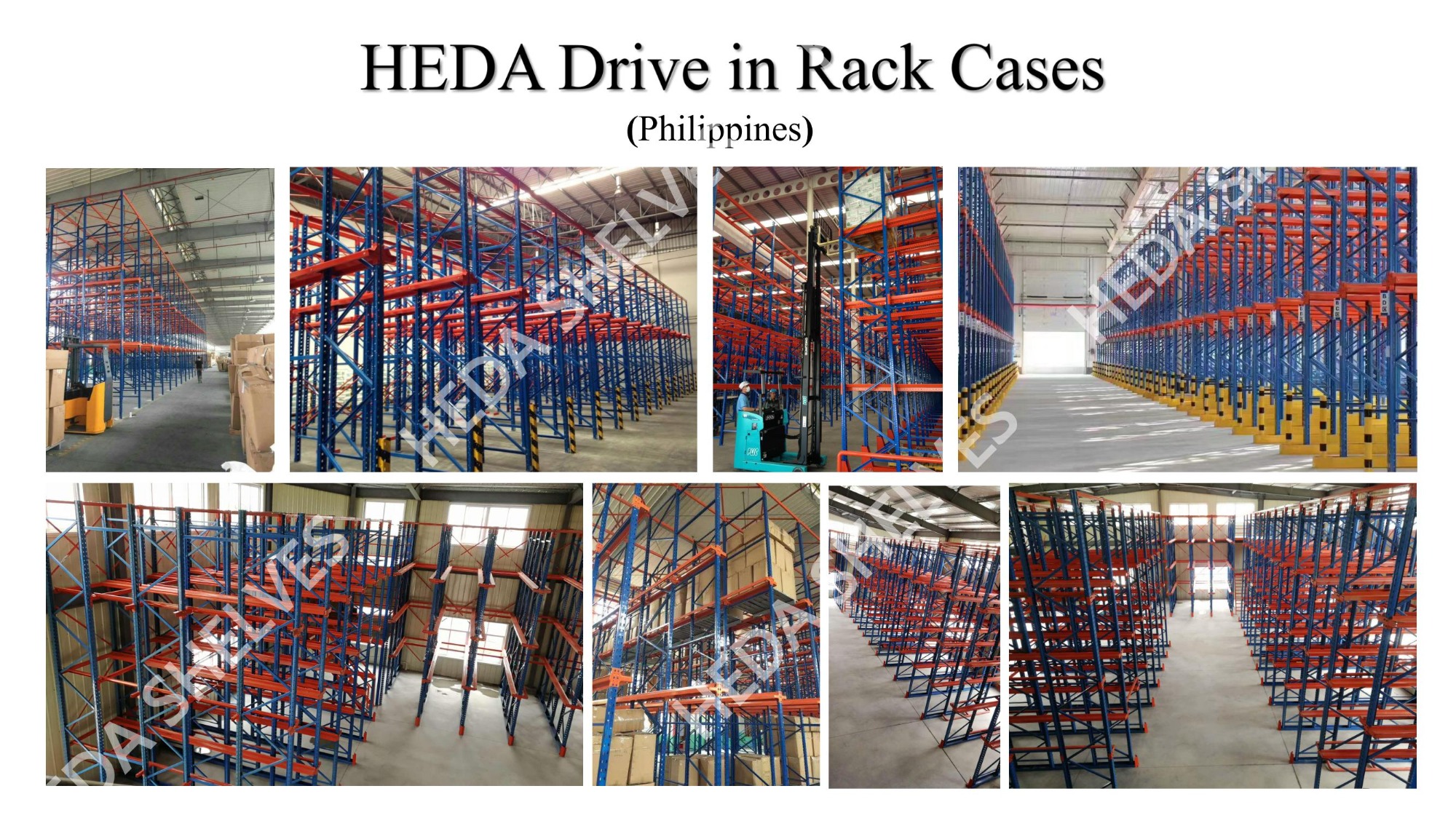

See an existing HEDA SHELVES drive-in racking project in the Philippines, featuring multi-level storage lanes and an installed steel racking structure.

Philippines / Warehouse Racking
HEDA SHELVES actual drive-in pallet racking warehouse project in the Philippines
Custom Engineering

Designed Around Your Warehouse, Not the Other Way Around.

Every warehouse has different building dimensions, pallet sizes, handling equipment and inventory requirements.

HEDA SHELVES can develop a project-specific drive-in racking layout based on the information you provide, helping determine a suitable configuration before manufacturing and installation.

What We Need for Your Racking Proposal

  • Warehouse floor plan and available height
  • Pallet dimensions and maximum loaded weight
  • Required pallet storage quantity
  • Number of SKUs and inventory rotation method
  • Forklift type and operating requirements
  • Ambient, refrigerated or frozen environment

Final load capacities, dimensions, connection details and protective accessories are subject to the approved project design.

HEDA SHELVES · Factory-Direct Solutions

Planning a High-Density Pallet Storage Project?

Share your warehouse layout, pallet specifications and storage requirements with our team to discuss a customized drive-in racking solution.

REQUEST A PROPOSAL   →

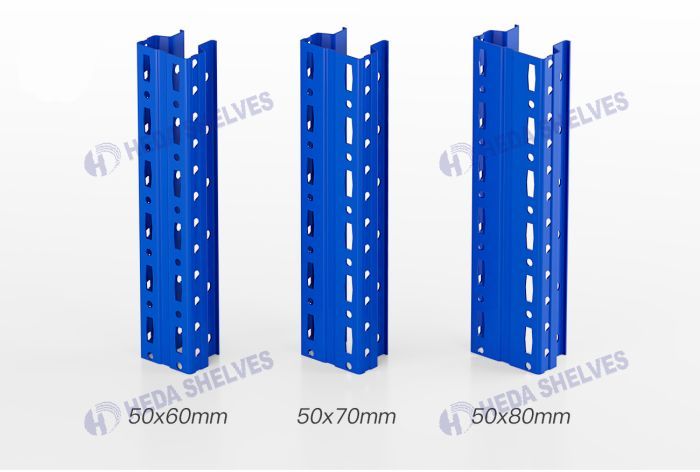

1. Light and medium upright

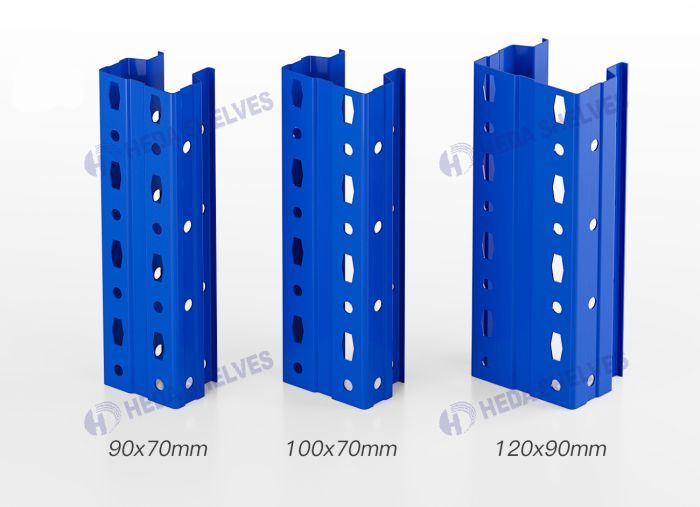

2. Heavy duty upright

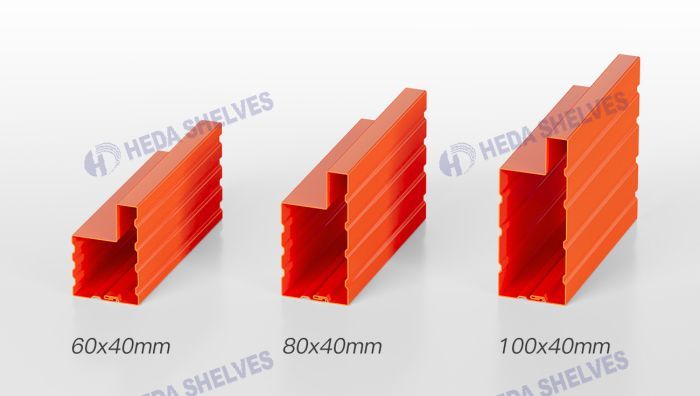

3. Step beam

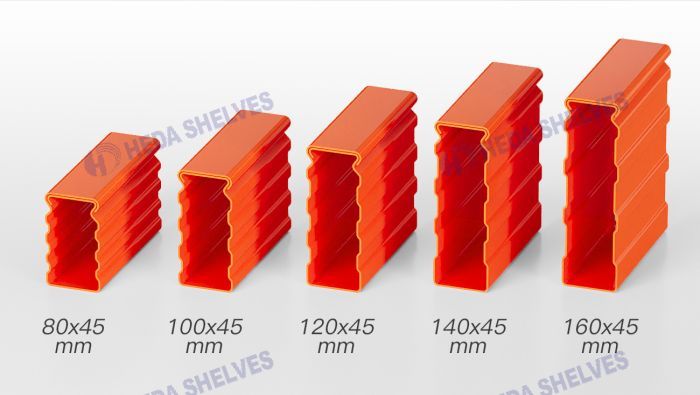

4. Box beam
