Double-sided Cantilever Racking System

No.00302
Explore the advantages of double-sided cantilever racking systems for efficient and flexible storage of long, bulky, or irregularly shaped items. Learn how they can benefit your warehouse or storage facility.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / CANTILEVER STORAGE SOLUTIONS PRODUCT NO.00302
Double-Sided Long Material Storage

One Central Row. Two Loading Sides.

HEDA SHELVES Double-Sided Cantilever Racking System is designed to provide accessible storage positions for long, bulky and irregularly shaped materials on both sides of a central steel upright structure. Product No.00302 features light grey perforated upright columns, orange-red projecting support arms, diagonal steel cross-bracing and floor-level steel bases. Unlike single-sided configurations, the double-sided layout creates two operating faces, allowing suitable long materials to be stored and retrieved from opposite warehouse aisles. Rack height, arm projection, upright spacing, number of levels and rated loading are customized for the actual storage requirements.

Two Loading Faces Central Warehouse Rows Custom Steel Configuration
Original HEDA No.00302 double-sided cantilever racking installation with light grey perforated steel upright frames, orange-red support arms extending in both directions, X-shaped diagonal bracing and steel floor bases
Original HEDA No.00302 warehouse installation: grey upright frames and orange-red cantilever arms on both sides.
2 Loading Faces Cantilever arms on both sides of the uprights
Custom Arm Levels Configurable horizontal storage elevations
Central Steel Frames Perforated uprights, bracing and bases
Project-Specific Loads Verify arm, upright and overall rack capacity
Two-Sided Access Strategy

A Practical Layout for Central Warehouse Storage Rows

A double-sided cantilever rack can be positioned in a central warehouse storage zone, with one handling aisle on either side of the row. Both operating faces are planned around the dimensions and handling requirements of the stored goods.

OPERATING SIDE A

Loading Aisle A

Material handling and retrieval from one side of the central rack row. Aisle clearance must suit the selected equipment.

CENTRAL RACK STRUCTURE

Double-Sided Cantilever Arms

Arms project outward in two directions.

OPERATING SIDE B

Loading Aisle B

Separate material handling and retrieval from the opposite side. Aisle layout and equipment movement require coordination.

Simplified layout concept for understanding double-sided access; not a dimensioned installation drawing.

Warehouse planning: Two-sided access provides additional storage faces, but it does not automatically reduce the total warehouse floor area. Two handling aisles, material overhang, turning space and actual rack capacity must all be considered when comparing layouts.
Double-Sided Storage Benefits

Organize More Storage Positions Around a Shared Upright Row

Two-sided cantilever configurations create storage positions in opposite directions from the supporting steel structure. This arrangement may be useful for warehouse layouts with suitable access on both sides.

01 / ACCESS

Two Open Loading Faces

The opposing arms provide access to compatible long materials from separate aisles. Without front upright columns obstructing the loading faces, suitable equipment can approach the designated storage positions.

02 / ORGANIZATION

More Flexible Storage Zoning

The two sides can be planned for different types, lengths or handling frequencies of goods. Arm elevations and support positions should match the specific material dimensions and weights.

03 / CONFIGURATION

Shared Central Structure

Opposing cantilever arms connect to a central series of steel uprights. The complete structure must be engineered for both operating sides and the possible combinations of stored loads.

Original Warehouse Installation

Extended Rack Rows with Arms Facing Both Directions

The second manufacturer photograph shows a long industrial installation with repeating grey steel upright frames, orange cantilever arms and diagonal bracing. Both sides of the central structure remain visible.

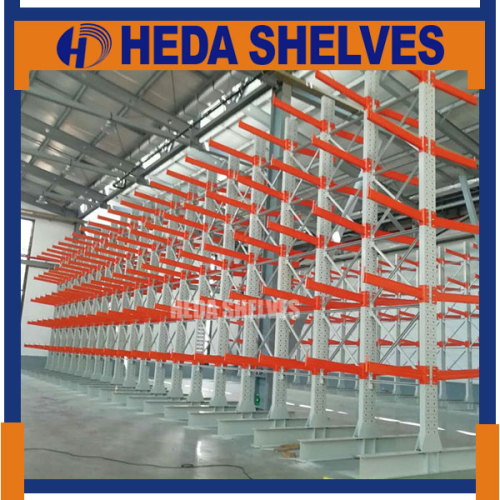

Original HEDA No.00302 long industrial double-sided cantilever racking rows with grey perforated upright frames, orange horizontal support arms extending to both sides, diagonal steel cross-bracing and extended grey floor bases
Original HEDA installation showing long double-sided rack rows and repeated steel support bays.
Central Rack Row Design

Two Sides. One Coordinated Structure.

Double-sided racks need adequate supporting steel members and structural stability under the complete loading arrangement. Extending a rack into long rows requires appropriate support spacing and bracing.

Central Upright Spacing

Select the distance between upright frames according to the lengths and weights of stored materials.

Opposing Arm Levels

Plan suitable storage elevations and handling clearances on both sides of the rack.

Complete Frame Stability

Include the actual loading combinations, rear bracing, floor bases and anchor connections.

Storage Layout and Installation

Plan the Rack Position and Loading Aisles Together

A central warehouse rack row affects the travel paths and loading space on both sides. The third original photograph clearly shows parallel storage structures, open working space and steel components within an industrial warehouse.

Installation Planning

Keep Both Loading Aisles Practical

Double-sided storage requires sufficient working space on both operating faces. The warehouse layout should account for equipment access, turning movements and the longest materials handled.

Material Handling Routes

Provide suitable entry, approach and withdrawal space for long loads.

Rack End Clearance

Allow safe circulation around the ends of storage rows.

Installation and Inspection

Provide access for installation, structural inspection and maintenance.

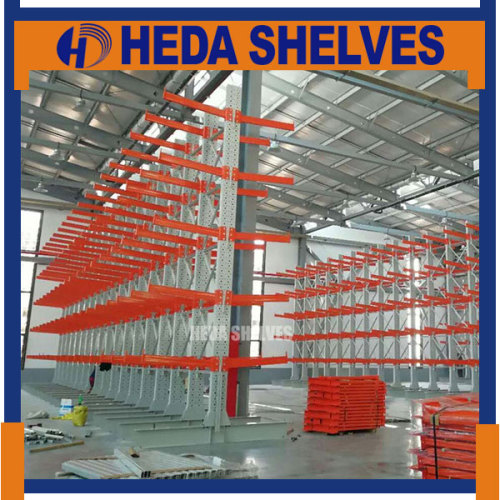

Original HEDA No.00302 warehouse overview with tall grey steel cantilever rack frames, orange projecting arms facing two directions, long rack rows, stacked orange steel components nearby and an open warehouse floor
Original warehouse installation showing long cantilever rows, rack ends and the surrounding working space.
Installation photo: The image includes steel rack components and materials on the warehouse floor. It should not be interpreted as a certified loading demonstration or evidence that every visible arm is rated for the same capacity.
Original Structural Photography

The Details Behind Double-Sided Cantilever Storage

The remaining two original product photographs provide closer views of the orange support arms, upright connections, cross-bracing and steel base construction. These details are essential for understanding the structure shown in the official product gallery.

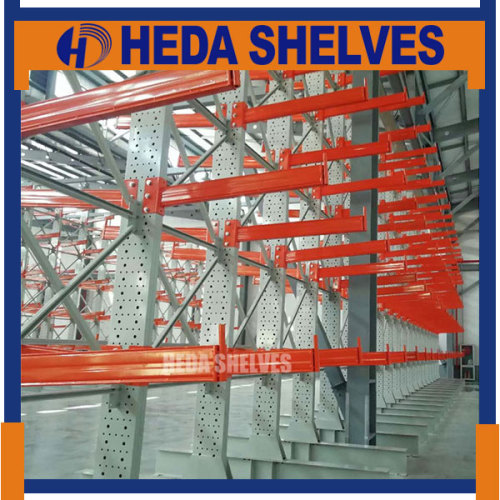

Original HEDA No.00302 close-up photograph showing orange-red cantilever arms attached to light grey perforated steel upright columns, steel arm-end upstands, diagonal cross-bracing and long steel support bases
ACTUAL PRODUCT DETAIL / 01

Orange Cantilever Arms and Upright Connections

Orange-red rectangular steel cantilever arms project outward from the grey perforated uprights. Visible arm-end upstands form part of the photographed design. The arm connections transfer loads to the upright structure and must be approved for the intended loading configuration. Any load-retaining function of the arm-end features must be verified separately.

Original HEDA No.00302 warehouse photograph showing long rows of grey steel cantilever upright frames, orange-red support arms, prominent diagonal steel bracing, extended steel bases and long materials stacked in the warehouse background
ACTUAL PRODUCT DETAIL / 02

Steel Bracing, Bases and Long Rack Rows

This photograph provides a view along the repeated steel upright frames, orange cantilever arms and X-shaped bracing. Long base members extend outward at floor level. Materials are visible elsewhere in the warehouse, but the image does not establish the allowable load on the photographed arms. The complete system requires suitable stability and anchoring design.

Double-Sided Rack Engineering

Both Loading Sides Must Be Evaluated Together

The published capacity for No.00302 is customizable. A double-sided cantilever rack must be designed for the loads applied to both sides, including unequal loading conditions.

01

Load Per Arm

Each projecting arm has a permitted load determined by its steel section, projection, connection and load position. Verify the approved rating for every configured arm.

02

Opposing Loads

Loads on the two sides transfer forces through the shared uprights. The rack must be checked for approved combinations of loading on both sides.

03

Uneven Loading

One loading face may be filled while the opposite face is empty or partially loaded. These conditions must be included in the structural stability assessment.

04

Bases and Anchorage

Verify the upright structure, cross-bracing, floor-level bases, anchor connections and supporting foundation for the intended loads.

Capacity clarification: A double-sided arrangement does not mean that each arm automatically has twice the capacity of a single-sided rack. Nor does the system necessarily require equal loads on both sides. Acceptable loading patterns and safe working loads must be defined in the approved structural design. The manufacturer's No.00302 specification does not publish a fixed numerical capacity per arm or per upright.
Site-Specific Rack Planning

Five Considerations Before Selecting a Double-Sided Layout

A successful double-sided storage installation depends on the dimensions of the stored materials, the required loading conditions and the warehouse handling arrangement.

01

Materials on Both Sides

Identify which goods will be stored on each face of the rack. Provide material lengths, cross-sectional dimensions, bundle weights and storage quantities.

02

Arm Projection and Spacing

Select the required arm length and spacing according to the stored goods. Long materials may require several support points to avoid excessive deflection or uneven loading.

03

Two-Sided Loading Aisles

Determine the clear aisle width needed on each side of the central rack. Consider forklift maneuvering, long-load turning space, lifting clearance and safe withdrawal.

04

Rack Height and Levels

Set the overall rack height, required levels and vertical clearance according to the stored loads and available lifting height of the equipment.

05

Floor and Structural Approval

Verify supporting floor conditions, steel bases, anchors and required structural stability. The final installation should follow approved drawings and applicable site requirements.

Manufacturer Product Data

Double-Sided Cantilever Racking Specifications

HEDA SHELVES offers customizable steel cantilever storage systems for suitable long and bulky materials. Product No.00302 uses a double-sided structure with arms projecting in opposite directions from central upright frames. Dimensions, steel thickness, arm levels and load capacities are specified for the project.

Technical accuracy: The manufacturer's website lists capacity as customizable rather than publishing a fixed safe working load. The photographs are structural product references, not documented load tests. Request approved capacity ratings and loading instructions for the final design.

Product No.00302 / Technical Reference

Product No. 00302
Product Name Double-sided Cantilever Racking System
Category Industrial Cantilever Racking
Material Cold-Rolled Steel
Product Size Customizable
Thickness Customizable
Load Capacity Customizable; Project Rating Required
Storage Levels Customizable
Loading Faces Double-Sided; Arms Projecting from Both Sides
Featured Frame Color Light Grey
Featured Arm Color Orange-Red
Color Options Blue, Orange, Black, White, Grey, Red or Customized
Surface Treatment Electrostatic Spray Surface
Surface Features Manufacturer-Listed Anti-Rust and Corrosion Protection
Structure Knock-Down Steel Construction
Main Components Perforated Uprights, Cantilever Arms, Cross-Bracing, Bases and Connections
Applications Pipes, Lumber, Long Metal Profiles and Compatible Long Goods
Use Areas Warehouse, Factory and Industrial Storage
Customization OEM & ODM Accepted
Warranty Reference Manufacturer Lists 5 Years; Confirm Applicable Terms
Structural Approval Per-Arm Ratings, Both-Side Loading, Frame Stability and Anchorage Required
Long Material Storage Applications

Organized Two-Sided Storage for Different Material Groups

Double-sided cantilever racks may be configured for compatible long materials where suitable operating aisles are available on both sides of the rack.

APPLICATION / 01

Steel Pipes and Tubes

Provide designated horizontal storage positions for steel pipes and tubing. Confirm appropriate support spacing, rated loading, material overhang and pipe-retention measures to prevent rolling.

APPLICATION / 02

Metal Profiles and Bars

Organize suitable structural profiles, fabricated sections and metal bars across multiple cantilever levels. Arm support positions and loading capacity must suit the material lengths, sections and bundle weights.

APPLICATION / 03

Lumber and Long Building Materials

Store suitable timber boards, wooden beams and other compatible long building materials. Confirm material stiffness, support spacing and allowable deflection for the selected rack configuration.

Custom Double-Sided Storage

Plan Both Sides of Your Storage Row

HEDA SHELVES can discuss a customized double-sided cantilever system based on your warehouse dimensions, stored materials, maximum loads and handling requirements. For accurate planning, please specify the materials and loading requirements for both operating faces.

Quotation priority: Please provide the material length, diameter or section dimensions, maximum bundle weight and required storage quantity. Include your warehouse layout and the available handling aisle on each side. The final proposal should specify safe working loads and permitted loading arrangements.

Information Needed for Your Quotation

Warehouse floor plan
Warehouse dimensions
Available clear height
Stored materials on Side A
Stored materials on Side B
Material length range
Pipe diameter or profile size
Material weight per item
Maximum bundle weight
Storage quantity per side
Number of rack rows
Rack row length
Required rack height
Required arm levels
Arm projection per side
Upright support spacing
Available aisle width A
Available aisle width B
Forklift or crane details
Required lifting height
Loading sequence and frequency
Material retention needs
Existing floor conditions
Preferred rack colors
Indoor or outdoor use
Delivery destination

The final quotation and technical drawings should confirm arm capacities, upright ratings, loading combinations, bracing, bases and anchorage.

Frequently Asked Questions

Double-Sided Cantilever Racking System FAQs

What is a double-sided cantilever racking system?

It is a cantilever rack with storage arms projecting from both sides of the central upright structure. This creates two operating faces for storing and retrieving suitable long materials.

What is the difference between single-sided and double-sided racks?

Single-sided racks have arms projecting from one side of the uprights. Double-sided racks provide storage arms in two directions. The appropriate arrangement depends on the warehouse layout, aisle space and loading requirements.

Is double-sided cantilever racking more space efficient?

A double-sided rack can provide storage positions on two faces of a central support row. Whether this improves overall warehouse space utilization depends on the layout, material size, aisle requirements and rack dimensions.

Do both sides need to carry equal loads?

Not necessarily. The acceptable loading arrangement depends on the approved structural design. The rack must be evaluated for permitted combinations of balanced and unbalanced loads. Never assume that unrestricted one-sided loading is acceptable.

What is the load capacity of No.00302?

The manufacturer lists load capacity as customizable. No universal numerical safe working load per arm or per upright is published. Final capacity must be verified for the selected rack configuration.

Does a double-sided rack have twice the capacity of a single-sided rack?

Not automatically. A double-sided configuration may provide additional storage positions, but capacity depends on arm sections, upright loading, bracing, foundations and the approved design. The capacity of each system must be evaluated separately.

Is it suitable for steel pipes and tubes?

Suitable pipes and tubing are among the manufacturer's listed applications. The approved rack configuration must provide suitable support spacing and protection against rolling or unexpected movement.

Are the cantilever arms adjustable?

HEDA lists customizable rack dimensions and levels. Arm positions must follow the approved frame connections and structural load limits. Any subsequent adjustment should be verified before loading.

What types of forklifts can be used?

Suitable forklifts with approved attachments, cranes or other lifting equipment may be considered according to the stored materials. Equipment capacity, aisle clearances, load stability and handling procedures must be confirmed.

Can the rack dimensions and colors be customized?

Yes. HEDA lists size, steel thickness, capacity, number of levels and colors as customizable. Final specifications must match the required materials, loading conditions and warehouse layout.

What information is required for a customized quotation?

Provide your warehouse layout, stored material dimensions, maximum bundle weights, storage quantities and handling equipment. For double-sided layouts, include loading requirements and aisle dimensions for both sides.

HEDA SHELVES / CUSTOM DOUBLE-SIDED STORAGE

Planning a Double-Sided Cantilever Racking Project?

Share your warehouse dimensions, materials, maximum loads and required storage levels for both loading faces. Discuss a customized double-sided cantilever storage solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
