Customizable Light Duty Storage Warehouse Racks

No.00276
Our customizable light duty storage warehouse racks are perfect for your storage needs. Made with high-quality materials and customizable to your exact specifications, these racks are ideal for warehouses, retail stores, and more.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / WAREHOUSE STORAGE SHELVING PRODUCT NO. 00276
Customizable Steel Warehouse Shelving

Solid Shelves. Flexible Storage.

HEDA SHELVES Customizable Light Duty Storage Warehouse Racks provide a practical steel storage solution for cartons, boxed products, spare parts and other suitable warehouse goods. The original product features blue steel upright frames, diagonal side bracing, red-orange solid metal shelf surfaces and silver-grey front members. Adjustable storage levels and multiple dimensional options allow the system to be configured around different inventory and warehouse requirements.

Solid Steel Shelves Adjustable Levels Custom Sizes & Colors

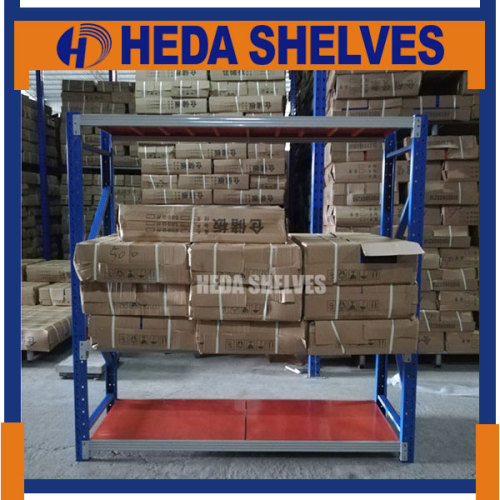

Original HEDA customizable storage warehouse rack with blue perforated steel uprights, diagonal bracing, red-orange solid metal shelf panels and silver-grey shelf front members

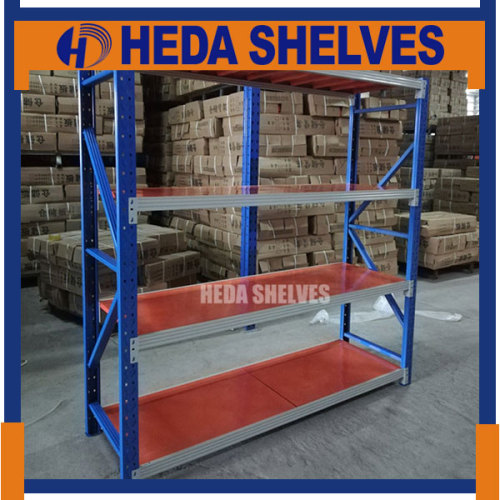

Original HEDA product photograph showing the actual solid metal shelving structure.
Q235B Steel Published structural material
300–800 kg Published per-level range; configuration-dependent
2–5 Levels Adjustable or customized
RAL Colors Custom finish options
Original Product Photography

A Real Shelving Structure for Boxed Warehouse Inventory

The original manufacturer photographs show the same shelving system from several angles, including actual carton loading. They provide visual references for the blue upright frames, red-orange shelf surfaces, silver-grey horizontal members and overall storage arrangement.

Construction Details

Inspect the Actual Shelf Construction

Unlike wire-mesh decking or open-beam pallet storage systems, the photographed No.00276 shelving uses flat red-orange metal shelf surfaces. These two original detail photographs also reveal the blue perforated uprights and silver-grey horizontal members.

Close-up of original HEDA storage shelving with smooth red-orange solid steel shelf panels, blue perforated upright with shaped slots and round holes, and silver-grey shelf edge
Actual Detail / 01

Solid Metal Shelf Panels

The original close-up clearly shows smooth, red-orange metal shelf surfaces. The panels are solid rather than wire mesh or perforated sheets. Their final thickness, support arrangement and rated loading depend on the chosen configuration.

Smooth, non-perforated metal surface
Red-orange coated finish
Visible silver-grey shelf edge
Original HEDA rack detail showing blue punched steel upright, silver-grey horizontal shelf member, smooth red-orange steel shelf and blue diagonal frame support
Actual Detail / 02

Blue Uprights and Shelf Supports

The detail image shows the shaped holes in the blue steel upright and the silver-grey horizontal member beside the metal shelf. These components form part of the adjustable rack assembly. Exact connection geometry and support specifications must follow the approved design.

Perforated blue steel upright
Horizontal silver-grey member
Braced steel supporting frame
Product structure clarification: This product's original photographs show solid red-orange metal shelf surfaces with silver-grey horizontal members. Do not substitute perforated decking, wire-mesh shelves or the open-beam construction of a different model. Shelf load ratings, panel thickness and connection details must be verified for the selected configuration.
Published Load Range

Storage Capacity Begins with the Correct Configuration.

HEDA SHELVES publishes a load range of 300–800 kg per shelf level for product No.00276. The allowable load depends on the selected rack dimensions, structural components, shelf panels and load distribution. The entire storage assembly should be evaluated according to its intended use.

Manufacturer-Published Range
300–800 KG PER COMPLETE SHELF LEVEL

This is a published configuration range, not a guaranteed load rating for every shelf. The chosen shelf panel, span, support members, frame design and loading pattern determine the final approved capacity. An individual shelf panel or connector must not be assumed to carry the full published range.

Shelf Span

Longer storage spans must be checked for the intended load and supporting structure.

Load Distribution

Concentrated or uneven loads may create different structural demands from evenly distributed goods.

Safe Installation

Confirm suitable floor conditions, correct assembly and any required anti-tip or anchoring measures.

Flexible Shelf Configuration

A Warehouse Shelf Configured Around Your Goods

Instead of purchasing shelving based on appearance alone, select the dimensions, levels and structural capacity to match your actual inventory. HEDA SHELVES supports OEM and ODM customization requests.

01

Size & Layout

Choose rack length, depth and height according to the available warehouse area and product dimensions. Multiple published sizes are available, with custom requests subject to review.

Storage footprint / Shelf dimensions
02

Shelf Levels & Loading

Configure the shelf level count and vertical spacing around the height of stored goods. Beam and shelf specifications must suit the required loading.

Adjustable height / Approved capacity
03

Color & Finish

The original product photographs show blue frames, red-orange shelf surfaces and silver-grey members. Alternative RAL colors can be requested to match your warehouse requirements.

Electrostatic coating / RAL customization
Technical Data

Published Product Specifications

The following dimensions and material information are provided by HEDA SHELVES for product No.00276. Actual capacities, finished dimensions and component specifications must be confirmed for the selected configuration.

Important: Product No.00276 is listed under light-duty storage racks, while the manufacturer's specification table states 300–800 kg per level. These values describe different available configurations. Confirm the actual safe working load of the complete ordered rack before installation and use.

Product No.00276 / Technical Reference

Product No. 00276
Product Name Customizable Light Duty Storage Warehouse Racks
Material Cold-Rolled Q235B Steel
Rack Length 1200 / 1500 / 1800 / 2000 / 2500 mm
Rack Depth 450 / 600 / 800 / 1000 mm
Rack Height 1200 / 1800 / 2000 / 2400 mm
Custom Dimensions Available upon project confirmation
Upright Thickness 1.5 / 2.0 mm listed options
Load Capacity 300–800 kg per layer, depending on configuration
Shelf Levels 2–5 adjustable layers or customized
Featured Structure Blue perforated uprights, blue bracing, red-orange solid steel shelf surfaces and silver-grey horizontal members
Surface Finish Electrostatic Spray Coating
Color Options RAL colors according to customer requirements
Structure Knock-Down Steel Rack
Coating Features Anti-Rust and Corrosion Protection Features as Listed by HEDA
Warranty 5 Years as Listed; Terms to Be Confirmed
Customization OEM & ODM Accepted
Applications Warehouse, Factory and Commercial Storage
Suitable Storage Applications

Practical Storage for Cartons, Parts and Supplies

The customizable shelf arrangement makes this system suitable for different warehouse and commercial storage requirements. The selected shelf capacity must always match the intended goods.

Application / 01

Warehouse Carton Storage

Organize packaged inventory, shipping cartons and other suitable boxed products across adjustable storage levels. The solid shelf surfaces provide storage platforms when configured for the intended loads.

Application / 02

Factory Parts & Components

Store appropriate spare parts, maintenance supplies, packaged tools and manufacturing components. Shelf spacing can be planned according to item dimensions and handling requirements.

Application / 03

Commercial Stockrooms

Keep merchandise, office supplies and other compatible goods organized within a defined storage footprint. Custom rack dimensions can accommodate different room layouts and inventory sizes.

Custom Warehouse Shelving

Tell Us What You Need to Store.

HEDA SHELVES can discuss shelf sizes, adjustable levels, colors and structural configurations around your warehouse project. To prepare an appropriate quotation, share the dimensions and weight of your products together with the available storage space.

Quotation recommendation: For the solid steel shelves shown in the original photos, clearly specify the required load per shelf level. Also describe whether the load is spread across the shelf or concentrated in specific positions. This information helps confirm the appropriate panel and frame configuration.

Information Needed for Your Quotation

Type of stored products
Item or carton dimensions
Maximum item weight
Required load per shelf level
Number of items per level
Required rack length
Required rack depth
Required rack height
Number of shelf levels
Preferred shelf spacing
Number of rack units
Available storage area
Warehouse floor plan
Preferred RAL colors
Special configuration needs
Delivery destination

Product dimensions, load information and a warehouse floor plan can help HEDA SHELVES recommend a suitable storage configuration and prepare a project quotation.

Frequently Asked Questions

Questions Before Ordering Warehouse Shelving

Are the shelf panels solid metal or wire mesh?

The original No.00276 product photographs show smooth red-orange solid metal shelf surfaces. They are not wire-mesh or perforated panels. Final material thickness and support specifications should be confirmed for the order.

Does every level support 800 kg?

No. HEDA SHELVES lists a range of 300–800 kg per level. The approved capacity depends on the selected rack dimensions, structural components, shelf surfaces and load distribution. A maximum published rating must not be assumed for every configuration.

Can the rack size and shelf levels be customized?

Yes. HEDA SHELVES lists several length, depth and height options, together with adjustable shelf levels. Additional customization requests can be reviewed according to the required storage configuration.

Can I request another color?

Yes. The manufacturer supports RAL color customization. The photographed product uses blue steel frames, red-orange shelf panels and silver-grey horizontal members. Alternative finishes must be confirmed before production.

Is the shelving easy to transport and assemble?

HEDA describes the product as a knock-down steel rack, designed for convenient packing, delivery and assembly. Installation should follow the supplied instructions and include all required structural components.

Can the shelving be used in a retail stockroom?

Yes. The product is marketed for warehouses, retail stores and other compatible storage environments. Rack dimensions, shelf heights and load ratings should match the stored merchandise and local operating requirements.

What information is required for a customized quotation?

Provide the intended goods, maximum shelf loading, rack dimensions, required number of levels, quantity and delivery destination. A warehouse floor plan and product photographs may help clarify the layout and loading requirements.

HEDA SHELVES / CUSTOM STEEL STORAGE SOLUTIONS

Need Customizable Warehouse Storage Racks?

Share your storage requirements, preferred rack dimensions, shelf load capacity, number of levels and project quantity. Discuss a suitable customized steel shelving configuration with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.
