Curve Shape Open Chiller Fridge

No.CSOC01
The cooling temperature of this air curtain freezer is 0-10 ℃. It adopts joint venture compressor, multi-directional refrigeration technology, bottom compressor, digital temperature controller, multi-layer shelves can be freely combined, the
Download
View all downloads
  • Description

  • FAQ

HEDA SHELVES / PRODUCT NO.CSOC01 COMMERCIAL OPEN-FRONT REFRIGERATION
Curved Profile / Open Air Merchandising

Open Access.
Curved Style.
Chilled Display.

The HEDA SHELVES Curve Shape Open Chiller is a commercial multideck refrigerated display cabinet designed for accessible presentation of suitable chilled merchandise.

Its open front, curved transparent side panels, adjustable multi-level shelves and black cabinet structure create a distinctive refrigerated merchandising format for supermarkets and convenience stores.

OPEN-FRONT ACCESS CURVED SIDE PANELS ADJUSTABLE SHELVES FAN COOLING
Original HEDA CSOC01 curve shape open chiller with black cabinet, curved transparent side panels, white perforated rear panel, multiple black display shelves and open customer-facing access
CSOC01 / Original HEDA Product Photograph

Open-front curved chiller, showing its genuine side profile, black shelving and white rear panel.

ACCESS / 01

Easy Reach-In Shopping

The open front gives customers direct access to displayed chilled products without opening a glass door.

MERCHANDISING / 02

Multiple Display Levels

Adjustable shelves help organize products across several levels. Shelf positioning and angles can be configured for the display.

DESIGN / 03

Distinctive Curved Ends

Transparent curved side panels provide additional side visibility while maintaining the cabinet's recognizable commercial profile.

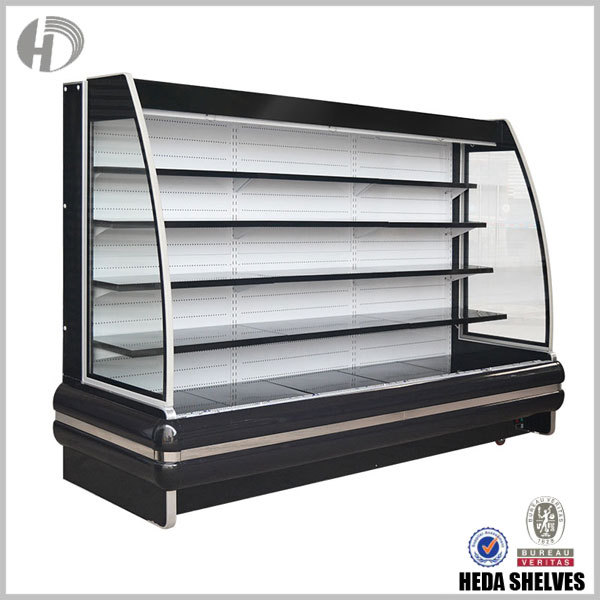

Genuine HEDA CSOC01 catalog image of the same black curved-side open multideck chiller showing adjustable black shelves, white perforated rear panel, silver curved side framing and full-width lower cabinet
CSOC01 / Official Product Catalog Image

Original model image showing the same physical configuration.

Authentic Cabinet Structure

Every Display Level Has a Purpose.

CSOC01 uses a wide, open refrigerated display section between two curved transparent end panels. Multiple dark horizontal shelves are mounted in front of a light-colored, perforated rear panel.

01

Curved Transparent Ends

Silver-colored trim follows the outer curved profile of the two side panels.

02

Open Customer-Facing Front

The cabinet has no front hinged or sliding glass door in its photographed configuration.

03

Dark Adjustable Display Shelves

Several raised shelves are visible above the lower display deck. Shelf positions and angles are configurable.

04

Black Upper Canopy & Base

A dark horizontal top cover and a substantial lower equipment section frame the refrigerated display.

05

White Rear Display Panel

The light rear surface provides visual contrast behind the dark shelves and merchandise.

Multi-Level Product Presentation

Configure the Shelves Around Your Merchandise.

The manufacturer's description identifies freely configurable multilevel shelving with adjustable shelf angles. This gives retail project buyers options when planning different chilled product categories.

SHELVING / 01

Flexible Shelf Positions

Multiple horizontal tiers allow merchandise to be arranged at different heights. The exact number of shelves, their spacing and dimensions depend on the configuration.

Confirm: Shelf count, vertical positions and usable shelf depth.

SHELVING / 02

Adjustable Shelf Angles

The official product description states that shelf angles can be adjusted, providing flexibility for suitable merchandise presentation requirements.

Confirm: Approved adjustment positions, edge restraints and shelf loading.

SHELVING / 03

Lower Display Deck

Beneath the raised shelves, the photograph shows an extended lower display surface forming the bottom of the accessible merchandising area.

Confirm: Product loading height, usable deck area and air-return clearance.

Air-Curtain Refrigeration Technology

Open-Front Display. Controlled Chilled Conditions.

HEDA's published CSOC01 description specifies fan cooling, multi-direction refrigeration technology, a bottom compressor arrangement and a digital temperature controller.

SYSTEM / 01

Fan Cooling

Forced-air refrigeration is specified for the M-HF model series. Final temperature performance should be confirmed under the intended conditions.

SYSTEM / 02

Bottom Compressor

The manufacturer identifies the compressor as positioned in the lower cabinet area. Final service access and installation clearances require confirmation.

SYSTEM / 03

Digital Temperature Control

A digital temperature controller is listed. The exact controller model, setpoint range and alarm functions should be checked.

SYSTEM / 04

LED Illumination

LED lighting is included in the published product features. The final lighting arrangement should be confirmed for each size.

Manufacturer Model Specifications

Four M-HF Models. Different Display Widths.

The following data reproduces the size, rated power, stated consumption figures, storage volume and display area from the official HEDA CSOC01 product specification table.

Model Dimensions
L × W × H (mm)
Rated Power
(W)
Listed 24h
Consumption*
Volume
(L)
Display Area
(m²)
Cooling way and temperature range
M15HF 1500 × 1000 × 2000 1600 15 1530 1.5 air cooling, 0-10 ℃
M20HF 2000 × 1000 × 2000 2300 20 2030 2.0
M25HF 2500 × 1000 × 2000 2700 25 2620 2.5
M30HF 3000 × 1000 × 2000 3000 30 3170 3.0

Technical Approval: Dimensions, volume, power and display area are manufacturer reference values. Final approved drawings and specifications take precedence for each order.

MODEL RANGE M15HF–M30HF

Four published cabinet sizes

NOMINAL LENGTHS 1500–3000 mm

Across the M-HF model series

LISTED VOLUME 1530–3170 L

Manufacturer reference volumes

Refrigerated Retail Applications

Self-Service Chilled Display for Modern Stores.

The open-front multideck format can be considered for retail locations where customers need convenient access to pre-chilled products. Product suitability depends on approved storage temperatures and local food safety requirements.

APPLICATION / 01

Supermarkets & Grocery Stores

Present compatible chilled packaged foods, dairy products and other refrigerated merchandise across multiple visible display levels.

APPLICATION / 02

Convenience Store Chilled Sections

Use accessible open shelving for suitable cold beverages and grab-and-go products where the store has sufficient space and appropriate ambient conditions.

APPLICATION / 03

Retail Chains & Food Displays

Discuss consistent cabinet widths, shelf layouts, finishes and electrical configurations for multiple retail locations or refrigerated store projects.

Commercial Chiller Procurement

Choose the Right Size and Cooling Configuration.

For a successful chilled display project, buyers should consider the planned cabinet location, merchandising requirements, operating conditions and destination-country electrical supply.

HEDA SHELVES accepts customized specifications, including shelf arrangements and cabinet requirements subject to technical review.

For Multi-Store Projects

Provide your store floor plan and proposed merchandise categories. Confirm the same approved product specification for every store before bulk ordering.

Open Chiller Quotation Checklist

Share the following information so the selected CSOC01 model can be reviewed.

Required M-HF model and quantity
Preferred overall cabinet dimensions
Products and packaging to be displayed
Required chilled storage temperature
Store ambient temperature and humidity
Shelf count, angles and dimensions
Required shelf load capacities
Voltage, frequency and phase
Compressor and refrigerant requirements
Digital controller and lighting configuration
Cabinet finish and OEM branding
Night protection or cover requirements, if any
Local compliance and technical documents
Shipping destination and delivery schedule
Installation & Daily Operations

Keep the Open Display Ready for Everyday Use.

An open-front refrigerated cabinet should be operated according to its approved installation manual, product temperature requirements and recommended loading conditions.

CHECK / 01

Ambient Conditions

Keep the unit away from excessive heat, direct sunlight and disruptive air currents, in line with the manufacturer's installation instructions.

CHECK / 02

Airflow Openings

Do not obstruct designated air-discharge and return areas. Follow the approved product loading limits and instructions.

CHECK / 03

Product Temperature

Load products at their required chilled temperature and monitor actual cabinet conditions. Do not rely on the chiller to rapidly cool warm products.

CHECK / 04

Cleaning & Service

Clean shelves and accessible display surfaces using approved procedures. Leave adequate access for refrigeration maintenance and service.

Frequently Asked Questions

Curve Shape Open Chiller FAQ

Common questions about the CSOC01 open-front refrigerated display, its dimensions, cooling, adjustable shelves and wholesale purchasing.

What is a curve shape open chiller?

A curve shape open chiller is a refrigerated multideck display with direct front access to the shelves and curved transparent side panels. HEDA's CSOC01 has a black cabinet, light-colored rear panel, multiple shelves and bottom-mounted refrigeration equipment.

Is CSOC01 a refrigerator or a freezer?

CSOC01 is a chilled display cabinet rather than a deep freezer. The published temperature references are above freezing. It is intended for suitable refrigerated merchandise, not frozen-food storage.

What is the operating temperature?

0-10 ℃. Please confirm the approved range of the exact chiller model under the intended operating conditions.

Which models and widths are available?

The published models are M15HF, M20HF, M25HF and M30HF, with nominal lengths of 1500, 2000, 2500 and 3000 mm respectively. The table lists a width of 1000 mm and a height of 2000 mm for all four.

Can shelf positions and angles be adjusted?

Yes. The official product description states that multiple shelves can be combined freely and their angles adjusted. Confirm exact adjustment options, shelf quantities and load ratings before ordering.

Does the open chiller use fan cooling?

Yes. The M-HF series is described as using fan cooling and multi-direction refrigeration technology. The exact refrigerant, fan arrangement and other technical details should be verified for the selected model.

What compressor brand does CSOC01 use?

The product description identifies joint-venture compressor options including Bitzer, Copeland and Panasonic. It does not establish one fixed compressor brand for every M-HF model. Request the exact compressor specification in your quotation.

Does the chiller include LED lighting?

LED lighting is included in the manufacturer's published features. Please confirm the exact lighting configuration and maintenance components for the selected cabinet.

Can the cabinet be customized?

HEDA SHELVES accepts customized chiller enquiries. Buyers can discuss preferred sizes, shelf arrangements, cabinet finishes and other requirements, subject to technical review and approval.

What information is required for a quotation?

Please provide the preferred M-HF model, order quantity, product categories, shelf requirements, target chilled temperature, destination-country electrical specifications, cabinet finish and shipping destination.
