Carton Flow Racking System for FIFO Order Picking

No.WCFR001
HEDA Carton Flow Racking System uses inclined wheel tracks to move cartons, boxes and compatible totes toward the picking face under gravity. The original product features blue steel uprights, red-orange support beams, divided flow lanes and multi-level picking positions. Selected configurations include casters for easier repositioning. Suitable for FIFO order picking, replenishment and assembly-line parts handling, with dimensions and lane arrangements customized to project requirements.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / CARTON FLOW STORAGE

Carton Flow
Racking System

Keep cartons moving and picking positions ready for the next order. HEDA carton flow racking uses inclined wheel tracks to move compatible boxes and totes toward the picking face under gravity, supporting efficient FIFO stock rotation and warehouse picking.

FIFO Carton Picking Gravity Wheel Tracks Multi-Level Storage Custom Flow Lanes
GET QUOTE NOW

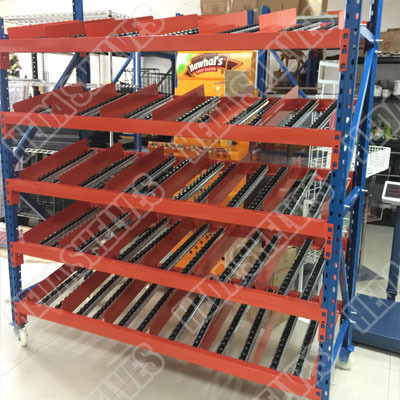

HEDA carton flow picking rack with blue steel uprights, red-orange beams, inclined wheel tracks and casters
Actual HEDA product photograph CARTON FLOW / FIFO PICKING
01 / INVENTORY ROTATION

First-In, First-Out

Gravity-fed lanes help present earlier-loaded cartons first, supporting orderly product rotation.

02 / ORDER PICKING

Accessible Pick Faces

Multiple inclined lanes keep stored cartons visible and accessible from the picking side.

03 / STORAGE ORGANIZATION

Organized Carton Lanes

Divided flow tracks help organize different boxes and compatible containers across storage levels.

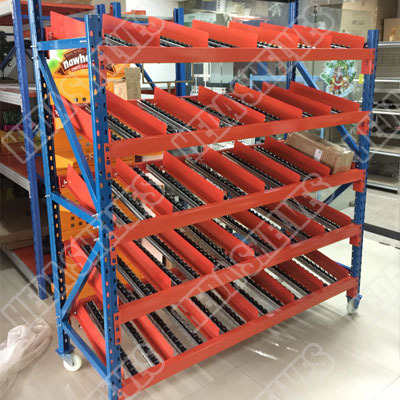

Close front-angle view of HEDA carton flow rack showing red-orange lane dividers and inclined black wheel tracks
Real product reference showing the inclined wheel tracks, supporting beams and divided storage lanes.
Real Product Construction

A Practical Structure for Carton Picking

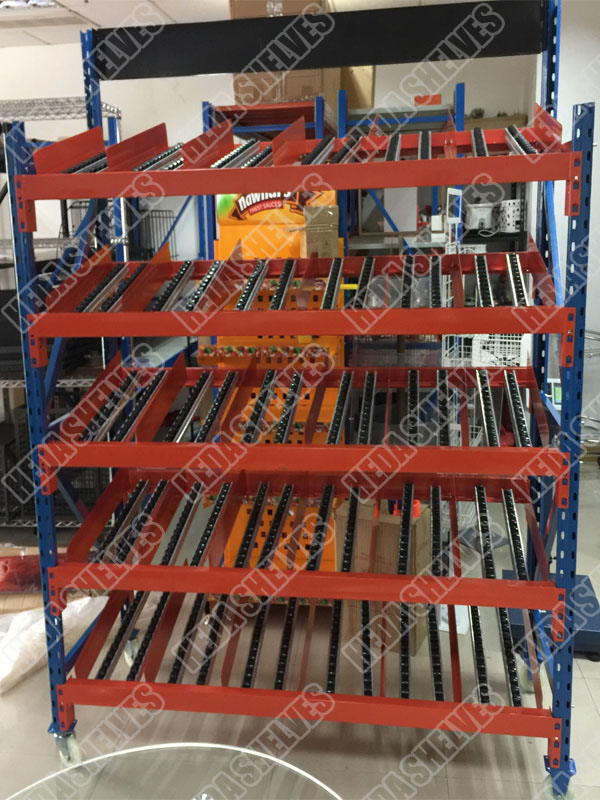

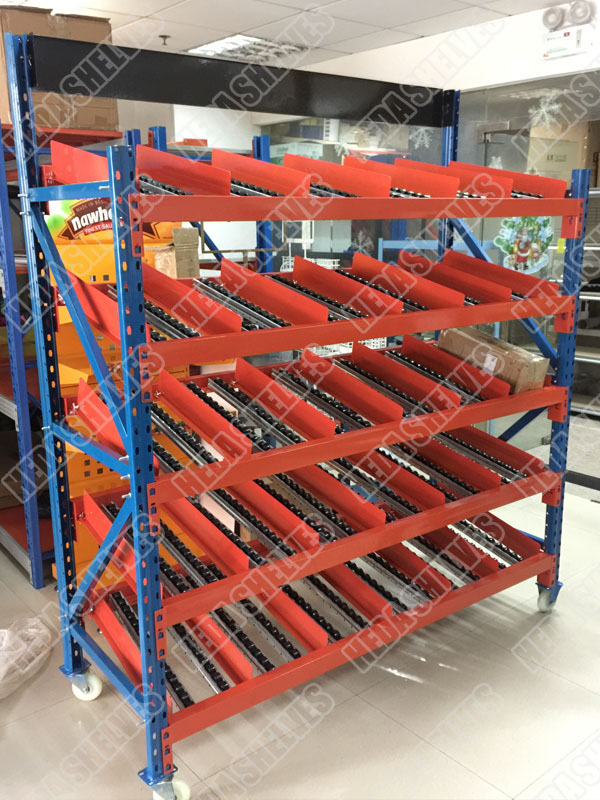

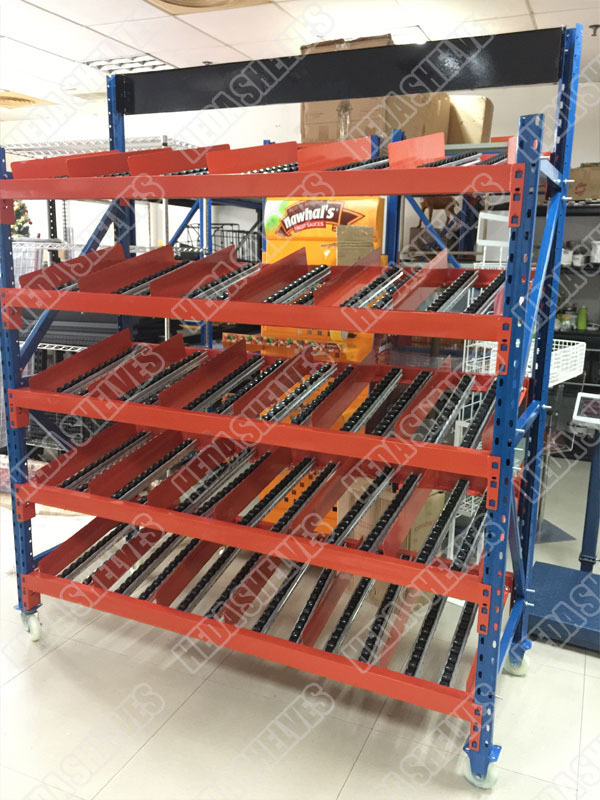

The original product photographs show a multi-level steel frame fitted with narrow wheel-flow tracks and lane separation components. The arrangement provides individual paths for compatible cartons and boxes to move toward the picking side.

01

Steel Upright Frames

Blue perforated steel uprights and supporting bracing form the main storage structure.

02

Inclined Wheel Tracks

Rows of small wheels provide gravity-assisted movement for suitable cartons and containers.

03

Multi-Level Lane Layout

Red-orange supporting members and lane guides organize multiple picking positions within the rack.

04

Caster-Equipped Configuration

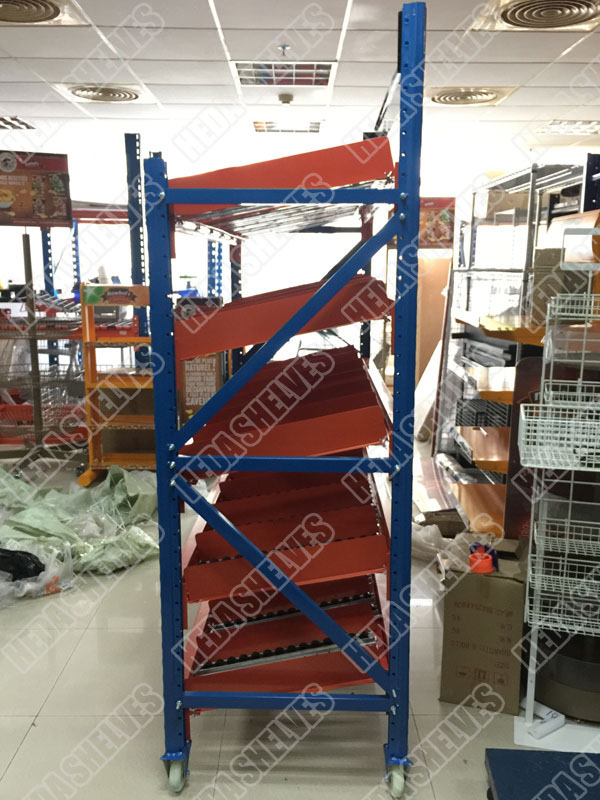

Selected photographed configurations include bottom casters for repositioning within suitable work areas.

Working Principle

From Replenishment to Picking

Carton flow racking uses the weight of stored goods and an inclined track arrangement to support forward movement. With rear replenishment and front retrieval, the system can maintain first-in, first-out stock rotation.

01

Load from the Rear

Place compatible cartons or containers onto the elevated end of each designated flow lane.

02

Move Under Gravity

The inclined wheel tracks allow goods to travel toward the front picking position without a powered conveyor drive.

03

Pick from the Front

Operators retrieve cartons or individual items from the picking face. The next carton can move forward into position.

Design Consideration

Reliable carton flow depends on the carton base, dimensions, weight, lane angle and wheel arrangement. The final design should be verified using the actual goods to be stored.

Application Scenarios

Designed for Active Picking Operations

Carton flow racks are suitable for storage areas where cartons and small-item containers are replenished and retrieved frequently. The arrangement helps maintain orderly picking positions and organized stock rotation.

APPLICATION 01

Warehouse Order Picking

Organize frequently picked cartons and compatible totes in forward-facing lanes for warehouse and distribution operations.

APPLICATION 02

Assembly-Line Parts Supply

Position suitable parts boxes near production work areas to support organized material replenishment and component access.

APPLICATION 03

Distribution & Replenishment

Support regular picking and replenishment of compatible boxed products where FIFO stock handling is required.

Custom Carton Flow Solutions

Configure the Rack Around Your Picking Needs

Different cartons and containers require different wheel-track arrangements, lane widths and storage configurations.

HEDA SHELVES supports customized carton flow rack designs according to product dimensions, handling conditions and available warehouse space.

Important for Project Planning

The actual configuration should be checked against carton weight, bottom surface condition, required flow direction and picking frequency. Mobile or stationary arrangements can be discussed according to the operating environment.

What We Need for a Quotation

Carton, box or tote dimensions
Maximum weight of each loaded container
Number of storage levels and flow lanes required
Available floor space and installation dimensions
Carton replenishment and picking workflow
Stationary or mobile rack requirements
Expected daily picking frequency and throughput
HEDA SHELVES / FACTORY DIRECT

Need a Carton Flow Rack for Your Warehouse?

Share your carton sizes, storage quantities and picking requirements. Our team can help you evaluate a suitable carton flow racking configuration for your operation.

1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.
