Cantilever Racking System For Outdoor Storage

No.00297
Discover the benefits of the Cantilever Racking System for outdoor storage, including durability, easy access, and customization. Boost your storage efficiency today!
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES / OUTDOOR CANTILEVER STORAGE PRODUCT NO.00297
Covered Long-Material Storage Solutions

Store Longer. Under Cover.

HEDA SHELVES Cantilever Racking System for Outdoor Storage is designed for businesses handling long, bulky and irregularly shaped materials that require organized storage outside a conventional warehouse building. Product No.00297 is represented by genuine manufacturer images of roof-covered cantilever storage installations for timber, pipes and other long goods. The featured configurations combine projecting steel support arms, vertical frames, structural bracing and protective roof canopies. The open-front storage arrangement supports handling access, while a suitable overhead canopy can reduce direct exposure to rain and sunlight from above. Rack capacities, roof construction, corrosion protection and foundation requirements are determined according to the actual outdoor site.

Outdoor Material Storage Roof-Covered Configurations Custom Steel Racking

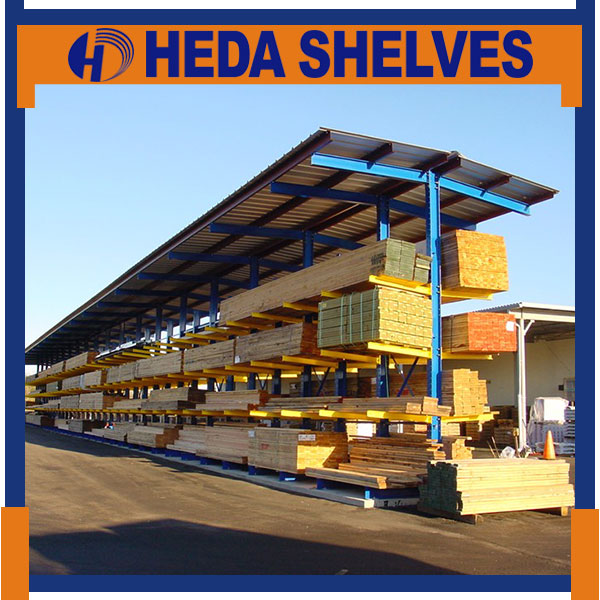

Original HEDA No.00297 covered outdoor timber storage installation with a long pitched steel roof, blue supporting frames, yellow-orange cantilever arms and horizontally stacked timber boards
Original HEDA outdoor cantilever installation showing long timber storage beneath a steel roof canopy.
Covered Storage Roof-canopy configurations illustrated in the gallery
Open-Front Access Projecting arms for compatible long materials
Custom Capacity Arm, upright and complete rack ratings
Outdoor Engineering Coating, wind, roof and foundation assessment
Real Covered Storage Installation

Long Storage Rows Beneath a Protective Roof

The manufacturer gallery includes a real outdoor storage installation with a grey steel supporting structure and corrugated overhead roofing. The long rack row holds multiple bundles of timber and board products at different elevations.

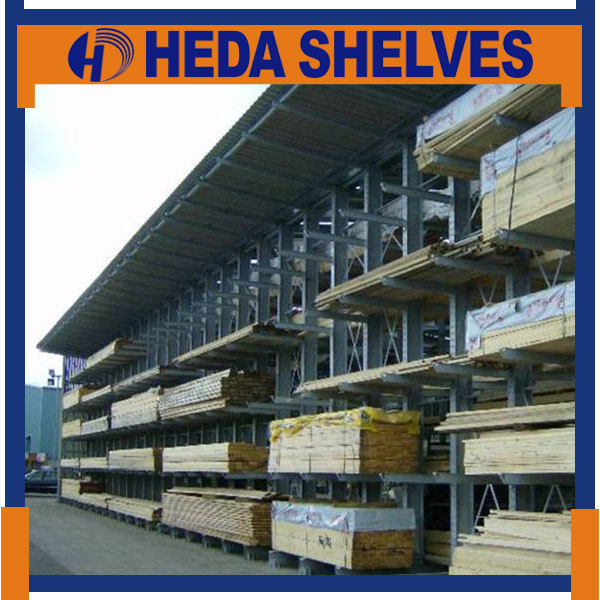

Original HEDA No.00297 grey steel outdoor cantilever storage structure with a long corrugated roof, braced support frames and multiple horizontal levels carrying bundled timber and wood boards
Original outdoor timber storage installation with grey steel frames and a continuous overhead roof.
Outdoor Storage Planning

Shelter the Materials. Preserve Loading Access.

A covered cantilever configuration should balance protection from overhead weather exposure with practical access to the stored goods. The roof, arm levels and handling aisle must be planned as one operating layout.

Roof Coverage

A canopy can provide overhead shelter, subject to roof projection, orientation and weather.

Multiple Material Levels

Separate cantilever elevations allow organized storage of compatible long goods.

Open Handling Aisle

The loading face should accommodate equipment movement and long-material retrieval.

Site-Specific Structure

Frame sections, bracing, roof supports and anchors require suitable engineering verification.

Roof protection clarification: The original photograph shows an open-sided roof-covered structure. A roof canopy can reduce exposure to precipitation and sunlight from above, but it does not guarantee that stored goods remain completely dry during wind-driven rain. The roof projection, site orientation, drainage and required weather protection must be agreed during project design.
Actual Outdoor Pipe Storage

Different Pipe Storage Layouts for Outdoor Handling Areas

Two original No.00297 photographs show roof-covered pipe storage installations. One features blue structural frames and rail-style retaining elements for large pipe bundles. The other highlights orange cantilever arms supporting metallic pipes beneath a steel canopy. These are different storage configurations, not identical rack kits.

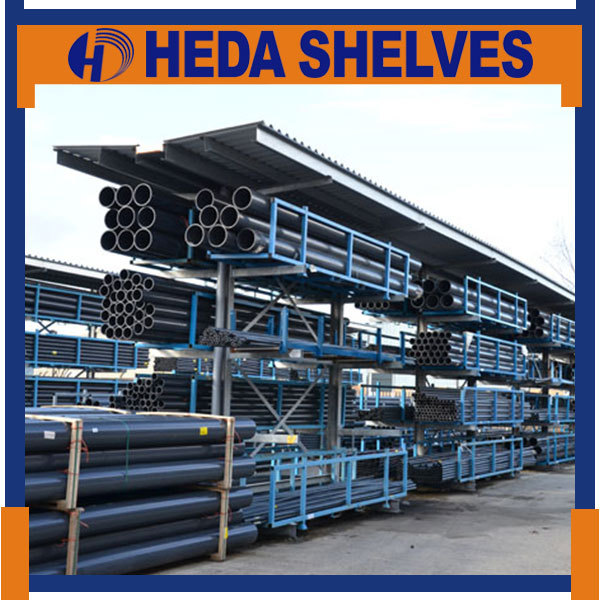

Original HEDA No.00297 covered outdoor pipe storage facility with blue steel rack frames, blue retaining rails, stacks of long dark steel pipes, visible pipe ends and a roof canopy
OUTDOOR PIPE INSTALLATION / 01

Blue Steel Pipe Storage Structure

This original installation shows a large quantity of long dark pipes stored across multiple horizontal levels. Blue steel frames and retaining structures are visible at the loading face. A corrugated roof covers the upper storage area. The stored pipes include bundled materials with exposed circular ends. This arrangement illustrates the importance of load restraint, sufficient support and safe equipment access when storing long cylindrical goods outdoors.

Visible: blue steel frames, retaining rails, dark pipes and overhead roofing.

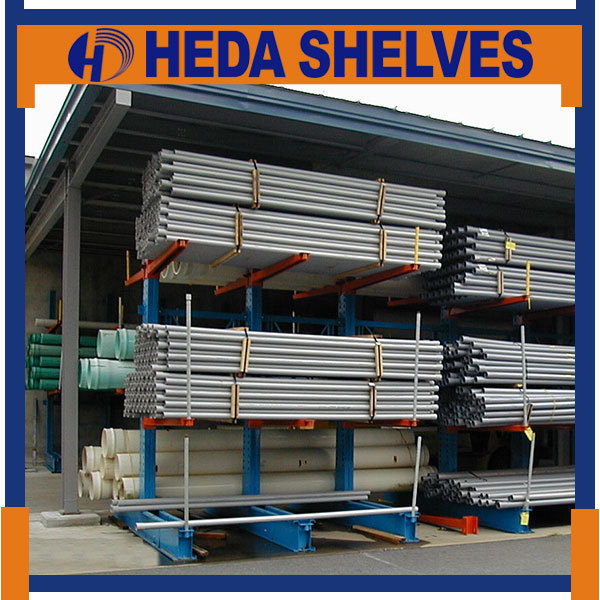

Original HEDA No.00297 blue and orange outdoor cantilever rack installation with orange steel arms, blue uprights, multiple bundled silver metal pipes and a corrugated roof canopy
OUTDOOR PIPE INSTALLATION / 02

Orange Cantilever Arms Supporting Metal Tubes

The second photograph shows a blue-and-orange cantilever rack system loaded with long metallic tubes. Orange steel arms project from blue vertical upright frames. Several bundles of silver-colored pipes rest horizontally across the storage levels. A roof canopy shelters the rack from direct overhead precipitation. Final arm capacity, support spacing, load retention and roof clearance must be confirmed for the intended pipe bundles.

Visible: blue uprights, orange support arms, metallic pipe bundles and corrugated roofing.

Pipe loading: The photographs demonstrate actual outdoor pipe storage arrangements. They do not establish a universal weight capacity for the arms or retaining systems. The number of support points, bundle weight, material overhang and pipe-rolling protection must be confirmed for each project.
Manufacturer Concept Illustration

A Roof-Covered Cantilever System Built Around Long Goods

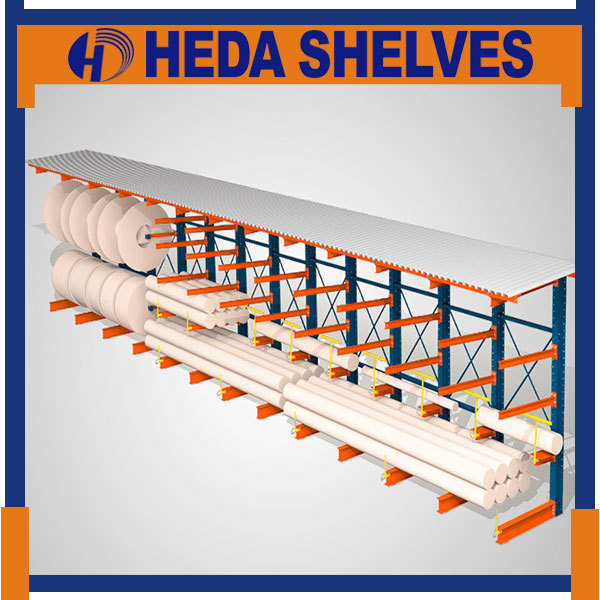

The original product illustration shows a long multi-bay cantilever rack with a pitched roof, blue steel supporting frames and orange storage arms. It illustrates how an overhead canopy can be combined with open-front material storage.

Structural Design Concept

Storage Arms and Canopy in One Layout

The illustrated system combines multiple horizontal storage levels with an overhead roof extending along the rack row. The actual roof framing and load path must be designed for the proposed site.

Roof: Sloping roof geometry for planned water runoff.
Uprights: Blue supporting frames with visible diagonal bracing.
Cantilever arms: Orange projecting arms at multiple elevations.
Storage: Long cylindrical materials resting on multiple support points.
Original HEDA No.00297 manufacturer concept rendering of a long outdoor cantilever rack with a pitched metal roof, blue diagonal-braced steel frames, orange cantilever arms and white cylindrical materials
Original HEDA concept rendering illustrating a roof-covered cantilever storage configuration.
Rendering distinction: This is a manufacturer concept image, not a completed customer installation photograph or an approved structural drawing. Roof length, slope, support sections, fastening details and load ratings must be established for the actual project.
Outdoor Structural Engineering

Outdoor Racking Must Be Designed for More Than Stored Weight

An outdoor cantilever installation faces environmental conditions that may not apply to an indoor warehouse rack. A roofed configuration also introduces additional structural demands that must be considered from the beginning.

01

Wind Actions

Evaluate the site's wind conditions, roof uplift, lateral forces, exposure and structural bracing. Wind loads may influence columns, roof connections, anchors and foundations.

02

Rain and Drainage

Plan roof slope, drainage direction, guttering where required, runoff discharge and water management around the rack bases. Avoid uncontrolled water accumulation.

03

Snow and Weather Loads

Where relevant, assess snow, drifting, ice and roof maintenance loads according to local requirements. These loads must not be estimated from product photographs.

04

Foundations and Anchors

Confirm the outdoor foundation, surface condition, base plates, anchoring design and structural stability. The supporting ground must be suitable for the completed system.

Engineering requirement: The safe working loads of the rack arms and the environmental design loads of the roof must be considered together. An indoor rack should not simply be placed outside or fitted with a roof without assessing additional wind, uplift, weather and anchoring requirements. Final design criteria must follow applicable local standards and site conditions.
Outdoor Protection and Material Selection

Specify the Finish, Roof and Maintenance Needs

Outdoor storage performance depends on more than the steel frame. Coating systems, roof materials, drainage and maintenance access should suit the environment at the installation site.

DESIGN CONSIDERATION / 01

Coated Steel Racking

The No.00297 specification lists electrostatic spray surface treatment with anti-rust and corrosion-protection features. The actual coating specification, surface preparation and suitability for weather exposure must be confirmed for the site.

DESIGN CONSIDERATION / 02

Enhanced Corrosion Protection

For coastal, highly humid or aggressive outdoor environments, request an assessment of additional corrosion-protection requirements. A galvanized or alternative protective finish may be discussed separately. Do not assume galvanizing is included in the standard No.00297 specification.

DESIGN CONSIDERATION / 03

Roof and Drainage Design

Confirm the roof covering, support structure, projection, pitch, water runoff and drainage arrangements. The selected materials and roof geometry should suit local weather conditions and the required coverage area.

Coating distinction: Electrostatic spray coating and hot-dip galvanizing are different surface-protection processes. The manufacturer lists electrostatic spray for No.00297. Any enhanced outdoor coating, galvanizing or special corrosion-resistance requirement must be confirmed in the actual quotation.
Cantilever Load Engineering

Check the Arms, Uprights and Complete Structure

HEDA lists load capacity as customizable for Product No.00297. The rack should be designed around the intended materials, their weight distribution and the additional requirements of an outdoor site.

LOADING / 01

Cantilever Arm Capacity

Each arm must be rated for the intended load. Capacity depends on arm section, projection, connection and load location. The permissible load should be stated for the approved rack configuration.

LOADING / 02

Long-Material Support Spacing

Pipes, timber and long profiles may need multiple support points along their length. The approved spacing depends on product stiffness, bundle weight, deflection and allowable overhang.

LOADING / 03

Upright and Base Stability

The structure transfers loads through the upright frames, bracing, base members and anchor connections. Outdoor design must also consider applicable lateral and environmental loads.

No fixed rated capacity: The manufacturer does not publish a universal per-arm numerical rating for No.00297. Final documentation should confirm allowable arm loads, upright loads, loading patterns and whole-system limitations. A roof-covered rack requires the roof support arrangement to be included in the engineering assessment.
Outdoor Storage Layout Planning

Five Decisions Before Designing an Outdoor Rack

A suitable outdoor cantilever system should be developed from the materials being stored, the available yard space and the environmental conditions of the installation site.

01

Stored Material Dimensions

Provide the length, width, diameter and maximum bundle weight of the goods. These establish preliminary arm projection, support spacing and required storage levels.

02

Outdoor Site Conditions

Confirm site location, exposure, prevailing wind conditions and relevant snow or weather loads. Identify coastal exposure or other potentially corrosive environments.

03

Canopy Dimensions and Drainage

Specify whether a roof covering is required, the preferred roof projection, the coverage area and the water discharge arrangement. Confirm required clearance between stored loads and the roof.

04

Loading and Retrieval

Identify the forklift, crane or other lifting equipment. Plan handling aisles, load approach directions, turning space and suitable material retention.

05

Foundations and Local Approvals

Review ground and foundation conditions, drainage, anchors, vehicle protection and any relevant local structural or construction approvals. Final construction must follow the approved design.

Manufacturer Specifications

Outdoor Cantilever Racking Technical Reference

No.00297 is a customizable cantilever racking system for storing suitable long and bulky materials. The product page lists custom dimensions, capacity, levels, colors and surface treatment.

Important scope note: The product gallery shows covered outdoor installations, but the specification table does not establish one fixed roof size, roofing material or roof load rating. These details, together with the required coating protection, must be specified for each project.

No.00297 / Product Information

Product No. 00297
Product Name Cantilever Racking System for Outdoor Storage
Product Category Industrial Cantilever Racking
Main Material Cold-Rolled Steel
Product Size Customizable
Steel Thickness Customizable
Load Capacity Customizable; Final Structural Rating Required
Storage Levels Customizable
Color Options Blue, Orange, Black, White, Grey, Red or Customized
Surface Finish Electrostatic Spray Surface
Surface Features Manufacturer-Listed Anti-Rust and Corrosion Protection
Steel Structure Uprights, Cantilever Arms, Base Members, Bracing and Connections
Assembly Knock-Down Structure
Featured Roof Roof-Covered Configurations Shown in Product Gallery
Roof Specifications To Be Confirmed for the Approved Project
Main Applications Pipes, Lumber, Long Steel Profiles and Compatible Long Goods
Use Areas Storage Yard, Industrial Facility, Warehouse and Suitable Storage Area
Customization OEM & ODM Accepted
Warranty Reference Manufacturer Page Lists 5 Years; Terms and Scope to Be Confirmed
Engineering Site-Specific Loading, Wind, Weather, Stability and Foundation Review
Outdoor Storage Applications

Organized Storage for Long Industrial Materials

Covered cantilever storage can be considered for materials that need accessible long-format storage in an outdoor yard or industrial handling area. Suitable weather protection and storage conditions must be determined for each material.

APPLICATION / 01

Timber and Lumber Yards

Organize timber boards, wooden beams and suitable bundled construction materials on horizontal storage arms. Roof coverage, ventilation, support spacing and material protection should suit the products.

APPLICATION / 02

Steel Pipes and Tubes

Store compatible long pipes and tubular products on engineered support positions. Round materials require suitable load retention, support distribution and handling arrangements.

APPLICATION / 03

Building Material Distribution

Create organized outdoor storage for suitable profiles, bars and long construction products. Rack geometry, roof clearance, coating protection and loading equipment should be designed for the site.

Custom Outdoor Storage Project

Plan the Racking Around Your Site.

HEDA SHELVES can discuss a customized outdoor cantilever storage solution based on material dimensions, required capacity, handling equipment and local site conditions. For roof-covered systems, the canopy and racking structure should be assessed together.

Quotation priority: Please provide your storage-yard dimensions, material type, longest load and maximum bundle weight. Specify whether a roof covering is required and share the installation location so that weather, corrosion and structural requirements can be evaluated. Include available foundation information and the equipment used for loading.

Information Needed for Your Quotation

Project country and location
Outdoor yard dimensions
Site layout or survey drawing
Material type and dimensions
Maximum material length
Maximum bundle weight
Number of storage bundles
Required storage levels
Preferred arm projection
Preferred rack height
Rack row length and quantity
Single or double loading face
Required roof coverage
Canopy projection and clearance
Roof drainage requirements
Site wind exposure
Snow load if applicable
Coastal or corrosive exposure
Preferred coating specification
Existing foundation information
Forklift or crane details
Loading aisle dimensions
Material retention requirements
Applicable local approvals
Preferred rack colors
Delivery destination

Final rack capacity, canopy design, structural connections, weather loads, coating and foundation requirements must be established in the approved project specification.

Frequently Asked Questions

Outdoor Cantilever Racking FAQs

What makes outdoor cantilever racking different?

Outdoor racking must account for exposure to rain, sunlight, wind and other local environmental conditions. Roof-covered configurations also require engineering for the canopy and its additional structural loads.

Does No.00297 include a roof?

The official product gallery prominently shows roof-covered outdoor storage configurations. However, the published technical table does not define a fixed canopy size, roof material or complete standard supply scope. Roof inclusion and specifications should be confirmed in the quotation.

Will a roof keep stored goods completely dry?

A suitable roof can reduce exposure to rain from above. However, an open-sided canopy cannot guarantee complete protection from wind-driven rain or outdoor humidity. Roof projection, orientation and drainage should match the required level of protection.

Is the rack hot-dip galvanized?

The No.00297 manufacturer specification lists electrostatic spray surface treatment. Hot-dip galvanizing is not identified as the standard finish for this specific model. If galvanizing or additional outdoor corrosion protection is required, request a separate coating specification.

What is the load capacity?

HEDA lists load capacity as customizable for No.00297. The approved load depends on arm length, material distribution, upright design and the complete rack structure. Roof and environmental loads require additional checks for covered outdoor configurations.

Can the system store steel pipes and timber?

Yes. The manufacturer gallery includes examples of roof-covered storage for pipes and timber products. Each material requires an appropriate support arrangement, load rating and retention method.

Why are wind loads important?

Wind can create lateral forces and roof uplift on an outdoor rack with a canopy. The roof, support columns, bracing, connections and anchoring must be designed for the site's applicable wind conditions.

Can the rack be installed on existing concrete?

An existing concrete area may be suitable only after its capacity, condition and anchoring requirements have been assessed. Outdoor wind and uplift effects may change the foundation requirements. A structural review is necessary before installation.

Can the rack dimensions and colors be customized?

Yes. HEDA lists product dimensions, steel thickness, number of levels and colors as customizable. The final layout must also suit the specified loading capacity, roof and outdoor conditions.

What information is needed for a quotation?

Please provide the storage-yard layout, installation location, stored material dimensions, maximum bundle weight, required storage levels and handling equipment. Also indicate the required roof coverage and any special corrosion-protection requirements.

HEDA SHELVES / CUSTOM OUTDOOR STORAGE

Need Cantilever Racking for an Outdoor Storage Yard?

Share your stored material dimensions, required capacity, site location and roof coverage needs. Discuss a customized outdoor cantilever storage solution with HEDA SHELVES.

GET QUOTE NOW →
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam

HEDA SHELVES / CUSTOMER SUPPORT

Frequently Asked Questions

Find answers to common questions about our manufacturing, product customization, ordering, delivery and warehouse shelving solutions.

01 Are you a manufacturer or a trading company?

We are a manufacturer. HEDA SHELVES has specialized in manufacturing warehouse racking systems, supermarket shelving and various display stands since 2001.

02 Where is your factory located? Can I visit?

Our factory is located in Foshan, Guangdong, China. We warmly welcome customers to visit our factory. Please contact us to arrange your visit.

03 Are product samples available?

Yes, samples are available upon request. A sample charge applies, and the sample cost will be refunded when you place your next order.

04 Can you manufacture products according to our designs?

Yes. HEDA SHELVES has extensive experience in customized shelving and display solutions. We can manufacture products according to customer designs and project requirements.

  • Floor plans and 3D drawings can be provided by HEDA engineers.
  • Customized shelving layouts and configurations are available.
  • Our products support modular construction and integration into different store or warehouse layouts.
05 Can I order products in customized sizes and colors?

Of course. We welcome custom sizes and colors to meet different storage, retail display and project requirements.

06 Do you manufacture shelving and displays using different materials?

Yes. Our products are mainly manufactured from metal. We also produce shelving accessories and display solutions using materials such as:

  • Wood
  • Titanium alloy
  • Acrylic
  • Glass
  • Other materials according to project requirements
07 What is your production and delivery lead time?

Our general production lead time is within 15 days. The actual lead time depends on the order quantity, product design and customization requirements.

08 What are your payment terms?

Our standard payment terms are:

  • 30% deposit upon confirmation and signing of the Proforma Invoice (PI).
  • 70% balance paid by T/T before delivery.
09 How can my order be shipped?

We can arrange shipment using the following methods:

Option 1 — Sea Freight

Please provide your destination seaport. We will check and update the sea freight cost based on your shipping destination.

Option 2 — Customer-Nominated Shipping Agent

If you have your own shipping agent or freight forwarder, please provide their contact details. We will coordinate the delivery arrangements with your nominated agent.

10 What is your minimum order quantity (MOQ)?

Our minimum order quantity is generally 10 sets. Larger order quantities may qualify for more competitive pricing.

11 How can I get a quick and accurate quotation?

Since different customers and projects require different product sizes and specifications, providing the following information will help us prepare your quotation more efficiently.

For Warehouse Storage Racking

  1. Products to be stored: Tell us what items you plan to store.
  2. Storage method: Specify whether your products will be stored in cartons or on pallets.
  3. Weight and dimensions: Provide the unit weight and dimensions (Length × Width × Height) of each carton or pallet.
  4. Storage configuration: Tell us how many cartons or pallets you need per level and how many storage levels are required.
  5. Available space: Provide the dimensions of your storage area. A warehouse floor plan is especially helpful.
  6. Accessories: Specify any required wire decking, metal decking, wooden decking, safety bars, shims or other accessories.

For Supermarket & Retail Display Shelving

  1. Store layout: Provide the size of your retail space or a store floor plan.
  2. Products to display: Tell us what merchandise you plan to display and the required loading capacity.
  3. Preferred shelving style: Specify your requirements for metal or wood construction, dimensions, colors and design.

Not sure about the specifications? Simply tell us about your storage or display requirements. Our experienced sales team will help you develop a suitable shelving solution.

12 How do I install the shelving or racking system?

We provide step-by-step installation drawings for each type of shelving and racking system.

Our experienced team supports customers throughout the design, production and after-sales stages.

13 How are your products packed for shipment?

Our shelving products are generally flat-packed and protected with bubble wrap or protective film, using standard export cartons.

Other packaging options, such as wooden boxes, are also available according to customer requirements.

14 What is the difference between a starter rack and an add-on rack?

The main difference is the number of upright frames required.

  • Starter Rack (Main Rack): The first shelving unit in a row, supplied with two upright frames.
  • Add-On Rack: An extension unit that uses one additional upright frame and connects to the preceding rack.

Example: For a continuous row of 15 wall shelving bays, the configuration would be 1 starter rack + 14 add-on racks.

We use Cookies to improve your browsing experience. By continuing to use this website, you agree to our use of Cookie.
