Industrial Cantilever Racking System - Warehouse

No.WCR001
Cantilever racks are composed of upright columns, cantilever beams, base and connecting rods. Cantilever rack is suitable for storing long material, annular material, plate, pipe and irregular goods.
Download
View all downloads
  • Description

  • Specification

  • FAQ

HEDA SHELVES · WCR001

A smarter way to store long and bulky materials.

HEDA's Industrial Cantilever Racking System is designed for inventory that does not fit neatly into conventional pallet rack bays. Open-front storage arms support long goods while allowing straightforward access for loading, unloading and stock organization.

Open-front access Single- or double-sided Project-based customization

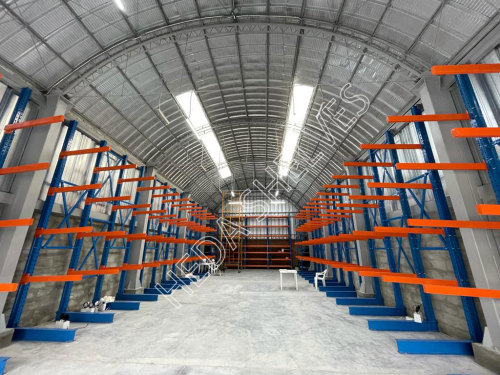

HEDA cantilever racking · real warehouse installation

Why Cantilever Racking

Built for access, visibility and flexible storage.

Instead of forcing long inventory into standard shelf dimensions, the open-arm layout gives each product group dedicated support and a clearer handling path.

01 / ACCESS

Load from the open face

Without front columns between support arms, long items are easier to approach using suitable handling equipment.

02 / ORGANIZATION

Keep long stock off the floor

Separate storage levels help organize bars, pipes, timber and other profiles for cleaner inventory management.

03 / ADAPTABILITY

Configure around your goods

Arm arrangement, rack dimensions and layout can be specified around material lengths, load requirements and site conditions.

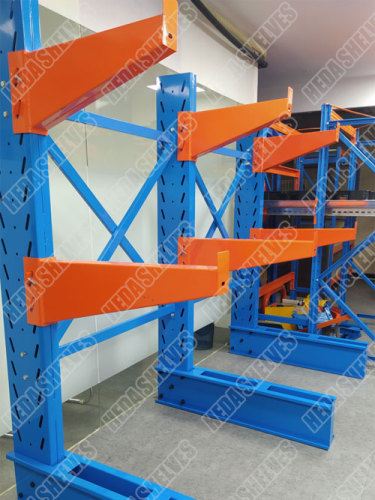

Genuine HEDA blue cantilever uprights with orange projecting arms, bracing and steel base structure

Reference product photo. Arm connections, upright perforations and profiles depend on the selected configuration.

System Construction

A straightforward structure for difficult-to-store loads.

1

Uprights and bases

Vertical columns connect to the base assemblies to form the primary support structure.

2

Projecting cantilever arms

Open support arms carry stored materials. Arm spacing and arrangement are selected to suit the goods.

3

Bracing and connecting members

Bracing links the uprights and contributes to the stability of the designed racking system.

Layout Options

One side or both sides. Designed for your floor plan.

Choose the arrangement that fits where materials are stored and how they will be accessed.

Wall-side / perimeter layouts

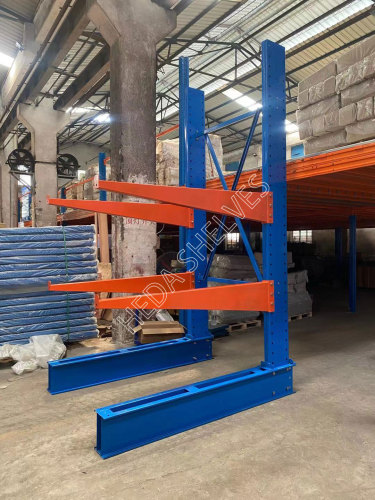

Single-Sided Cantilever Racking

Arms project from one side of the upright line, making this format suitable for storage rows positioned along a wall or perimeter.

Central aisle / island layouts

Double-Sided Cantilever Racking

Storage arms extend on both sides of the upright line so materials can be accessed from two sides of a central rack row.

Photos show separate HEDA reference configurations; component shapes and finishes are not interchangeable specifications.

Typical Applications

Storage for materials that conventional racks cannot easily accommodate.

Common applications include industrial supplies, building materials and long-profile inventory.

HEDA cantilever system holding bundles of rectangular steel tubing in several colors

Steel Pipes & Tubes

Store and separate bundles of metal tubes and hollow structural sections across accessible support levels.

HEDA cantilever product display carrying timber, pipes, panels and other mixed long items

Timber & Building Materials

Organize timber, boards and construction supplies with an open-arm format suited to long stock.

HEDA blue cantilever rack carrying assorted long metal profiles, channels and boards

Bars, Profiles & Sections

Keep long bars, metal channels and other elongated inventory separated and easier to identify.

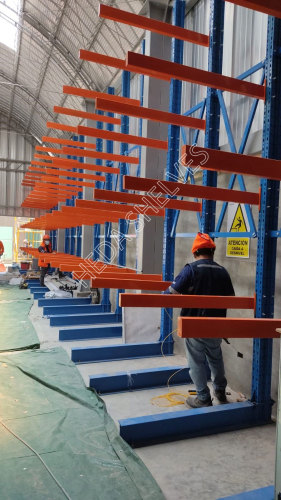

Original HEDA photograph of installers working beside a long cantilever racking row

Installation Reference

From individual rack bays to long storage runs.

Warehouse layout is part of the solution. Upright spacing, arm levels, aisle clearance and handling routes should be planned together for the materials and equipment used on site.

Made to Your Requirements

What we need to design your racking proposal.

Cantilever systems are specified around the application—not a one-size-fits-all load rating. Share the details below so HEDA can discuss a suitable configuration with you.

Arm capacity, structural dimensions, anchoring and outdoor suitability must be confirmed for each project. No standard load rating is implied by the reference images.

01. Materials to be stored

Timber, pipes, steel sections or other goods.

02. Load dimensions

Material or bundle length, width and depth.

03. Load weights

Maximum weight of each bundle or stored unit.

04. Warehouse layout

Floor plan, available height and storage footprint.

05. Handling method

Forklift, crane or other loading equipment and aisle needs.

06. Configuration preference

Single/double-sided, indoor/outdoor and finish requirements.

Buying Guide

Frequently asked questions.

How do I choose the arm loading capacity?

Provide the weight, length and distribution of your stored items. The required arm capacity and support layout need to be assessed for the actual loading condition.

Can the arm heights be adjusted?

Adjustable arm arrangements are available. Height settings and future changes depend on the selected upright and arm connection design.

Can cantilever racks be installed outdoors?

Outdoor configurations can be discussed. Site exposure, corrosion protection, loading and any roof requirements must be reviewed separately.

Can you customize sizes and colors?

Yes. HEDA offers project-based customization of dimensions, configurations, colors and surface treatments, subject to technical confirmation.

Talk to HEDA SHELVES

Planning storage for long or bulky inventory?

Send your material details and warehouse plan. Our team can help you explore a cantilever racking configuration for your project.

Request a Custom Quote Product reference: WCR001
1. Light and medium upright

2. Heavy duty upright

3. Step beam

4. Box beam
