Reference Stand Height
The original technical illustration labels the overall vertical height as 2180 mm.
The HEDA Black Pegboard Custom Hardware Display Stand combines a black round-hole pegboard with a projecting merchandise shelf, a raised-edge lower platform and an angled upper display header. Designed for hardware and tool merchandising, PBDS01 provides vertical hanging-display potential together with horizontal shelf space in one freestanding fixture. Its understated all-black appearance creates a consistent background for customized retail presentation.
GET QUOTE NOW

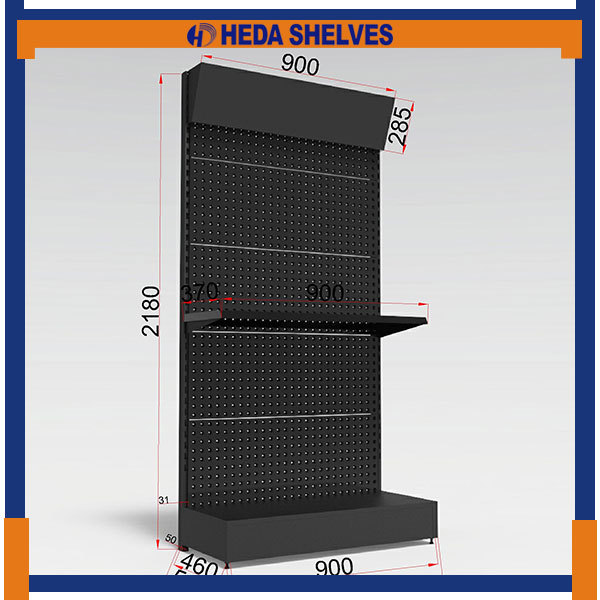

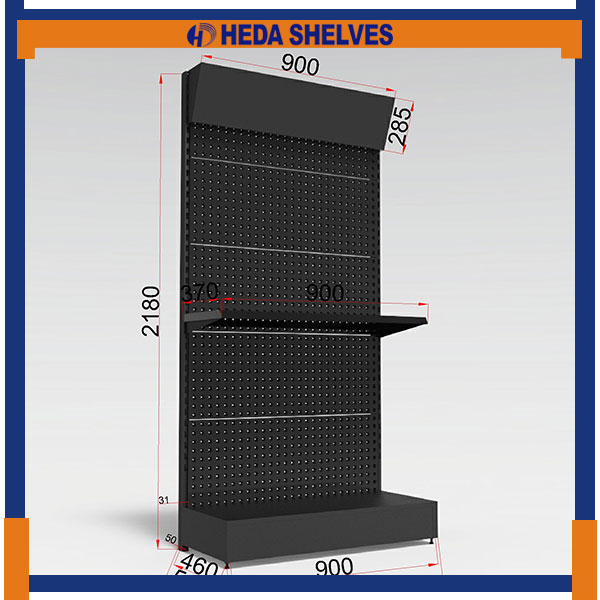

HEDA's original product illustration includes measurements for one PBDS01 reference configuration. These dimensions help buyers understand the overall scale before confirming their own store requirements.
The original technical illustration labels the overall vertical height as 2180 mm.
A 900 mm width is shown across the top of the stand in the original dimensional image.
HEDA lists custom dimensions as an option. The final drawing should define the overall size and shelf geometry.
The original factory photographs provide a clearer view of the black perforated panels, the projecting shelf, supporting uprights and the lower merchandise platform. These images show the actual product, not a generic black retail display rack.

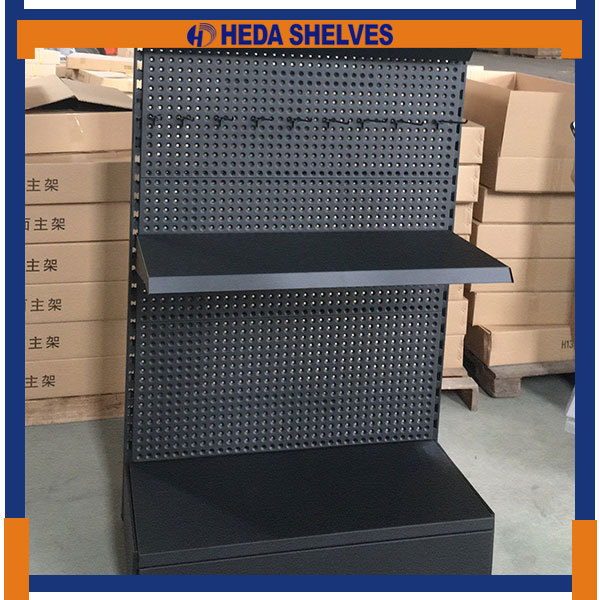

This factory view shows the central merchandise area with multiple sections of black round-hole pegboard. A flat black shelf extends forward from the panel, while the lower platform creates a separate merchandise position. The photograph also shows the vertical support frame and the joints between pegboard sections.

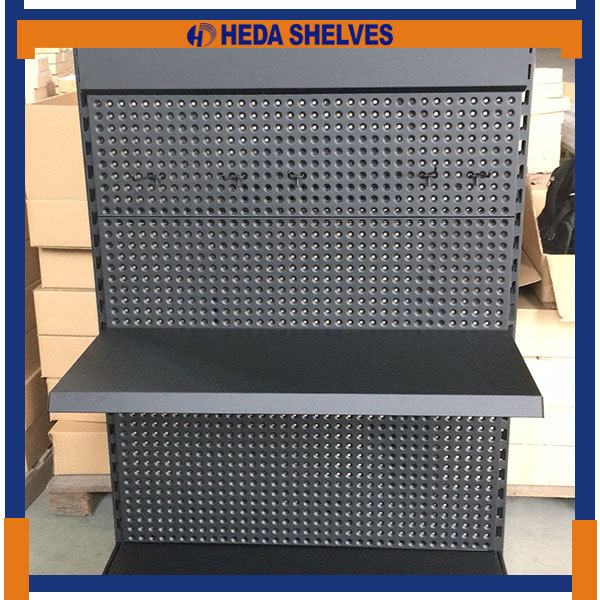

The closer front photograph makes the regular round-hole pattern easy to identify. It also illustrates the shelf projection relative to the pegboard and the metal side upright. The vertical frame includes a series of mounting openings, but adjustment positions and accessory compatibility must be confirmed technically.
PBDS01 is a single-sided freestanding display built around a vertical perforated backboard and horizontal merchandise surfaces. Its black finish and straightforward structure make it suitable for discussing a range of custom hardware display applications.
The photographed model has one projecting middle shelf and one lower display platform. Additional shelves, hook sets, baskets or alternative panels should not be assumed to be included without project confirmation.
The black upper panel projects forward at an angle above the pegboard surface. It provides a separate area that can be considered for project-specific brand artwork. The photographs do not establish built-in illumination.
The main vertical display surface uses regularly spaced circular perforations. Compatible hooks and accessories may be selected for hanging suitably packaged hardware merchandise.
A wide flat shelf projects forward from the pegboard. It provides a horizontal product presentation position separate from the hanging-display surface. Shelf loading and depth require confirmation.
The black base includes an open upper platform and a raised front edge. This forms a second horizontal display position beneath the middle shelf. It should not be described as an enclosed storage cabinet.
The factory photographs show vertical metal members with mounting openings beside the black pegboard. Their connection, adjustment and load-bearing details must follow the approved construction.

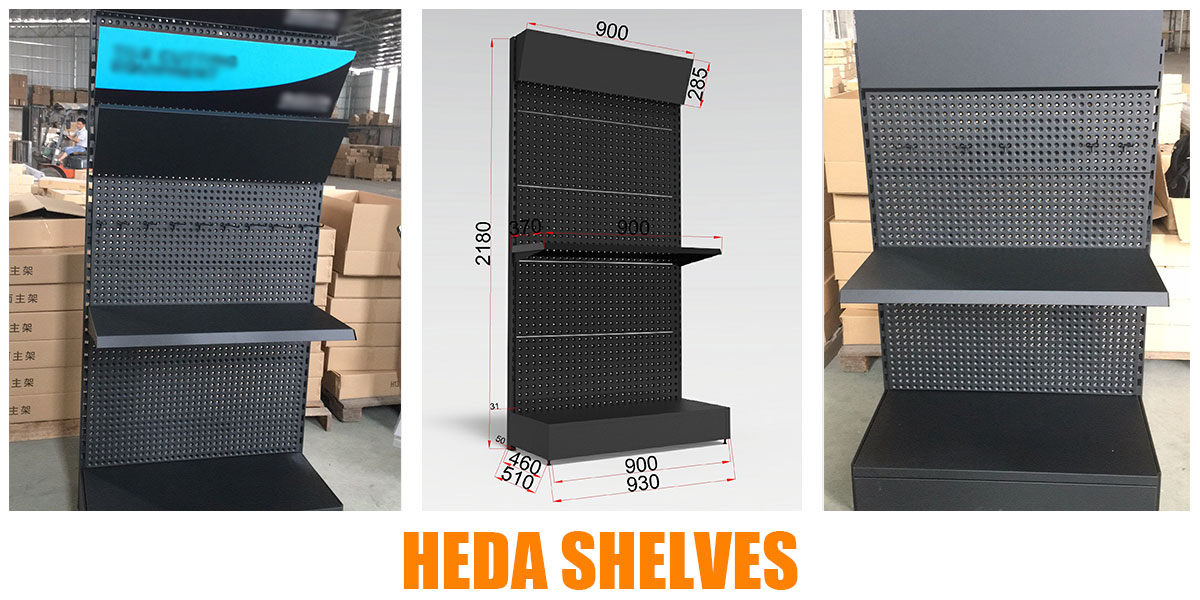

The official product collage brings together a factory display view, the dimensional illustration and a closer view of the pegboard and shelf. It also provides a branding example for the upper sign area.
Branding and image reference: One view within the collage shows a blue-and-black upper graphic. It is a photographed presentation example, not proof that an illuminated light box is included. The orange-and-blue HEDA SHELVES borders around some original photos, and the orange HEDA SHELVES text beneath the collage, are image graphics rather than physical components of PBDS01.
Hardware retailers often need to display a combination of hanging packages and products that sit on horizontal shelves. PBDS01 provides both presentation formats, subject to the selected accessory arrangement and approved load limits.
The vertical round-hole pegboard can be paired with suitable display hooks. Product categories such as packaged tools, fasteners and hardware accessories can be organized according to the merchandise dimensions and mounting requirements.
The projecting middle shelf offers a distinct display position for suitably sized merchandise. This can complement hanging products rather than requiring every item to use a hook. Shelf capacity should be confirmed before deciding the product load.
The open base platform provides another horizontal position beneath the pegboard and shelf. A merchandise plan can allocate suitable product packages to this lower area while considering customer access, stability and approved loading.
HEDA identifies PBDS01 as a customizable hardware retail display stand. The actual photographs show the black pegboard configuration, while the original listing also includes alternative backboards, accessories, finishes and dimensions for project discussion.
The original dimensional drawing is a reference for one illustrated configuration. The product page does not establish a standard shelf loading rating or fixed manufacturing dimensions for all PBDS01 orders. Final structural materials, loading, accessory compatibility and measurements must be confirmed before production.
| Product Model | PBDS01 |
|---|---|
| Product Name | Black Pegboard Custom Hardware Display Stand |
| Display Format | Freestanding Single-Sided Retail Display |
| Main Backboard | Black Round-Hole Pegboard in the Photographed Model |
| Upper Display | Forward-Angled Black Header Panel |
| Middle Shelf | One Projecting Black Merchandise Shelf |
| Lower Display | Open Black Platform with Raised Front Edge |
| Reference Height | 2180 mm As labeled in the original illustration; not a fixed size for every order. |
| Illustrated Upper Width | 900 mm Original illustration reference only. |
| Custom Measurements | Available; subject to approved project drawing |
| Other Backboard Options | Slatwall / Gridwall / Wire Back Alternative constructions require separate technical review. |
| Hanging Accessories | 100+ Hook Styles Listed as Options Exact fitting types, loads and quantities must be confirmed. |
| Material Options | MDF Listed Applicable components must be specified. |
| Surface Treatment | Melamine Treatment Listed as an Option |
| Color & Branding | Custom Color; Logo Sticker or Printed Logo |
| Construction | Detachable Design Listed as Available |
| Packing | Carton or Customer-Specified Packing |
| Shelf Loading | To Be Confirmed According to the Selected Rack Construction |
For a useful quotation, the final display should be planned around the products being sold, their packaging and weights, the available retail space and the required appearance.
Provide the tools, fasteners or hardware accessories to be displayed, including product photos, package dimensions, weights and quantities.
Share your preferred overall height, width and depth, plus the store area where the rack will be installed. A floor plan or reference drawing is useful.
Confirm the preferred pegboard configuration, hook requirements, shelf arrangement, color finish and logo artwork. Final accessories must match the selected display panel.
Indicate the estimated order quantity, destination, packing requirements and expected project schedule for quotation and production planning.
Share your merchandise details, preferred stand dimensions, pegboard and hook requirements, branding preferences and estimated order quantity. HEDA SHELVES can review your requirements and discuss a suitable PBDS01 hardware display configuration for your retail project.
